SKY 2 - 2I640DW + Hailo-8™
Intel® Atom® Elkhart Lake 6000 Series CPU &
Pre-installed M.2 Hailo-8™ AI Accelerator
Overview
 |

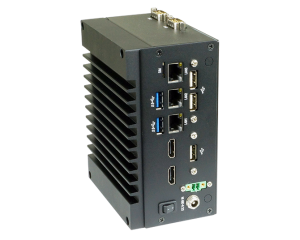

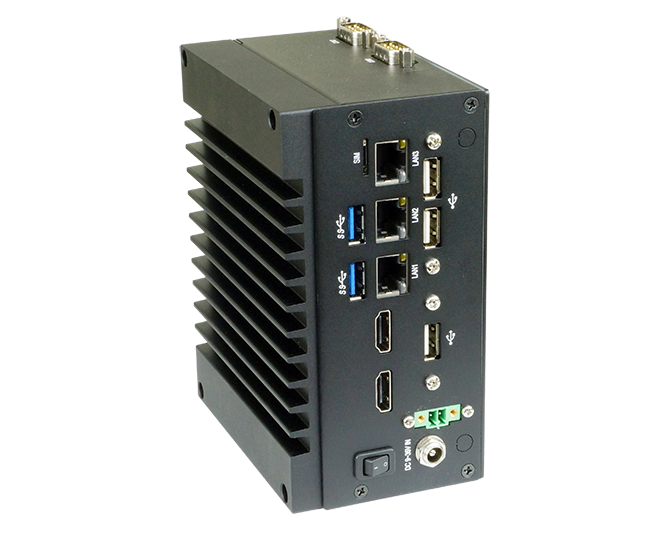

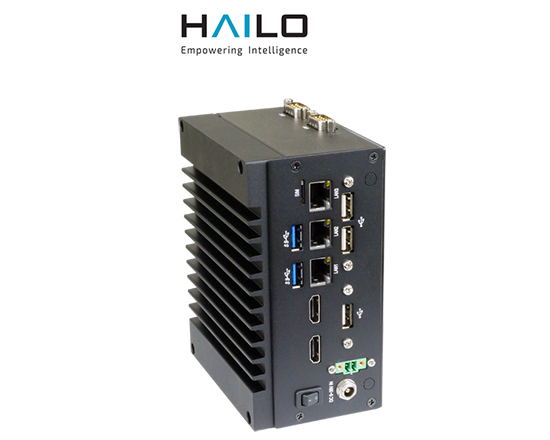

SKY 2 2I640DW is a compact fanless DIN-Rail computer with dimensions measuring just 71.9 x 111.2 x 141 mm. It features Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, AIot , edge computing and gateway.SKY 2 2I640DW is equipped with multiple I/O, such as 2 x HDMI, 3 x 2.5 Gb Ethernet ports, 2 x USB 3.0 ports, 3 x USB 2.0 ports, 2 x COM ports and optional isolated digital I/Os for industrial communication and control.
In addition, by adopting M.2 slot, the SKY 2 2I640DW can easy to install the the Hailo-8™ AI acceleration modules for AI applications. The Hailo-8™ edge AI module provides highly compatibility to LEX SKY 2 2I640DW system by maximizing the power of Edge AI and helping customers speed up time to market. The pairing of SKY 2 2I640DW with the Hailo-8™ modules allows developers to run complicated deep learning and machine vision applications with ultra-low power consumption.
Features
- Elkhart Lake ATOM® x6413E / J6412 CPU
- Pre-installed M.2 Hailo-8™ AI Accelerator
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI (OEM Option to DP)
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0, 2 x COM
- 2 x M.2, 4DI / 4DO (option), 1 x Nano SIM
| MODEL | SKY 2-2I640DW + Hailo-8™ | |
|---|---|---|
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.25 kg | |
| Mounting | DIN Rail Mount*, VESA / Wall Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| AI Accelerator | Pre-installed M.2 Hailo-8™ AI Accelerator | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x M.2 B Key Type 2242 (PCIe x2 / USB 2.0 / SATA) 1 x Nano SIM |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I225 (external) |
| USB | 2 x USB 3.0, 3 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI (OEM Option to DP) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *VESA / Wall Mounting Kit, DIN Rail Mounting Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
|
