Edge AI & Vision Learning

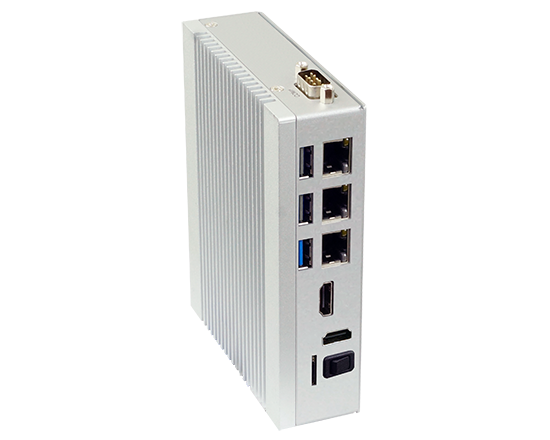

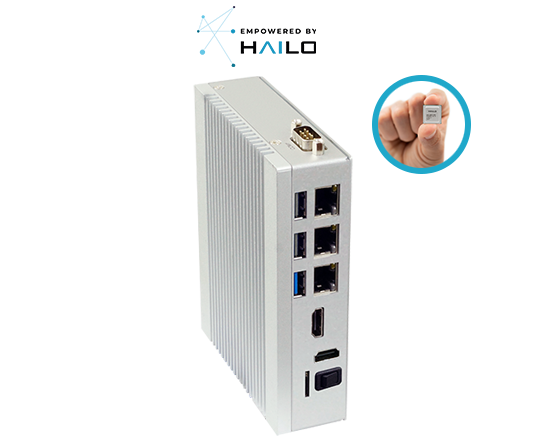

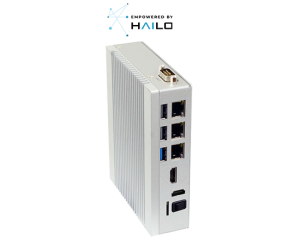

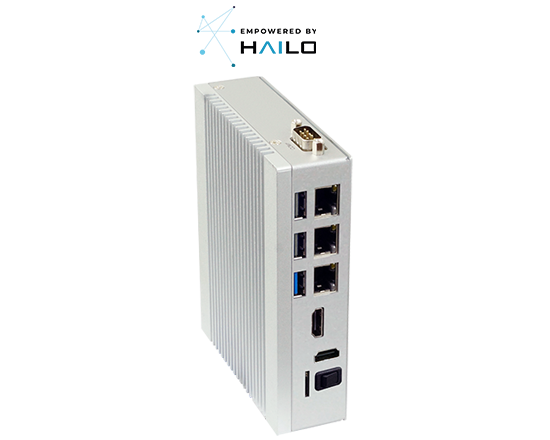

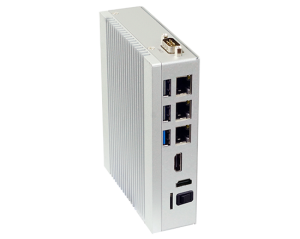

NET-III 2I640HL + Hailo-8™
Intel® Atom® Elkhart Lake 6000 Series CPU &
Hailo-8™ edge AI processor
Overview
 |
NET-III 2I640HL is an extremely compact fanless DIN-Rail computer with dimensions measuring just 40 x 110 x 135 mm. It features Intel Elkhart Lake Atom® processor & onboard Hailo-8™ edge AI processor for space-restricted applications such as factory data collection, AIot , Edge computing and gateway. NET-III 2I640HL integrated 3 x 2.5 GbE LAN,3 x USB, 2 x COM Port , 2 x HDMI (or DP) display interface and 2 x M.2 expansion slot offers the ideal platform for graphics performance with integrated IoT features, real-time performance, manageability, and security. The attributes of low power consumption and lightweight mechanical design also make NET-III 2I640HL which with onboard Hailo-8™ edge AI processor an ideal solution for projects that require space-constrained edge computing applications for intelligent robotic control, smart traffic, smart medical, visual inspection and analysis.
Features
- Elkhart Lake ATOM® X6413E / J6412 CPU CPU
- Hailo-8™ edge AI processor
- 1 x DDR4 SODIMM socket, Max. 32GB
- Multiple Independent display: 2 x HDMI (1 x OEM to DP)
- 3 x Intel 2.5 GbE LAN, 1 x USB 3.0, 2 x USB 2.0, 2 x COM
- 2 x M.2, 1 x Nano SIM
| MODEL | NET-III 2I640HL | |
|---|---|---|
| Motherboard | 2I640HL | |
| System Dimension(WxDxH) | 135W x 110D x 40H mm | |
| Weight(Incl.M/B) | 0.75 kg | |
| Mounting | DIN-Rail Mount* | |
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 32GB | |
| Storage | M.2 | |
| AI Accelerator | Hailo-8™ edge AI processor | |
| Expansion slots | 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x Nano SIM 1 x M.2 B Key Type2242 / 3042 (SATA / PCIe / USB 2.0-OEM to USB 3.0) |
|
| I/O ports | Network | 3 x Intel 2.5 GbE I226-IT |
| USB | 1 x USB 3.0, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI (1 x OEM to DP) | |
| Optional Modules & Accessory |
*DIN-Rail Mounting Kit | |
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container |
|
