DIN-Rail System
SKY 3 - 3I130DW
with 13th Gen Intel® Raptor Lake-P/U
& 12th Intel® Alder Lake-P/U Processor
Overview

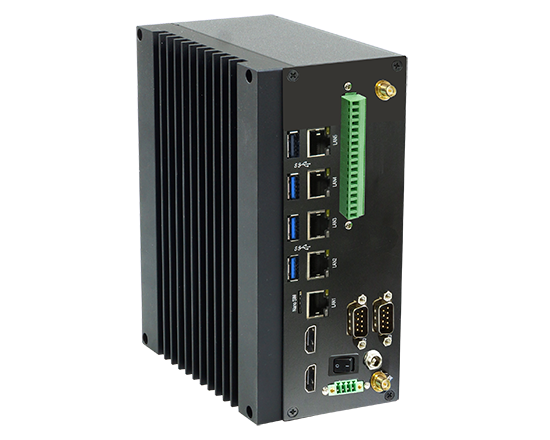

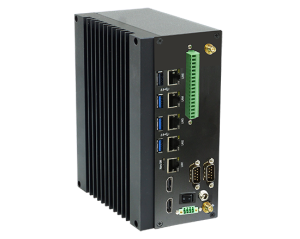

SKY 3 3I130DW is a fanless DIN-Rail computer with dimensions measuring just 183W x 142.2D x 83.9H mm. It features with 13th Gen Intel® Raptor Lake-P/U & 12th Intel® Alder Lake-P/U i7/i5/i3/Celeron processor and is designed for delivering high performance Edge AI solutions. SKY 3 3I130DW is equipped with multiple I/O: 2 x HDMI, 5 x 2.5 Gb Ethernet ports, 3 x USB 3.2 ports, 1 x USB 2.0 ports and 2 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 slots, the SKY 3 3I130DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of high performance with rugged mechanical design also make SKY 3 3I130DW an ideal Edge AI solution for visual inspection, Video analysis, smart traffic, smart factory, intelligent medical application projects that require advanced computing at harsh environments.
Features
- Intel® 13th Gen Raptor Lake-P/ Raptor Lake-U,
i7 / i5 / i3, Pentium CPU - Intel® 12th Gen Alder Lake-P / Alder Lake-U,
i7 / i5 / i3, Celeron CPU - 2 x DDR5 SODIMM (Max. 64GB)
- Multiple Independent display: 2 x HDMI
- 5 x Intel 2.5 GbE LAN, 3 x USB 3.2, 1 x USB 2.0
- 1 x Mini PCIe, 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
| MODEL | SKY 3 3I130DW | |
|---|---|---|
| System Dimension(WxDxH) | 183W x 142.2D x 83.9H mm | |
| Weight(Incl.M/B) | 2.8 kg | |
| Mounting | DIN-Rail Mount*, System Mount* | |
| CPU | 13th Gen Raptor Lake-P/ Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-P / Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-P/U ; Alder Lake-P/U SoC | |
| Memory | 2 x DDR5 SODIMM socket, Max. 64GB | |
| Storage | mSATA, M.2, HDD / SSD* | |
| Expansion slots | 1 x Full Size Mini PCIe (PCIe / USB 2.0) 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 / 3052 (mSATA / USB 3.2 GEN 1 x 1 / USB 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 1 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI | |
| GPIO | 4 x DI / 4 x DO (option) | |
| Optional Modules & Accessory |
*SATA Kit *VESA Mounting Kit *System Mounting Kit *4G / 5G, WiFi , BT, Module, Digital I/O, 2 / 4 PoE |
|
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C~70°C (under specific environmental & CPU power consumption conditions.) |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
