DIN-Rail System
SKY 2 - 2I130DW
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
Overview

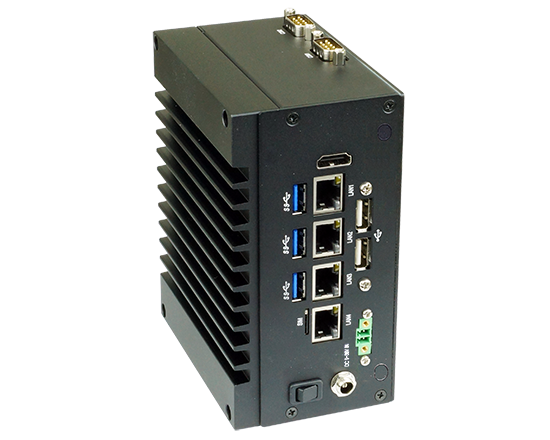

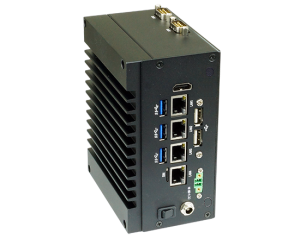

SKY 2 2I130DW is a compact fanless DIN-Rail computer with dimensions measuring just 141W x 111.2D x 71.9H mm. It features with 13th Gen Intel® Raptor Lake-U & 12th Intel® Alder Lake-U i7/i5/i3/Celeron processor and is designed for delivering high performance Edge AI solutions. SKY 2 2I130DW is equipped with multiple I/O: 1 x HDMI, 4 x 2.5 Gb Ethernet ports, 3 x USB 3.2 ports, 2 x USB 2.0 ports and 2 x COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting M.2 slots, the SKY 2 2I130DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of high performance with rugged mechanical design also make SKY 2 2I130DW an ideal Edge AI solution for visual inspection, Video analysis, smart traffic, smart factory, intelligent medical application projects that require advanced computing at harsh environments.
Features
- Intel® 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
- Intel® 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU
- 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: 1 x HDMI
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
- Lab-tested and qualified by Intel® Edge Controls for Industrial (Intel® ECI) &
Time-Sensitive Networking (TSN)
| MODEL | SKY 2 2I130DW | |
|---|---|---|
| Motherboard | 2I130DW | |
| Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.25 kg | |
| Mounting | VESA Mount* (VESA 75), DIN-Rail Mount*, Wall Mount* | |
| CPU | 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-U ; Alder Lake-U SoC | |
| Memory | 1 x DDR5 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (mSATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI | |
| DIO | 4 x DI / 4 x DO (Option) | |
| Optional Modules & Accessory |
*SATA Kit,*VESA Mounting Kit, DIN Rail Mounting Kit, *Wall Mount Kit *4G / 5G, WiFi, BT, Module, Digital I/O, 2 / 4 PoE |
|
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
