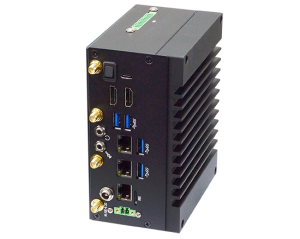

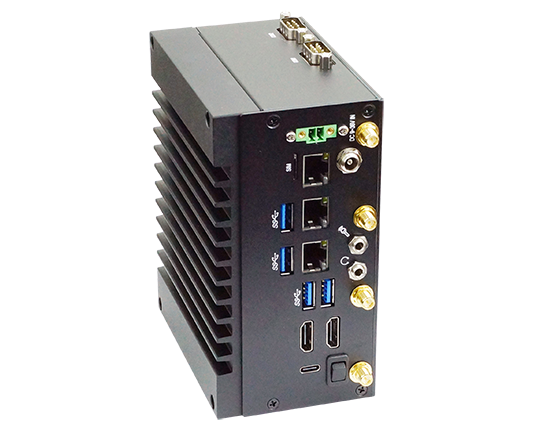

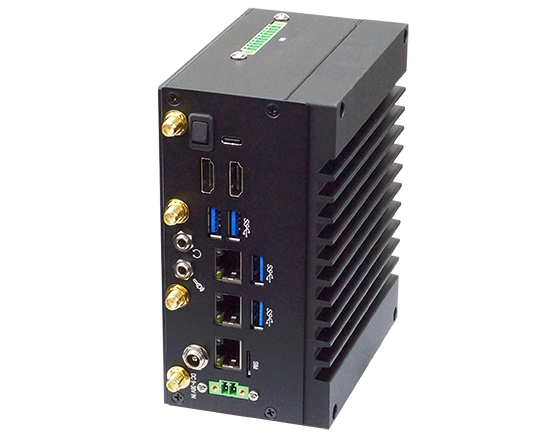

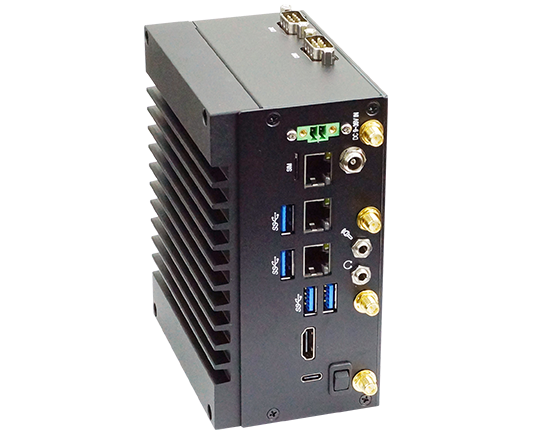

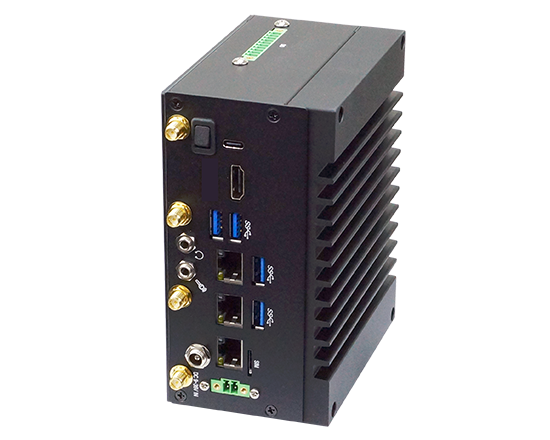

SKY2 2NOR01
Compact Fanless AI Box:
NVIDIA® Jetson Orin™ Nano / NX SoM + 2NOR01
NVIDIA® Jetson Orin™ Nano / NX SoM + 2NOR01
Overview
SKY 2 -2NOR01 is a compact DIN-Rail System with dimensions measuring at 141W x 111.2D x 71.9H mm . It features leverage the NVIDIA Jetson Orin NX / Nano modules to deliver AI performance with 40 up to 100 (TOPS) at the edge which is uniquely suited to AI video compute-intensive applications.
SKY 2 -2NOR01 supports I/O including 3 x LAN, 2 x HDMI, 1 x Nano SIM, 4 x USB 3.1, 1 x Type C USB 3.1/2.0(OTG), 3 x M.2, 2 x COM , 1 x CANBus and Line-out / Mic-in for implementing AI video solutions and can fulfill requirements in various applications.
Features
- CPU Board:
NVIDIA Jetson Nano: 4 / 8GB LPDDR5, 20 / 40 TOPs
NVIDIA Jetson NX: 8 / 16GB LPDDR5, 70 / 100 TOPs - AI Accelerator: NVIDIA® Jetson Orin™ Nano / Orin™ NX
- 2 x HDMI
- 2 x 2.5GbE, 1 x GbE
- 4 x USB 3.1
- 1 x Type C USB 3.1 / 2.0 (OTG)
- Mic-in/ Line-out ; AMP 2W
- 2 x RS232 (Option RS422)
- 1 x CANBus
- 1 x M.2 M key
- 2 x M.2 B key
- 1 x SIM
- 4DI / 4DO
- Internal wafer: SPI, I²S, I²C, USB 2.0
| MODEL | SKY2 2NOR01 | |
|---|---|---|
| Motherboard | NVIDIA Jetson Orin SOM + 2NOR01 | |
| Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.25 kg | |
| Mounting | DIN Rail Mount*, VESA Mount*, Wall Mount* | |
| M.2 | 1 x M.2 M key Type 2242 (PCIe x 4), NVMe 1 x M.2 B key Type 3042 (PCIe x 1/ USB 2.0) ; WiFi / Bluetooth or PCIe 1 x M.2 B key Type 3042 (USB 3.1 / 2.0) ; 4G / 5G, GPS or USB Device |
|
| I/O ports | Network | 2 x Intel 2.5GbE I226IT ; 1 x GbE |
| USB | 4 x USB 3.1 (external) ; 1 x USB 3.1 / 2.0 (Type C, OTG) |
|
| Serial ports | 2 x RS232 (Option RS422) | |
| CANBus | 1 x CANBus | |
| Display | 2 x HDMI | |
| SIM Card | 1 x SIM | |
| DIO | 4DI / 4DO | |
| Audio | Mic-in / Line-out ; 2W Amplifier | |
| Internal I/O wafer | SPI, I²S, I²C, USB 2.0 | |
| Optional Modules & Accessory |
M.2 Module: 4G, 5G, PCIe, WiFi, GPS, Bluetooth, NVMe DIN Rail Mounting Kit, VESA Mounting Kit, Wall Mounting Kit |
|
| Power |
DC input : Wide Range +9~36V Super Cap (2S1P / 4S1P) Li-battery (2S1P / 2S3P) Pack |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
