CATEGORY
Embedded Box PC

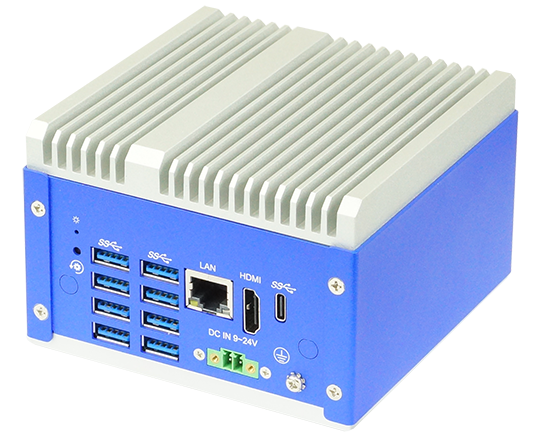

FOX - 2NOR02

Compact Fanless AI Box:
NVIDIA® Jetson Orin™ SoM + 2NOR02

Overview

The FOX 2NOR02 is an ultra-compact Edge AI system, measuring 112.5W x 112.5D x 74H mm and weighing 1225g. Powered by NVIDIA Jetson Orin NX / Nano (Super) modules, it delivers outstanding AI performance ranging from 40 to 100 TOPS at the edge. Purpose-built for compute-intensive AI video applications, the FOX 2NOR02 offers a rich set of I/O interfaces, including 1 x GbE, HDMI®, 8 x USB 3.1, 1 x USB Type-C (USB 3.1/2.0 OTG), 2 x M.2 slots, and Nano SIM (OEM)connectors. With support for wide-range DC-IN power input, the FOX 2NOR02 is the ideal choice for deploying high-performance AI video solutions and addressing the evolving demands of Edge AI applications.





Features

  • CPU Board:
  • NVIDIA Jetson Orin Nano (Super):
    4 / 8GB LPDDR5, 20 / 40 TOPs
  • NVIDIA Jetson Orin NX:
  • 8 / 16GB LPDDR5, 70 / 100 TOPs
  • 1 x HDMI®, 1 x GbE, 8 x USB 3.1, 1 x Type C USB 3.1 / 2.0 (OTG)
  • 1 x M.2 M key, 1 x M.2 B key, 1 x Nano SIM (OEM)
FOX-2NOR02 Datasheet
MODEL FOX - 2NOR02
Motherboard NVIDIA® Jetson Orin™ SOM + 2NOR02
Dimension(WxDxH) 112.5W x 112.5D x 74H mm
Weight(Incl.M/B) 1225 kg
Mounting System Mount*
CPU 8-core Arm® Cortex®-A78AE 2.0 GHz
6-core Arm® Cortex®-A78AE 1.5 Ghz
AI Accelerator NVIDIA Jetson Orin NX: 70 / 100 TOPs
NVIDIA Jetson Orin Nano (Super): 20 / 40 TOPs
Memory Jetson Orin NX: LPDDR5, 8 / 16GB
Jetson Orin Nano (Super): LPDDR5, 4 / 8GB
Storage M.2 SSD
M.2 1 x M.2 M key Type 2242 (PCIe x 4), NVMe
1 x M.2 B key Type 3042 (PCIe x 2 / USB 2.0) ;
(OEM to USB 3.1 / 2.0)
I/O portsNetwork 1 x GbE
USB 8 x USB 3.1 (external) ;
1 x USB 3.1 / 2.0 (Type C, OTG)
Display 1 x HDMI®
SIM 1 x Nano SIM (OEM)
Optional Modules
& Accessory		 M.2 Module: PCIe
System Mounting Kit
Power DC input :  DC-IN +9~24V
Operating Temp.
(100 % CPU usage)		 TBD
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
