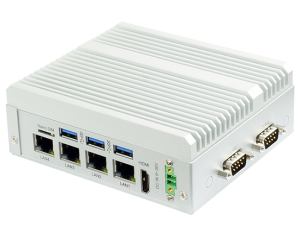

FOX - 2I130DW
with 13th Gen Intel® &
12th Gen Intel® Intel® Core™ Processor
Overview

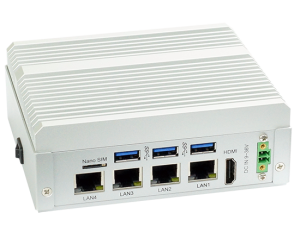

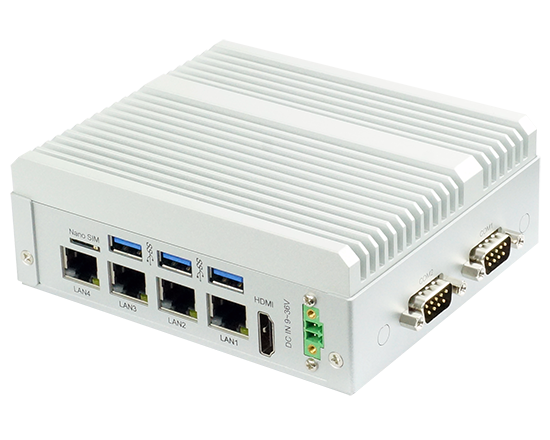

FOX 2I130DW is a compact fanless Embedded computer with dimensions measuring 132.5 W x 112.45 D x 48 H mm. It features with 13th Gen & 12th Gen Intel® Core™ Raptor Lake-U /Alder Lake-U i7/i5/i3 processor and is designed for delivering high performance Edge AI solutions. FOX 2I130DW is equipped with multiple I/O: 1 x HDMI®, 4 x 2.5 Gb Ethernet ports, 3 x USB 3.2 ports and 2 x COM ports for industrial communication and control. In addition, by adopting M.2 slots, the FOX 2I130DW can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
The attributes of high performance with ultra-compact rugged mechanical design also make FOX 2I130DW an ideal Edge AI solution for visual inspection, Video analysis, smart traffic, smart factory, intelligent medical application projects that require advanced computing at harsh environments.
Features
- Intel® Core™ 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
- Intel® Core™ 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU
- 1 x DDR5 SODIMM (Max. 32GB)
- Multiple Independent display: 1 x HDMI®
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x COM
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
| MODEL | FOX - 2I130DW | |
|---|---|---|
| Motherboard | 2I130DW | |
| Dimension(WxDxH) | 132.5W x 112.45D x 48H mm | |
| Weight(Incl.M/B) | 925g | |
| Mounting | VESA Mount * System Mount* | |
| CPU | Intel® Core™ 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU Intel® Core™ 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel®l Raptor Lake-U ;Alder Lake-U SoC | |
| Memory | 1 x DDR5 SODIMM socket, Max. 32GB | |
| Storage | M.2-SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| Optional Modules & Accessory |
*VESA Mounting Kit *System Mounting Kit *4G / 5G, WiFi , BT, Module, |
|
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +50°C (under specific environmental & CPU power consumption conditions) |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
| Certification | CE / FCC class A | |
