HAWK-3I160DW
Ultra 300 Series (Panther Lake) processors
Overview

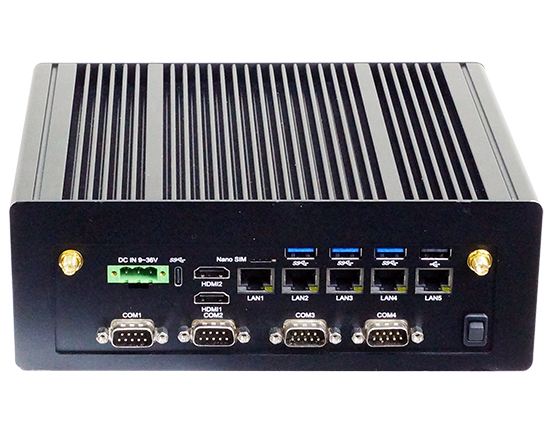

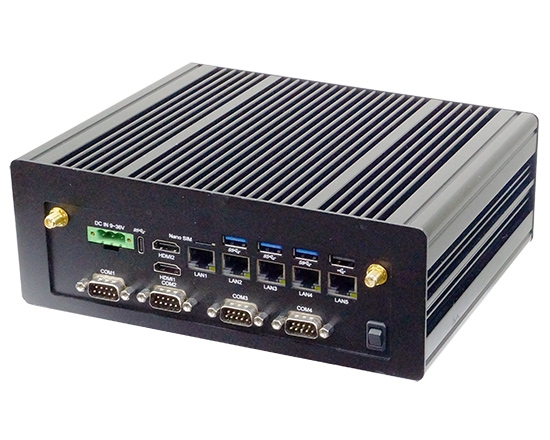

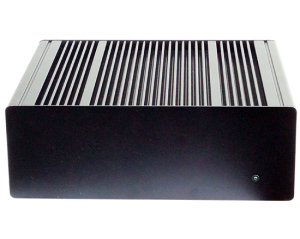

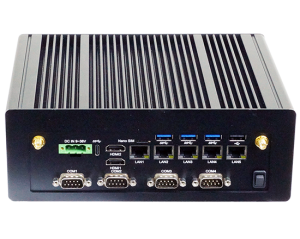

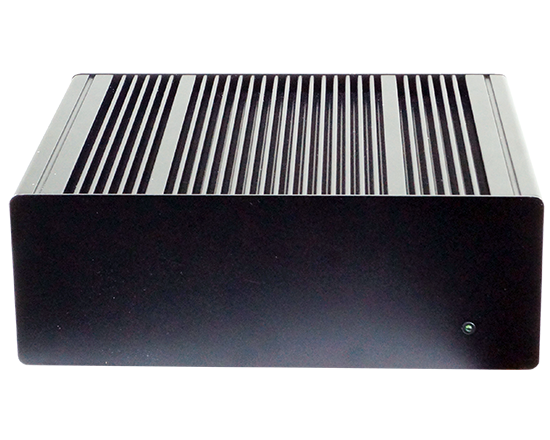

The HAWK 3I160DW is a fanless embedded computer measuring 220(W) x 172.6(D) x 80(H) mm. Powered by the Intel® Core™ Ultra series 3 (Panther Lake) processor with an integrated NPU, it features two DDR5 SO-DIMM slots supporting up to 128GB of memory and offers versatile display interfaces, including 2 x HDMI® and USB Type-C (DP Alt Mode). Designed to deliver high-performance Edge AI solutions, the HAWK 3I160DW is equipped with rich I/O connectivity, including 5 x 2.5Gb Ethernet ports, 3 x USB 3.2 ports, 1 x USB 2.0 port, and 4 x COM ports for seamless industrial communication and control. Additionally, with 3 x M.2 slots for Wi-Fi 6 and 4G/5G modules alongside 3 x High-Speed Connectors, the system enables wide-area network coverage and real-time data transmission for advanced AIoT and edge gateway applications.
Features
- Intel® Core™ Ultra 300 Series (Panther Lake) processors
- 2 x DDR5 SODIMM, Max128GB
- Multiple Independent display:
- 2 x HDMI® ; 1 x Type C DP ALT Mode
- 5 x Intel 2.5 GbE LAN, 3 x USB 3.2 , 1 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM
- High Speed Connector (1* PCIe x 2 ; 2 * PCeI x 4)
- 4 x COM, TPM 2.0, SMBus, I2C
- Wide Range DC-IN
| MODEL | HAWK-3I160DW | |
|---|---|---|
| Motherboard | 3I160DW | |
| System Dimension(WxDxH) | 220W x 172.6 D x 80H mm | |
| Weight(Incl.M/B) | 3.6kg | |
| Mounting | * System Mount *VESA Mount | |
| CPU | Intel® Core™ Ultra 300 Series (Panther Lake) processors | |
| Chipset | Revamped iGPU and integrated NPU | |
| Memory | 2 x DDR5 SODIMM, Max 128GB | |
| Storage | M.2-SSD, 1 x Mobile Rack (Option), SSD | |
| Expansion slots | 1 x M.2 M key Type 3080 (PCIe x2), Support NVMe,(OEM to Type 3042) 1 x M.2 B key Type 2242 / 3042 (USB 3.2 / USB 2.0) (OEM to Type 3052) 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 2.0) High Speed Connector: (1*PCIe x 2 ; 2*PCIe x 4) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel 2.5GbE I226-IT |
| USB | 3 x USB 3.2, 1 x USB 2.0 | |
| Serial ports | 4 x RS232 / 422 / 485 | |
| Display | 2 x HDMI® ; 1 x Type C DP ALT Mode | |
| Optional Modules & Accessory |
*SATA Kit *VESA Mounting Kit *System Mounting Kit | |
| Power | DC input : Wide Range DC IN +9~36V |
|
| Operating Temp. (100 % CPU usage) |
-20°C~45°C -20°C to +70°C |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
