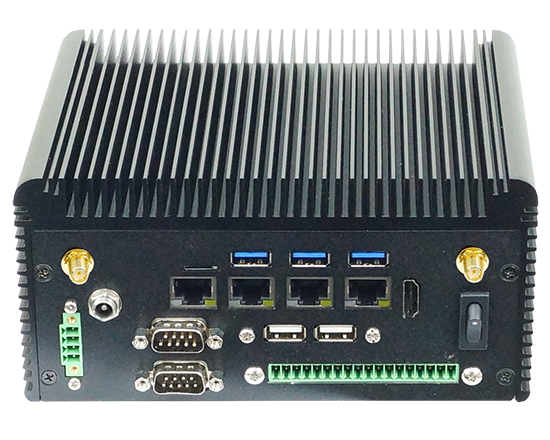

ROCK - 2I140D
with Intel® Core™ Ultra 7/5 Series processors
(Meteor Lake-U/H) (Arrow Lake-U/H)
Overview
The ROCK 2I140D is a compact, fanless embedded computer measuring 173(W) x 130(D) x 85(H) mm. Powered by Intel® Core™ Ultra 7/5 series processors (including Meteor Lake-U/H and Arrow Lake-U/H architecture), it features onboard LPDDR5 memory supporting up to 32GB and offers an HDMI® display output. Designed to deliver high-performance Edge AI solutions, the ROCK 2I140D is equipped with versatile I/O connectivity, including 4 x 2.5Gb Ethernet ports, 3 x USB 3.2 ports, 2 x USB 2.0 ports, 2 x COM ports, and 4 x DI / 4 x DO for seamless industrial communication and control. Additionally, with 2 x M.2 slots and 1 x Nano SIM slot for Wi-Fi 6 and 4G/5G module expansion, the system enables wide-area network coverage and real-time data transmission for advanced AIoT and edge gateway applications.
Features
- Intel® Core™ Ultra 200S (7/5 processors) ;
(Meteor Lake-U/H) (Arrow Lake-U/H) - Onboard 16GB / 32GB LPDDR5
- Independent display: HDMI®
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 2 x COM, 2 x M.2, 1 x Nano SIM, DI/O
| MODEL | ROCK-2I140D | |
|---|---|---|
| Motherboard | 2I140D | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.2 kg | |
| Mounting | Wall Mount *VESA Mount | |
| CPU | Intel® Core™ Ultra 200S (7/5 processors) ; (Meteor Lake-U/H) (Arrow Lake-U/H) |
|
| Chipset | Meteor Lake-U/H ; Arrow Lake-U/H | |
| Memory | Onboard 16GB / 32GB LPDDR5 | |
| Storage | M.2-SSD, HDD-SSD* 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) |
|
| Expansion slots | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA) Support NVMe |
|
| I/O ports | Network | 4 x Intel 2.5GbE I226-IT |
| USB | 3 x USB 3.2, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| SIM | 1 x Nano SIM | |
| DI/O | 4DI / 4DO (Option) | |
| I/O ports | GPS, Bluetooth, PoE, WiFi, 4G / 5G LTE, Isolated COM, battery UPS, DI/DO, Video Input |
|
| Optional Modules & Accessory |
*Wall Mount Kit, VESA Mount Kit |
|
| Power |
DC input : +12V |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +65°C | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Certification | CE / FCC class A | |
| OS Support | Windows® 10 / 11 IOT (64bit) | |
