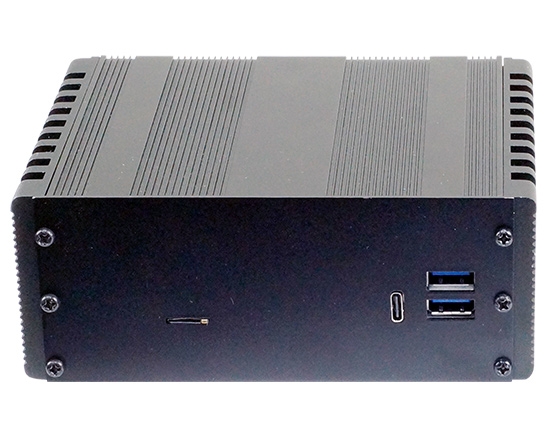

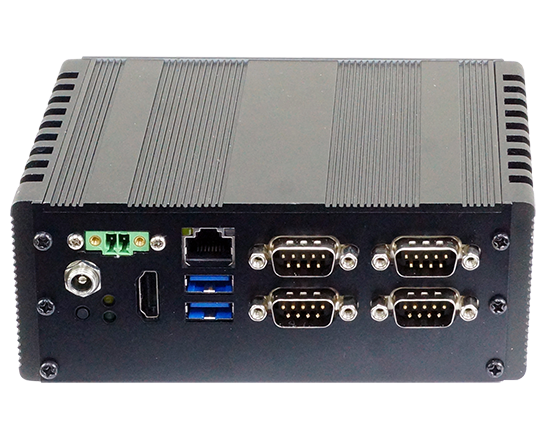

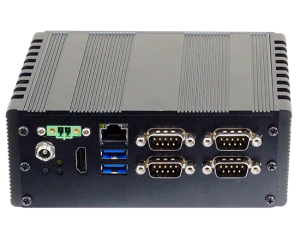

TERA 2I740AW
with Intel® ATOM® Amston Lake
x7000 series CPU
Overview
Compact Fanless Edge AI System TERA 2I740AW (145W x 102.4D x 56.5H mm) is powered by Intel Atom® x7000 Series processors (formerly Amston Lake). Featuring 4 x COM ports, 1 x 2.5GbE LAN, 4 x USB ports, 1 x USB 3.2 Type-C (DP ALT mode), 1 x HDMI®, onboard LPDDR5 memory, onboard eMMC (32-256 GB), and 2 x M.2 along with 1 x Nano SIM expansion slots, it offers the perfect platform for superior graphics performance, integrated IoT features, real-time processing, manageability, and security.
Combined with excellent CPU performance, flexible RS-232/422/485 connectivity, and a wide-range 9-24V DC-IN power input, the TERA 2I740AW is the ultimate solution for OpenVINO™-based AI accelerator platforms. It is ideal for advanced Edge AI, Intelligent Control, Factory Automation (Industry 4.0), Internet of Things (IoT), and Edge Computing applications.
Features
- Intel® ATOM® Amston Lake x7000 series CPU
- Onboard LPDDR5, Max up to 8GB / 16GB / 32GB
- eMMC 5.1 32GB~256GB
- Independent display: 1 x HDMI®
- 1 x Intel 2.5 GbE LAN, 4 x USB 3.2, 4 x COM
- 2 x M.2, 1 x Nano SIM
- 1 x USB 3.2 Type C DP ALT*
Full-featured: DP Alt Mode, USB 3.2, PD Input / Output
& Touch Screen
| MODEL | TERA 2I740AW | |
|---|---|---|
| Motherboard | 2I740AW | |
| Dimension(WxDxH) | 145W x 102.4D x 56.5H mm | |
| Weight(Incl.M/B) | 0.9kg | |
| Mounting | Wall Mount * | |
| CPU | Intel® ATOM® Amston Lake x7000 series CPU | |
| Chipset | Intel® ATOM® Amston Lake SoC | |
| Memory | Onboard LPDDR5, Max upto 8GB / 16GB / 32GB | |
| Storage | eMMC 5.1 32GB~256GB, 1 x M.2 PCIe-SSD (NVMe), 1 x M.2 SATA-SSD |
|
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (PCIe x 2 / USB 2.0) 1 x M.2 B Key Type 2242 / 3042 (SATA / PCIe / USB 3.2 / 2.0) -OEM to Type 3052 1 x Nano SIM |
|
| I/O ports | Network | 1 x Intel 2.5 GbE I226IT |
| USB | 4 x USB 3.2, 1 x USB 3.2 Type C DP ALT* | |
| Serial ports | 4 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® ; 1 x USB 3.2 Type C DP ALT* | |
| Optional Modules & Accessory |
CN064: M.2 B + M key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067: M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) |
|
| Power | DC input : Wide Range +9~24V | |
| Operating Temp. (100 % CPU usage) |
-40°C to +60°C | |
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
