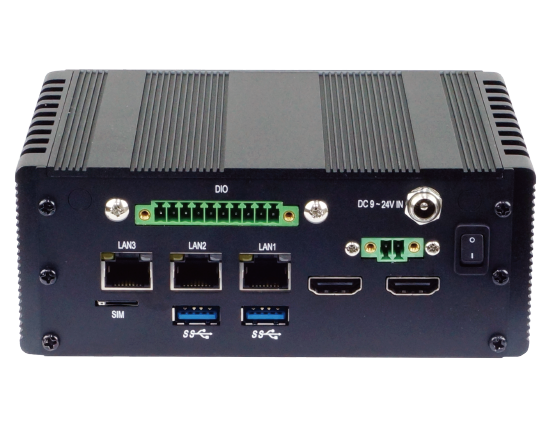

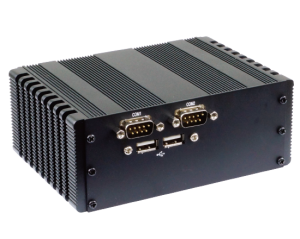

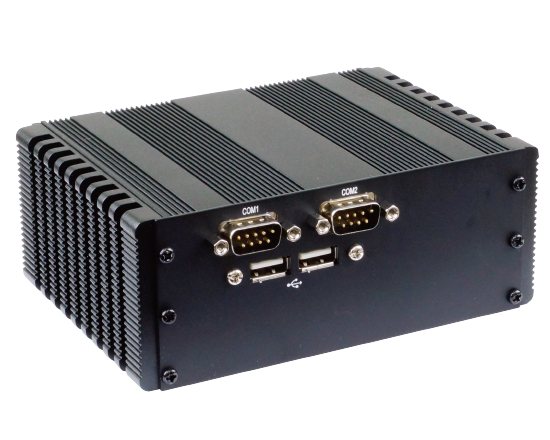

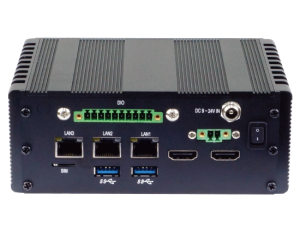

TERA - 2I642DW
with Elkhart Lake ATOM® x6413E / J6412 Processor
Overview
TERA 2I642DW is a compact, fanless Embedded computer (145W x 102.4D x 56.5H mm) powered by the Intel® Elkhart Lake Atom® processor. It supports onboard 4/8/16 GB LPDDR4 memory and 32~256GB eMMC 5.1 storage. Despite its small footprint, it delivers rich industrial connectivity, including 2 x HDMI®, 3 x 2.5 GbE, 2 x USB 3.0, 2 x USB 2.0, 2 x COM ports, and optional DI/DO expansion, while also supporting WiFi 6 or 4G/5G wireless connectivity via M.2 slots. Featuring low power consumption and an exceptional thermal design, it is the ideal edge gateway solution for space-constrained applications such as robotics, smart transportation, medical devices, and visual inspection.
Features
- Elkhart Lake ATOM® x6413E / J6412 CPU
- Onboard LPDDR4, 4GB / 8GB / 16GB
- Multiple Independent display: 2 x HDMI® (1Can OEM to DP)
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 2 x USB 2.0, 2 x COM,
eMMC 32~256GB - 2 x M.2, 4DI / 4DO (option), 1 x Nano SIM
| MODEL | TERA - 2I640DW | |
|---|---|---|
| System Dimension(WxDxH) | 145W x 102.4D x 56.5H mm | |
| Weight(Incl.M/B) | 0.88 kg | |
| Mounting | DIN Rail Mount*, VESA / Wall Mount* | |
| CPU |
Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | Onboard LPDDR4, 4GB / 8GB / 16GB | |
| Storage | M.2-SSD, eMMC 5.1 32GB~256GB | |
| Expansion slots | 1 x M.2 B Key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x M.2 B Key Type 2242 (PCIe x2 / USB 2.0 / SATA) 1 x Nano SIM |
|
| I/O ports | Network | 3 x Intel 2.5 GbE (external) |
| USB | 2 x USB 3.0, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI® (1Can OEM to DP) | |
| DI/O | 4DI / 4DO (option) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *VESA / Wall Mounting Kit, DIN Rail Mounting Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) ; -40°C by OEM Option 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
