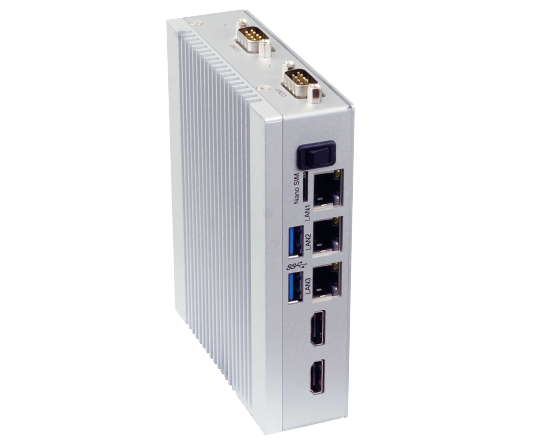

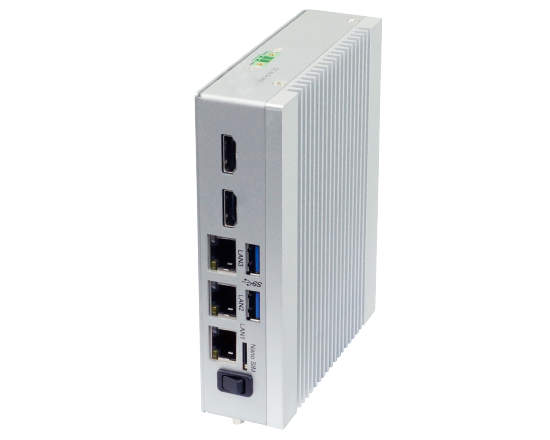

DIN-Rail System
NET-III 2I642DW
Compact Fanless Embedded Computer
with Elkhart Lake ATOM® X6413E / J6412 Processor
with Elkhart Lake ATOM® X6413E / J6412 Processor
Overview
NET-III 2I642DW is an ultra-compact fanless DIN-Rail computer (135W x 110D x 35H mm) powered by the Intel Elkhart Lake Atom® processor, supporting onboard 4/8/16 GB LPDDR4 memory and 32~256GB eMMC 5.1 storage. Despite its small footprint, it offers rich industrial connectivity—including 2 x HDMI®, 3 x 2.5 GbE, 2 x USB 3.0, and 2 x COM ports—and supports WiFi 6 or 4G/5G wireless expansion via M.2 slots. Featuring low power consumption and a lightweight design, it is the ideal edge gateway solution for space-restricted applications like robotics, smart traffic, medical devices, and visual inspection.
Features
- Elkhart Lake ATOM® X6413E / J6412 CPU CPU
- Onboard LPDDR4, 4GB / 8GB / 16GB
- Multiple Independent display: 2 x HDMI® (1Can OEM to DP)
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 2 x COM, eMMC 32~256GB
- 2 x M.2, 1 x Nano SIM
| MODEL | NET-III 2I642DW | |
|---|---|---|
| System Dimension(WxDxH) | 135W x 110D x 35H mm | |
| Weight(Incl.M/B) | 0.75 kg | |
| Mounting | DIN-Rail Mount* | |
| CPU |
Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU |
|
| Chipset | Intel Elkhart Lake SoC | |
| Memory | Onboard LPDDR4, 4GB / 8GB / 16GB | |
| Storage | M.2-SSD, eMMC 5.1 32GB~256GB | |
| Expansion slots | 1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) 1 x Nano SIM 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0 / SATA) |
|
| I/O ports | Network | 3 x Intel 2.5 GbE |
| USB | 2 x USB 3.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 2 x HDMI® (1Can OEM to DP) | |
| Optional Modules & Accessory |
CN064: M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067: M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) *DIN-Rail Mounting Kit |
|
| Power | DC input : Wide Range +9~24V AC input : External adapter 100 / 240V |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (X6413E) ; -40°C by OEM Option 0°C to +60°C (J6412) *With wide range temperature memory & storage |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT, Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
