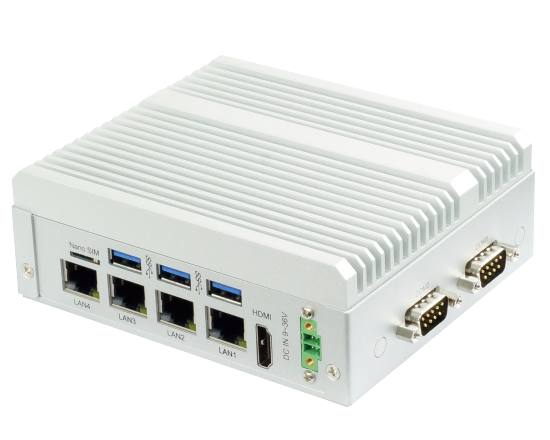

FOX - 2I132DW
Fanless Embedded Computer
with 13th Gen Intel® &
12th Gen Intel® Intel® Core™ Processor
with 13th Gen Intel® &
12th Gen Intel® Intel® Core™ Processor
Overview
FOX 2I132DW is an ultra-compact, fanless embedded computer (132.5W x 112.45D x 48H mm) powered by 13th/12th Gen Intel® Core™ i7/i5/i3 processors (Raptor Lake-U/Alder Lake-U). Supporting onboard 16/32GB LPDDR5 memory, it is engineered to deliver high-performance Edge AI computing. Despite its small footprint, it offers rich industrial connectivity—including 1 x HDMI®, 4 x 2.5 GbE, 3 x USB 3.2, and 2 x COM ports—alongside M.2 slots for high-speed WiFi 6 or 4G/5G wireless expansion. With its rugged design and advanced processing power, the FOX 2I132DW is the ideal Edge AI solution for visual inspection, video analytics, smart factories, intelligent transit, and medical applications in harsh environments.
Features
- Intel® Core™ 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
- Intel® Core™ 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU
- Onboard LPDDR5, 16GB / 32GB
- Multiple Independent display: 1 x HDMI®
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x COM
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
| MODEL | FOX - 2I132DW | |
|---|---|---|
| Motherboard | 2I132DW | |
| Dimension(WxDxH) | 132.5W x 112.45D x 48H mm | |
| Weight(Incl.M/B) | 925g | |
| Mounting | VESA Mount * System Mount* | |
| CPU | Intel® Core™ 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU Intel® Core™ 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel®l Raptor Lake-U ;Alder Lake-U SoC | |
| Memory | Onboard LPDDR5, 16GB / 32GB | |
| Storage | M.2-SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1 | |
| COM | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| Optional Modules & Accessory |
*VESA Mounting Kit *System Mounting Kit *4G / 5G, WiFi , BT, Module, | |
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +50°C (under specific environmental & CPU power consumption conditions) |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
| Certification | CE / FCC class A | |
