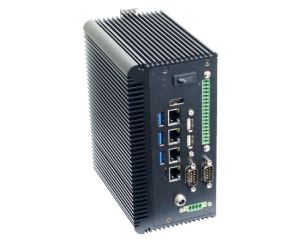

ROCK - 2I132DW
13th Gen Intel® Raptor Lake-U
& 12th Intel® Alder Lake-U Processor
Overview

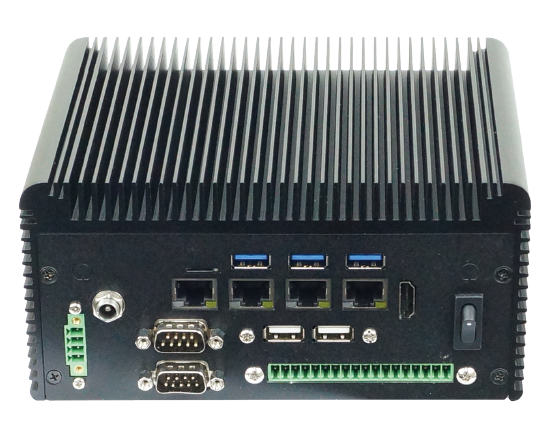

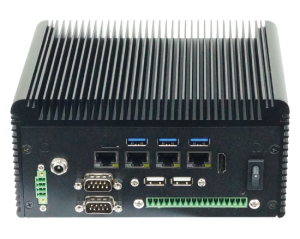

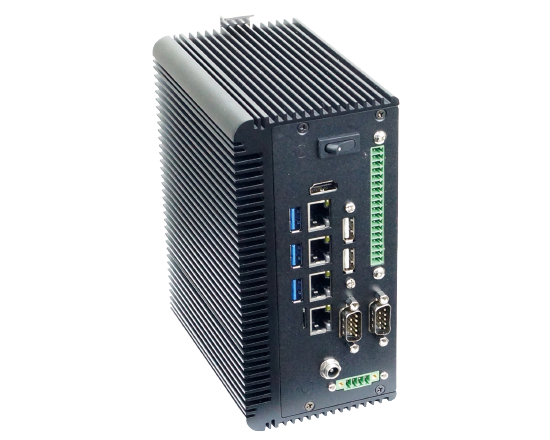

ROCK 2I132DW is a robust, fanless desktop/DIN-Rail embedded computer (173W x 130D x 85H mm) powered by 13th/12th Gen Intel® Core™ i7/i5/i3 processors (Raptor Lake-U/Alder Lake-U). Supporting onboard 16/32GB LPDDR5 memory, it is engineered to deliver high-performance Edge AI computing. Engineered with an exceptional thermal design, it delivers rich industrial connectivity—including 1 x HDMI®, 4 x 2.5 GbE, 3 x USB 3.2, 2 x USB 2.0, 2 x COM ports, and optional DI/DO—alongside M.2 slots for high-speed WiFi 6 or 4G/5G wireless expansion. With its ruggedized build and advanced processing power, the ROCK 2I132DW is the ideal Edge AI solution for visual inspection, video analytics, smart factories, intelligent transit, and medical applications in harsh environments.
Features
- Intel® 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU
Intel® 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU - Onboard LPDDR5, 16GB / 32GB
- Multiple Independent display: 1 x HDMI®
- 4 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x USB 2.0
- 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
- 2 x COM, 4DI / 4DO
| MODEL | ROCK - 2I132DW | |
|---|---|---|
| Motherboard | 2I132DW | |
| Dimension(WxDxH) | 173W x 130D x 85H mm | |
| Weight(Incl.M/B) | 2.2 kg | |
| Mounting | DIN-Rail Mount* System Mount* VESA Mounting* | |
| CPU | 13th Gen Raptor Lake-U, i7 / i5 / i3, Pentium CPU 12th Gen Alder Lake-U, i7 / i5 / i3, Celeron CPU |
|
| Chipset | Intel Raptor Lake-U ; Alder Lake-U SoC | |
| Memory | Onboard LPDDR5, 16GB / 32GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 4 x Intel 2.5GbE |
| USB | 3 x USB 3.2 Gen 1 x 1, 2 x USB 2.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| GPIO | 4 x DI / 4 x DO (Option) | |
| Optional Modules & Accessory |
*SATA Kit *DIN Rail Mounting Kit *System Mounting Kit *VESA Mounting Kit *4G / 5G, WiFi, BT, Module, Digital I/O, 2 / 4 PoE | |
| Power | DC input : 9~36V | |
| Operating Temp. (100 % CPU usage) |
-40°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above | |
| Certification | CE / FCC class A | |
