DIN-Rail System
NET-I 2I380D

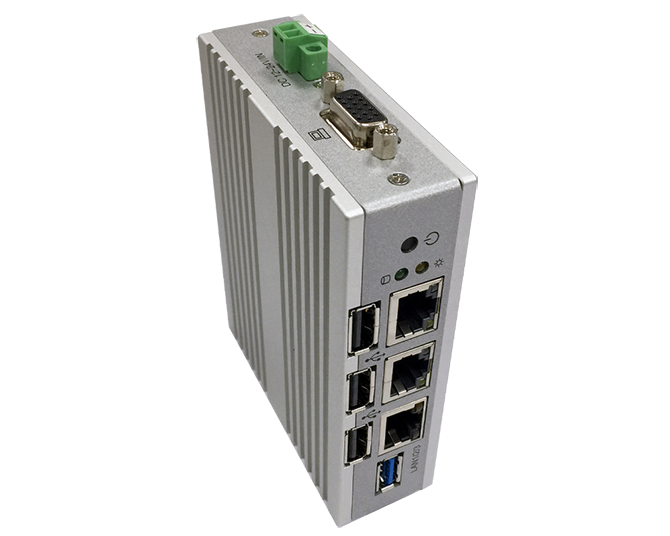

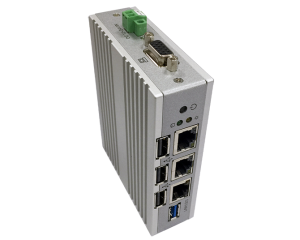

Compact Fanless Embedded Computer with
Intel® Bay Trail Processor
Intel® Bay Trail Processor
Features
- Intel® Bay Trail E3825 /E3845/J1900 CPU
- On Board DDR3L 2 / 4GB
- Independent display: VGA
- 3 x Intel GbE LAN, 1 x USB 3.0, 3 x USB 2.0, 2 x COM
- 1 x Mini PCIe, 1 x M.2 B Key
MODEL | NET-I-2I380D | |
---|---|---|
System Dimension(WxDxH) | 106W x 85D x 30H mm | |
Weight(Incl.M/B) | 0.41 kg | |
CPU | Intel® Bay Trail E3825/ E3845 /J1900 CPU | |
Chipset | Intel Bay Trail SoC | |
Memory | On Board DDR3L 2 / 4GB | |
Storage | mSATA, 1 x M.2 B Key (SATA) Type 2242 | |
Expansion slots | 1 x Full-size Mini Card (PCIe / mSATA / USB) | |
I/O ports | Network | 3 x Intel GbE |
USB | 1 x USB 3.0, 3 x USB 2.0 | |
Serial ports | 2 x RS232 / 422 / 485 | |
Display | 1 x VGA | |
Optional Modules & Accessory |
GPS, Bluetooth, WiFi, 4G LTE, Isolated COM, *VESA Mount Kit, *DIN Rail Mounting Kit * External Power Adapter |
|
Power | DC input : +12V~+24V AC input : AC-DC External adapter 100 / 240V (optional) |
|
Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA | |
Storage Temp. | -20°C to +70°C | |
OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
