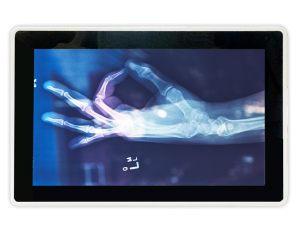

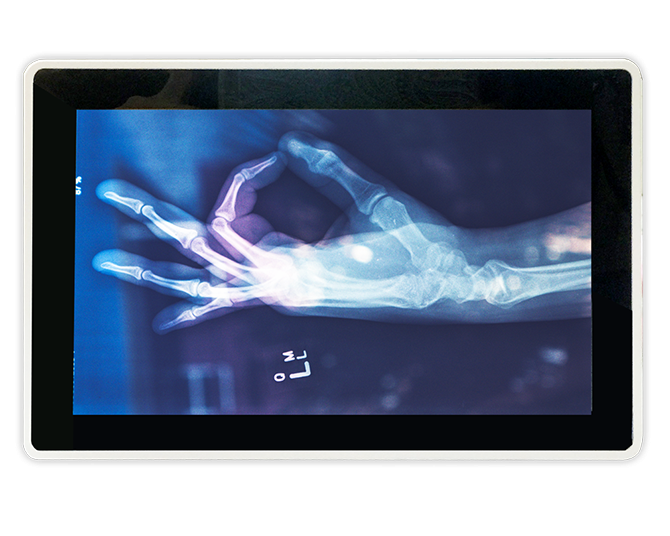

IP65 Panel PC
SHARK 7" PPC + 2I385CW
7" Fanless Panel PC with Intel® Atom™
Bay Trail Processor
Bay Trail Processor
Features
- 7" LCD with resistive touch screen
- Intel® Atom™ Bay Trail J1900 / E3825 / E3845 SoC
- DDR3L 2GB / 4GB on board
- 2 x GbE, 1 x COM, VGA, 2 x USB
- Wide Range 9~36V DC input
- Aluminum housing
MODEL | SHARK 7" PPC + 2I385CW | |
---|---|---|
Dimension (mm) | 184.7W x 122.5D x 40H mm | |
Weight | 2 kg | |
Motherboard | 2I385CW | |
CPU | Intel® Atom™ Bay Trail E3845 1.91 GHz (Quad Cord) | |
Chipset | Intel Bay Trail SoC | |
Memory | DDR3L 4GB integrated | |
Storage | mSATA, HDD / SSD* | |
Expansion slots | 1 x Full-size Mini PCIe (PCIe / USB / mSATA) 1 x Half-size Mini PCIe (USB / mSATA) |
|
I/O ports | Network | 2 x Intel GbE |
USB | 2 x USB 2.0 | |
Serial ports | 1 x RS232 | |
Display | 1 x VGA | |
Optional Modules & Function |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS *SATA Kit, *VESA Mount Kit, * External power adapter |
|
Power | DC input : +9~36V AC input : External adapter 100 / 240V, AC-DC (optional) |
|
Display Type | 7 inch 16:9 | |
Max. Resolution | 1024 x 600 | |
Viewing Angle | 75(U) 75(D) 75(R) 75(L) | |
Luminance (cd/m2) | 500 | |
Contrast Ratio | 700:1 | |
Touch Type | Resistive Touch Screen | |
Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD |
|
Storage Temp. | -20°C to +70°C | |
Relative Humidity | 95% @ 40°C, non-condensing | |
IP Rating | Front panel IP65 Compliant | |
OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
