Power Boards

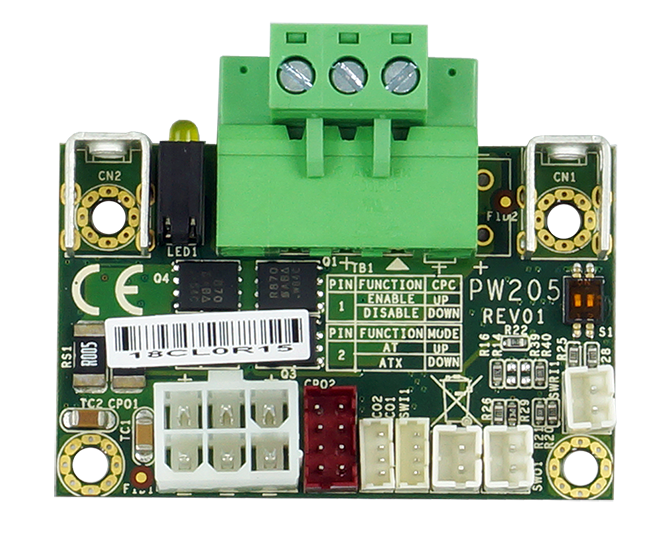

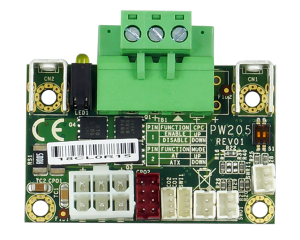

PW205
Wide range input voltage power board
with power Ignition on/off delay function
with power Ignition on/off delay function
Features
- DC Input: 9V~36V
- Output voltage: 9V~36V (By pass Vin)
- Output Current: 10A
- CPC: Power ignition on/off delay function
- Protections: SCP, OCP, OVP, SVP, UVP
Introduction:
PW205 is a wide range 9V-36V input voltage power board which supports power ignition on/off delay function (Car Power Control) for in-vehicle equipments which require wide range power input. PW205 supports adjustable
power ignition On/Off delay time.
| MODEL | PW205 |
|---|---|
| Type | DC to DC |
| Input | 3pin TB |
| Output port | 2 x 3pin ATX & 2 x 4 wafer type |
| CPC Function | SMBus wafer, SW wafer |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 55 x 35 mm |
|
|
