PoE modules

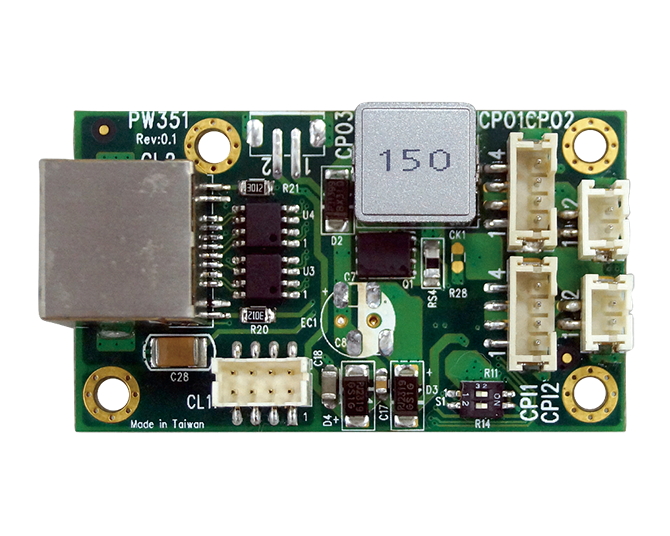

PW351
1 port PoE PSE
PW351 is ONE port PSE (Power Source Equipment) board, it complaints to IEEE 802.3 type 2.
PW351 can supply up to 25.5W to PD (Power Device), and supports both over current protection and short circuit protection.
PW351 is ONE port PSE (Power Source Equipment) board, it complaints to IEEE 802.3 type 2.
PW351 can supply up to 25.5W to PD (Power Device), and supports both over current protection and short circuit protection.
Features
- DC Input: +9V to +36V
- Output voltage: +52V
- Current: Compliant IEEE802.3 af/at type 2 ;
AT / AF type could be set by DIP Switch.
| MODEL | PW351 |
|---|---|
| Type | DC & LAN to PoE PSE |
| Input | DC & LAN |
| Output port 1 | RJ45 |
| Output port 2 | 1 x 4 & 1 x 2 pin wafer |
| Operating Temperature | -40°C ~ +65°C |
| Dimensions | 35 x 60 mm |
|
|
