Converter Board
CN053

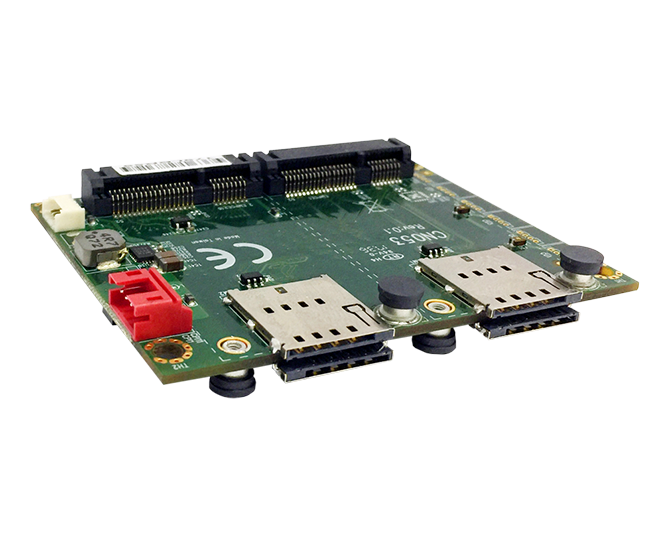

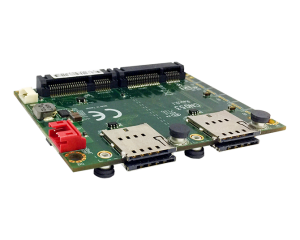

USB to 4 x Mini PCIe (USB) + 4 x SIM expansion board
Features
- 4 ports Mini PCIe slot with 4 x Micro SIM cards push-push.
- Support Maximum 3.3V / 3A for each Mini PCIe slot.
- 1 x USB 2.0 speed share to 4 port Mini PCIe slot. (By build-in USB2.0 Hub)
- 4 ports Mini PCIe slot reset pin control by SMbus.
- 4 x USB 2.0 independent speed to 4 port Mini PCIe slot. (OEM)
Introduction:
Base on the USB Hub concept, CN053 converts motherboards' USB 2.0 signal to 4 x Mini PCIe slot, Compliant to the USB 2.0 specification. Supports High-Speed (480 Mbps), Full-Speed (12 Mbps), (share one USB 2.0 bandwidth) for achieving the purpose of expanding of Mini PCIe slot.
4 x Mini PCIe Slot support only USB 2.0 mini card signal & built with 4 x Micro SIM socket which supports 4G / LTE modules. Each Mini PCIe slot can support maximum power consumption of 3.3V / 3A. In addition to above, CN053 can support one-to-one independent bandwidth by OEM.
MODEL | CN053 |
---|---|
Function | 4 Ports Mini PCIe slot |
Interface | USB 2.0 |
SIM | 4 Micro SIM (Push-Push) |
USB Connector type | 1.25 pitch 1x4pin (CPI3) |
DC Input Voltage | DC 12V |
DC in Connector type | 2.0 pitch 1x4pin (CPI2) |
Operating Temperature | -40°C ~ +85°C |
Dimensions | 75 x 57 mm |
