CATEGORY
Networking / Communication

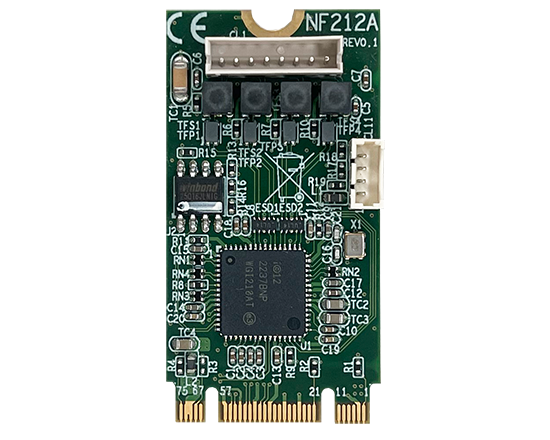

NF212A

M.2 B+M key 2242 PCIe to 1 Port 10 / 100 / 1000 LAN board

Features

  • Uses Intel I210-IT LAN chipset for PCIe x 1 V2.1 interface.
  • I210-IT for -40 to 85 °C industrial temperature.
  • Flow control support: send / receive PAUSE frames
    and receive FIFO thresholds.
  • IEEE 802.3az Energy Efficient Ethernet (EEE).
  • IEEE 802.1q VLAN support.
  • Audio-video bridging (AVB) support.
  • IEEE 1588 / 802.1AS precision time synchronization.
  • IEEE 802.1Qav traffic shaper (with software extensions).
  • Jumbo frames size 9.5KB.
  • Interrupt moderation, VLAN support, IP checksum offload.
  • PCIe OBFF (Optimized Buffer Flush / Fill)
    for improved system power management.
  • Four transmit and four receive queues.
  • RSS and MSI-X to lower CPU utilization in multi-core systems.
  • Advanced cable diagnostics, auto MDI-X.
  • ECC-error correcting memory in packet buffers.
  • Support device drivers for Windows & Linux
  • Design Guarantee 0°C ~ 70°C Industrial Temperature Range
NF212A Datasheet
MODEL NF212A
Type M.2 B+M key 2242 PCIe
to 10 / 100 / 1000 LAN
Input I/F PCIe Gen2 x 1
Output I/F 1 x 8pin wafer connector
Operating Temperature -40°C ~ +85°C
Dimensions 22 x 42 mm
