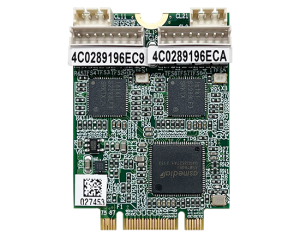

NF226B
M.2 B+M key 3042 PCIe to 2 Port 2.5GbE LAN board
Features
- Uses Intel I226IT LAN chipset for PCIe Gen2 x 1 V3.1 interface.
- I226IT Extended temperature: -40°C to +85°C
- Flow control support: send / receive PAUSE frames
and receive FIFO thresholds - IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.1q VLAN support
- Audio-video bridging (AVB) support
- IEEE 1588 / 802.1AS precision time synchronization
- IEEE 802.1Qav traffic shaper (with software extensions)
- Jumbo frames size 9.5KB
- Interrupt moderation, VLAN support, IP checksum offload
- PCIe OBFF (Optimized Buffer Flush / Fill) for improved system power
management Four transmit and four receive 4 queues of per port. - RSS and MSI-X to lower CPU utilization in multi-core systems
- Advanced cable diagnostics, auto MDI-X
- Vital Product Data (VPD). VPD Size 1024B
- ECC-error correcting memory in packet buffers
| MODEL | NF226B |
|---|---|
| Type | M.2 B+M key 3042 PCIe to 2 port 2.5GbE LAN |
| Input I/F | PCIe Gen2 x 1 |
| Output I/F | 2 1 x 8 pin wafer connector |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 30 x 42 mm |
