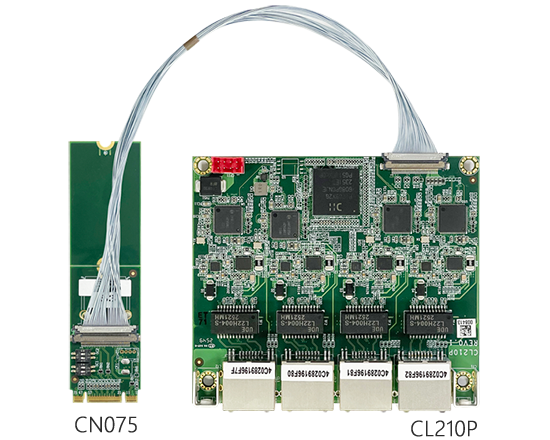

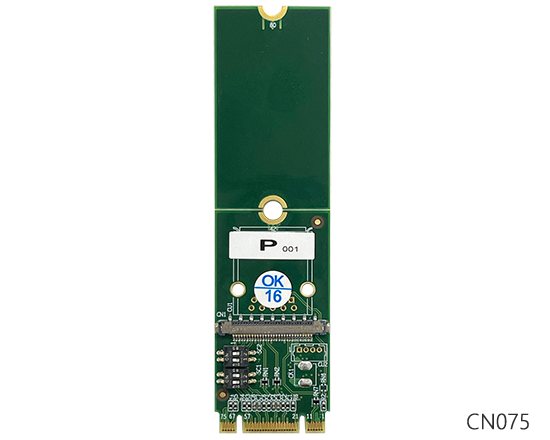

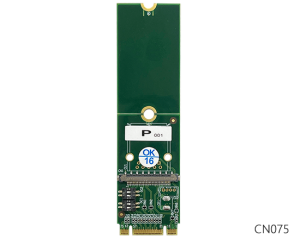

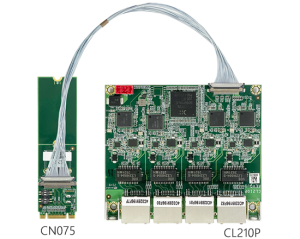

CL210P + CN075
M.2 B+M Key 2280, PCIe x 4 to 4 port PSE LAN, I210-IT
Features
- 4 Independent Gigabit Ethernet ports (Intel® i210-IT)
- IEEE802.3 AF for Power over Ethernet
- PCI Express switch PI7C9X2G608GPCNJE
of PCI Express Gen 2 switching - Supports Jumbo frame 9.5kB and link aggregation
- Supports 12 VDC AT/ATX input power boost up
to max 25 watts at 52 VDC per PoE - Port, total power 60W
| MODEL | CL210P + CN075 |
|---|---|
| Type | M.2 B+M Key 2280, PCIe x 4 to 4 port PSE LAN, I210-IT |
| Interface | 30 pin SSL connector |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 93 x 80 mm (CL210P) 22 x 80 mm (CN075) |
