DIN-Rail System

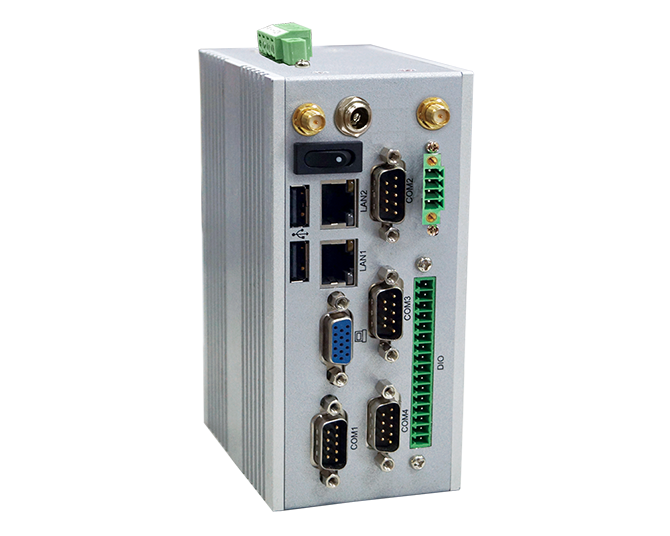

MIRO 2 - 2I385CW (2 Layer)

Compact Fanless Embedded Computer
with Intel® Bay Trail Processor

Features

  • Intel® Bay Trail CPU: AtomTM E3845 / E3825, Celeron® J1900
  • 2 / 4GB DDR3L memory on board
  • 2 x GbE, 4 x COM, VGA, 2 x USB
  • Wide Range 9~36V DC input

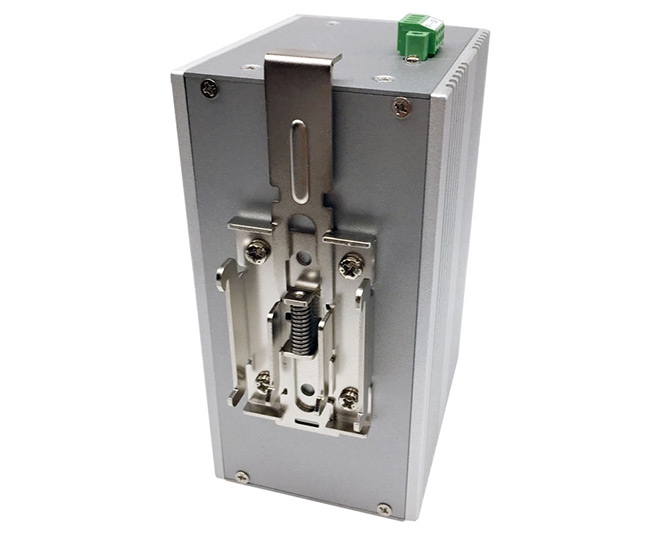

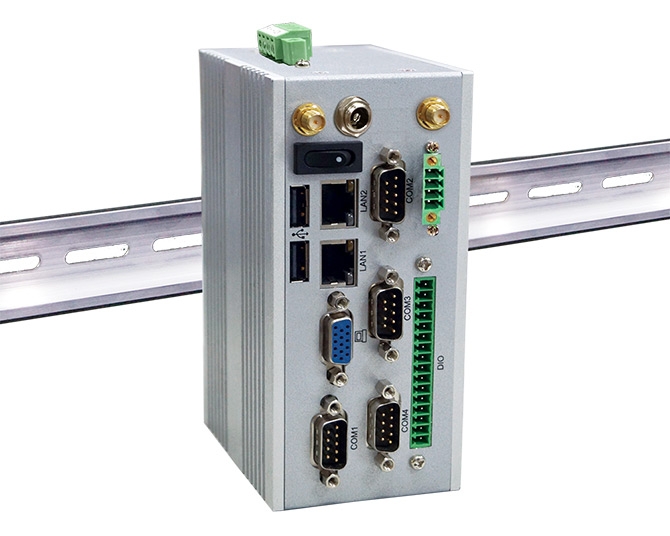

  • DIN Rail mountable (with optional Kit)
MIRO 2-2I385CW (2 Layer) Datasheet MIRO2-2I385CW_CE MIRO2-2I385CW_FCC MIRO2-2I385CW_LVD MIRO2-MIRO3_CB MIRO2-MIRO3_UL MIRO2-2L-2I385EW_CE MIRO2-2L-2I385EW_FCC MIRO2-2I385EW_LVD MIRO2-2I392CW_LVD
MODEL MIRO 2-2I385CW
(2 Layer)
System Dimension(WxDxH) 140W x 92D x 64H mm
Weight(Incl.M/B) 0.75 kg
CPU Intel® Bay Trail J1900 / E3825 / E3845 CPU
Chipset Intel Bay Trail SoC
Memory On board DDR3L 2 / 4GB
Storage mSATA, HDD / SSD*
Expansion slots 1 x Full-size Mini PCIe (PCIe / USB / mSATA)
1 x Half-size Mini PCIe (USB / mSATA)
I/O portsNetwork 2 x Intel GbE
USB 2 x USB 2.0
Serial ports 4 x COM
Display 1 x VGA
GPIO DI / DO (optional)
Optional Modules
& Accessory		 GPS, Bluetooth, WiFi, 4G LTE, DI/O, Isolated COM
*VESA Mount Kit, *DIN Rail Mounting Kit
*Wall Mount Kit,
*SATA Kit
*External Power Adapter
Power DC input : +9~36V (2I385CW) ; +12V (2I385A)
AC input : External adapter 100 / 240V
Operating Temp.
(100 % CPU usage)		 -20°C to +60°C with mSATA / SSD
0°C to +50°C with HDD
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
