디스플레이 & 오디오
eDP001

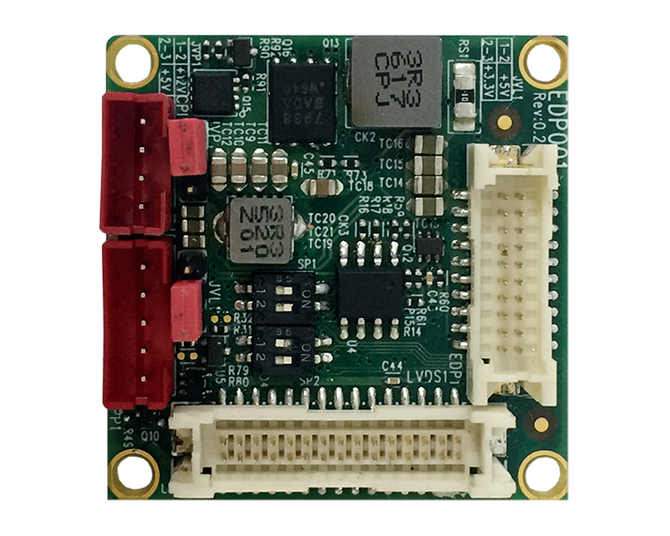

Display interface convert board: converts eDP signal to LVDS signal
특징
- Module Input voltage: +5V to +12V
- Backlight Output voltage: +5V or +12V by JVP1 selected.
- Panel Output voltage: +3.3V or +5V by JVL1 selected.
- eDP to LVDS 24bits / Dual channel output.
| MODEL | eDP001 |
|---|---|
| Type | eDP to LVDS board |
| Input | eDP |
| Output port | LVDS |
| Power | DC12V (Note*1) |
| Operating Temperature | -40°C ~ +85°C |
| Dimensions | 35 x 35 mm |
