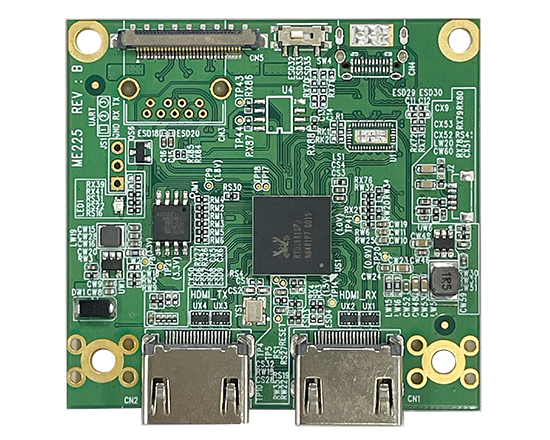

영상 캡처 카드

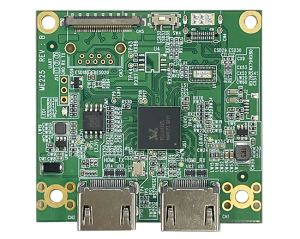

ME225-S

HDMI video capture card
High Speed Micro Coaxial Cable

특징

4K@60 HDR input and pass-through for superior video quality.
4K@60 MJPEG and 4K@30 RAW capture, offering versatile recording options.
HDMI 2.0 variable refresh rate (VRR) support for smoother and more fluid video.
Built-in hardware deinterlacing and scaling to
enhance video clarity and performance.
UVC-based driver, ensuring easy plug-and-play compatibility across most systems.
Compatible with OBS software, granting quick access to streaming
and recording tools.
HDCP compliant, ensuring support for protected content and secure transmission.

ME225-S Datasheet

MODEL

ME225-S

Interface

High Speed Micro Coaxial Cable

HDMI Input

HDMI 2.0 (up to 4k@60 HDR)

Video pass-through

HDMI 2.0 (up to 4k@60 HDR)
2160p60/1440p144/1080p240

Input & pass-through Resolution

3840 x 2160p 60/50/30/25/24Hz Resolution
2560 x 1440p 50/30/25/24Hz
1920 x 1080p 120/60/50/30/25/24Hz
1920 x 1080i 60/50Hz
(can be transformed to1080p/720p/576p/480p at UVC output)
1280 x 720p 60/50Hz

Capture Resolution

USB 3.1 Gen1

NV12	YUY2
3840x2160p 30/25 fps 2560x1440p 60/50/30/25 fps 1920x1080p 120/60/50/30/25 fps 1280x720p 120/60/50/30/25 fps	2560x1440p 60/50/30/25 fps 1920x1080p 60/50/30/25 fps 1280x720p 60/50/30/25 fps
MJPEG	P010(HDR)
3840x2160p 60/50/30/25 fps 2560x1440p 120/60/50/30/25 fps 1920x1080p 120/60/50/30/25 fps 1280x720p 120/60/50/30/25 fps	1920x1080p 60/50/30/25 fps 1280x720p 60/50/30/25 fps

USB 2.0

NV12	MJPEG
1280x720p 30/25 fps 720x576p 50/25 fps 720x480p 60/30 fps 640x480p 60/30 fps	1920x1080p 60/50/30/25 fps 1280x720p 60/50/30/25 fps 720x576p 50/25 fps 720x480p 60/30 fps 640x480p 60/30 fps

HDMI Color format

RGB/YUV444/YUV422/YUV420

UVC Output

Format :
NV12, YUY2, MJPEG, P010

Compression :
Raw data or compressed (MJPEG)

HDR :
Support 2160p 10 bit HDR recording
Support 2160p 10 bit HDR→
1080p 8 bit SDR

Audio Sampling

Input :
Support 32KHz/44.1KHz/ 48KHz (output 48KHz to UAC)

Operation Temp.

0°C ~ +70°C

Dimension

59 x 55 mm
