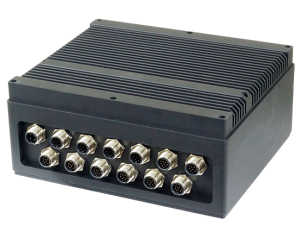

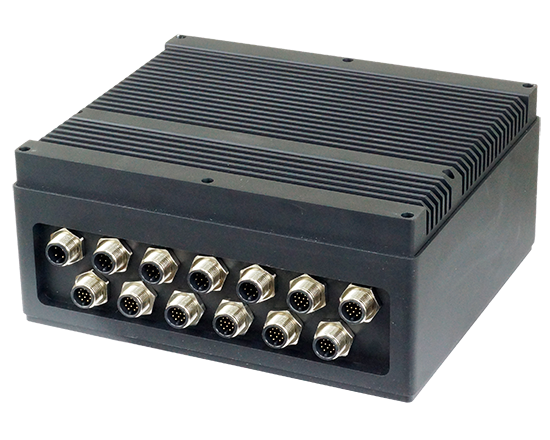

SealPro 3 - 3I140HW
with Intel® Core™ Ultra Processor
Overview
The SealPro 3-3I140HW is a compact (180 x 155 x 80 mm) fanless rugged computer, engineered for mission-critical applications in the harshest environments. Powered by Intel® Core™ Ultra 7/5 Series processors (Meteor Lake/Arrow Lake), it leverages integrated AI acceleration to deliver high-performance intelligence at the edge.
Built to withstand the rigors of Military, Railway and Heavy Industrial operations, the system features a robust IP67-rated chassis and up to 13 customizable M12 connectors. These vibration-proof interfaces—including 2.5GbE, USB, and COM ports—ensure fail-safe connectivity under extreme shock and vibration. With dual MIPI-CSI-2 D-PHY for advanced video analytics and M.2 expansion for Wi-Fi 6 and 4G/5G, the SealPro 3 ensures seamless, real-time data transmission for autonomous systems and edge gateways in any terrain.
Features
- Intel® Core™ Ultra 7/5 Series processors
(Meteor Lake-U/H) (Arrow Lake-U/H) - 2 x DDR5 SODIMM (Max. 64GB)
Multiple Independent display: - 1 x HDMI®, LVDS / eDP, 1 x Type C
- 3 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen 1x1, 3 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 BKey, 1 x Nano SIM, 4 x COM
- 1 x High Speed Connector (PCIe x2), 4DI/4DO, Audio
- 2 x MIPI-CSI-2, TPM 2.0, SMBus, I2C
| MODEL | SealPro 3-3I140HW | |
|---|---|---|
| Motherboard | 3I140HW | |
| System Dimension(WxDxH) | 180W x 155D x 80H mm | |
| Weight | 2.6 Kg | |
| Mounting | VESA Mount | |
| CPU | Intel® Core™ Ultra 7/5 Series processors (Meteor Lake-U/H) (Arrow Lake-U/H) |
|
| Chipset | Intel® Arc™ graphics ; Intel® UHD Graphics | |
| Memory | 2 x DDR5 SODIMM socket, Max. 64GB | |
| Storage | M.2-SSD, HDD / SSD | |
| Expansion slots | 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 3042 (USB3.2 Gen 1x1 / USB2.0) (OEM to Type 3052) 1 x M.2 B key Type 3042 (PCIe / SATA / USB 2.0) 1 x Nano SIM 1 x High Speed connector (PCIe x2) |
|
| Selectable max up to 13 x M12 I/O | Network | 3 x Intel 2.5GbE I226-IT |
| USB | 4 x USB 3.2 Gen 1 x 1, 3 x USB 2.0 | |
| SMBus | 1 x SMBus | |
| DIO | 4DI / 4DO | |
| DC-IN | 1 x Wide Range +9~36V DC-IN | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® ; 1 x VGA | |
| Audio | 1 x Audio | |
| Optional Modules & Accessory |
*VESA Mounting Kit Module, *DP001: eDP to VGA module |
|
| Power | DC input : Wide Range +9~36V | |
| Operating Temp. (100 % CPU usage) | -20°C ~ +70°C (under specific environmental & CPU power consumption conditions) |
|
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| Waterproof rating | IP66 / 67 | |
| Certification | CE / FCC class A | |
| OS Support | Windows 10 / 11 (64bit) Linux Ubuntu 22.04 / Kernel 5.15 |
|
