2I640DW
2 x HDMI, 3 x Intel 2.5 Gb Ethernet, 4DI / 4DO, 5 x USB, 2 x COM,
2 x M.2, 1 x Nano SIM, SMBus
概览
LEX SYSTEM 2I640DW 为搭载Intel Atom® x6000E和 Celeron® J 系列处理器的 2.5 英寸（110 x 88 毫米）嵌入式主板。 2I640DW 集成 3 个 GbE LAN、5 个 USB、2 个 COM 端口、2 个 HDMI（可OEM为 DP）显示接口和 2 个 M.2 扩展槽，提供使用者整合物联网、即时效能、管理与安全的高阶影像处理平台。 2I640DW 具有出色的处理器性能、3个千兆乙太网端口和宽电压9-24V DC-IN 功能，对应 OpenVINO 的 AI 加速器平台和高阶边缘 AI、智能控制、工厂自动化工业 4.0、物联网 (IoT) 和边缘计算应用的理想解决方案。
特点
- Intel® Elkhart Lake ATOM® x6413E / J6412 CPU
- 1 x DDR4 SODIMM socket, Max. 32GB

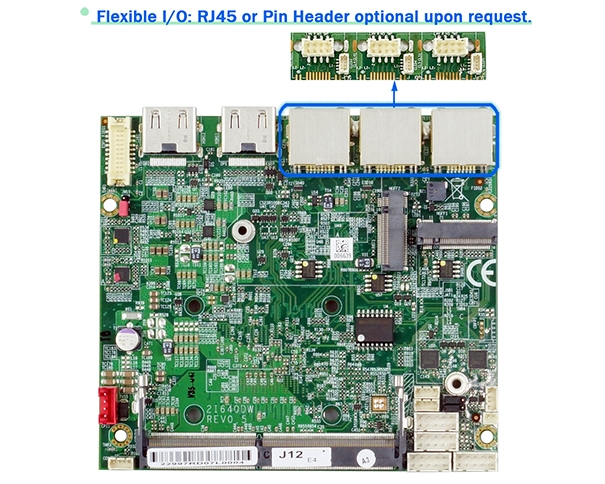

- Independent display: 2 x HDMI (OEM to DP), 1 x eDP
- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
- 2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
- TPM 2.0, SMBus
| MODEL | 2I640DW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max. 32GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD 1 x M.2 B Key Type 2242 SATA-SSD |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (OEM Option to DP), eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 3 x Intel 2.5 GbE I225 (external) |
| Expansion Interface |
1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0), 1 x Nano SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (110 x 98 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073+ME225 | Capture Card | HDMI video capture card |
| CN073+CL006 | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| M113A-S+CIO116-B | Digital I/O board | Optocoupler isolated 16DI 16DO solution (SMBus interface) |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW208 | Power Board | Wide range DC IN witn Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
