单板电脑

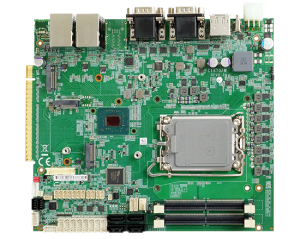

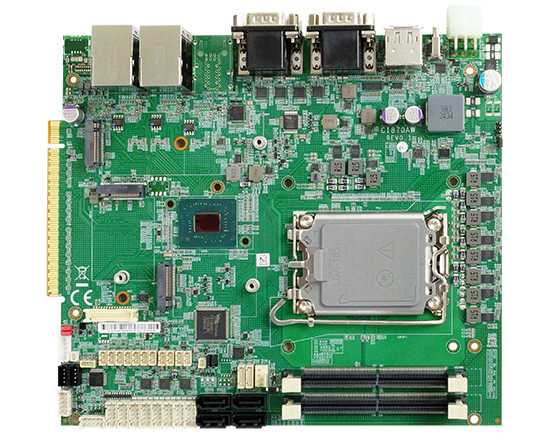

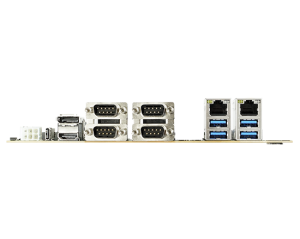

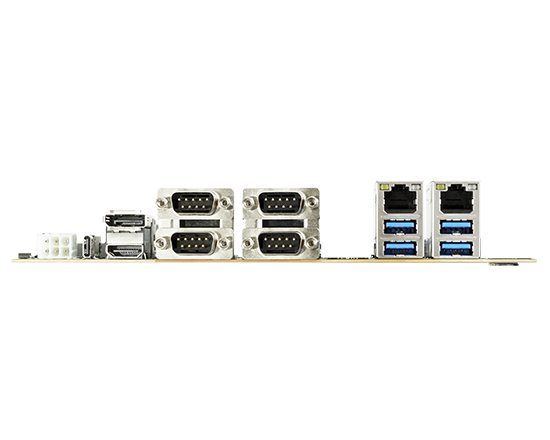

CI870AW
Embedded SBC supports Intel® Core™ Ultra 7/5 Series (Arrow Lake-S) processors
概览
LEX SYSTEM CI870AW 是一款高效能单板电脑（尺寸 186 x 217 mm），搭载 Intel® Core™ Ultra 系列处理器（Arrow Lake-S）。它配备两个 DDR5 SO-DIMM 插槽，最高支援 96 GB 记忆体，并提供多元显示输出，包括 HDMI®、DisplayPort 以及支援 DP Alt Mode 的 USB Type-C。
在连接性方面，CI870AW 整合了2个 Intel® 2.5G LAN 埠、4个串列埠、USB 3.2、USB 2.0，以及 SATA III。扩充功能则包括 PCIe 金手指、Nano SIM 插槽与多组 M.2 介面（M-Key、2 × B-Key），可支援额外储存、无线模组及 5G 连线。
凭借宽电压直流输入，CI870AW 能适应多种电源与环境，非常适合工业自动化、制造业、运输、医疗保健及其他边缘 AI 应用。
特点
- Intel® Core™ Ultra 7/5 Series(Arrow Lake-S) processors
- Intel® Q870 chipset
- 2 x DDR5 SODIMM, Max 96GB
- Multiple Independent display: 1 x HDMI®, 1 xDP, 1 x Type C
- 2 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen1x1, 4 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 BKey, 1 x Nano SIM, 1 x PCIe x16
- 4 x COM, 8DI/8DO
- TPM 2.0, SMBus, I2C, I2S
| MODEL | CI870AW |
|---|---|
| CPU | Intel® Core™ Ultra 7/5 Series (Arrow Lake-S) processors |
| MB Chipset | Intel® Q870 |
| Graphics | Intel® UHD Graphics |
| System Memory | 2 x DDR5 SODIMM, Max 96GB |
| Storage | 4 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 3080 (PCIe x4 ), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI® ; 1 x DP ; 1 x Type C DP ALT Mode |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |
| LAN | 2 x Intel 2.5GbE I226-IT (external) |
| Expansion Interface | 1 x M.2 M key Type 3080 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 2242 / 3042 (USB 3.2 Gen 1x1 + SATA / USB 2.0) (OEM to Type 3052) 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 2.0) 1 x Nano SIM 1 x PCIe x 16 golden finger |
| Expansion Module | Converter Card: CN064: M.2 B+M Keyto M.2 E Key 2230, WiFi 6 + BT |
| USB | 4 x USB 3.2 Gen 1 (external), 1 x Type C, USB 3.2 (external) 4 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (external) |
| SMBus / I2C / I2S | 1 x SMBus ; 6 x 12C ; 2 x I2S |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| WDT | Hardware Watch Dog Timer, 0~65535 sec programmable |
| Power Input | Wide Range DC IN +12~36V (Typ: +12V/+24V) |
| Dimension | LEX form factor (186 x 217 mm) ; Weight: 440g |
| Operation Temperature | -20°C~45°C (Ultra 7 265T) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Twister(L) |
| OS Support |
Windows 10 / 11 (64bit) |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN073-S3+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CN075+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN075+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN075+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN075+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
