单板电脑
2I740CW

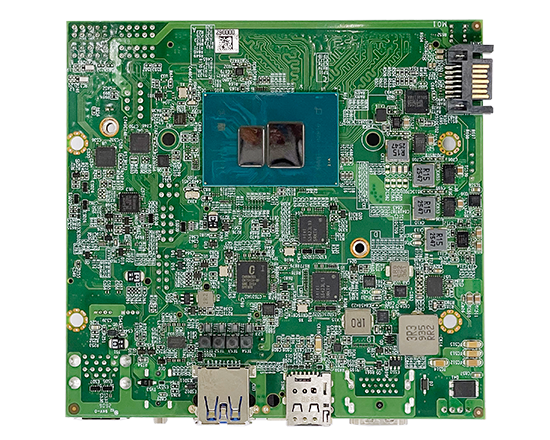

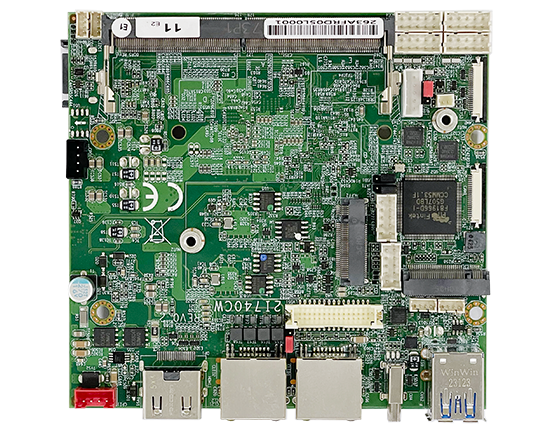

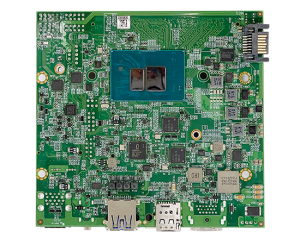

2.5" SBC supports Intel® Amston Lake ATOM® x7000 series CPU
1 x HDMI® ; 1 x USB 3.2 Type C DP ALT ; 1 x LVDS or eDP (BIOS),
2 x Intel 2.5Gb Ethernet, 6 x USB, 4 x COM, 2 x M.2, 1 x Nano SIM,
2 x MIPI-CSI, DI/O
1 x HDMI® ; 1 x USB 3.2 Type C DP ALT ; 1 x LVDS or eDP (BIOS),
2 x Intel 2.5Gb Ethernet, 6 x USB, 4 x COM, 2 x M.2, 1 x Nano SIM,
2 x MIPI-CSI, DI/O
概览
LEX System 超小型单板计算机 (108 x 102mm) – 2I740CW 采用 Intel® Atom™ x7000（原 Amston Lake）系列处理器。2I740CW 集成 2 个 2.5GbE LAN 端口、6 个 USB 端口、4 个 COM 端口、HDMI®、LVDS、1 个支持 DP Alt 模式的 USB 3.2 Type-C、2 个 MIPI-CSI 摄像头接口，以及 2 个 M.2 ，1个 Nano SIM扩展槽，是高性能图形处理、内置物联网功能、实时计算、可管理性和安全性的理想平台。
凭借低功耗设计、多个 2.5GbE 以太网端口以及宽电压 9–36V DC 输入范围，2I740CW 是基于 OpenVINO 的 AI 加速平台和先进边缘 AI 应用的优秀解决方案，包括智能控制、工厂自动化（工业 4.0）、物联网（IoT）及边缘计算等应用。
特点
- Intel® Amston Lake ATOM® x7000 series CPU
- 1 x DDR5 SODIMM, Max. 16GB
- Independent display: 1 x HDMI® ;
1 x USB 3.2 Type C DP ALT ; 1 x LVDS or eDP (BIOS) - 2 x Intel 2.5 GbE LAN, 3 x USB 3.2 (Type A),
1 x USB 3.2 (Type C) 2 x USB 2.0 - 4 x COM, 2 x M.2, 1 x Nano SIM, 2 x MIPI-CSI
- TPM 2.0, 4DI/4DO

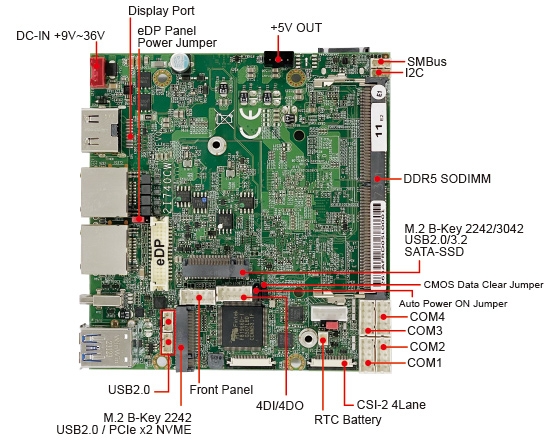

| MODEL | 2I740CW |
|---|---|
| CPU | Intel® Amston Lake ATOM® x7000 series CPU |
| MB Chipset | Intel® Amston Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.6 |
| System Memory | 1 x DDR5 SODIMM, Max. 16GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 SATA-SSD 1 x M.2 B Key Type 2242 PCIe-SSD 1 x SATA |
| BIOS | Insyde UEFI BIOS |

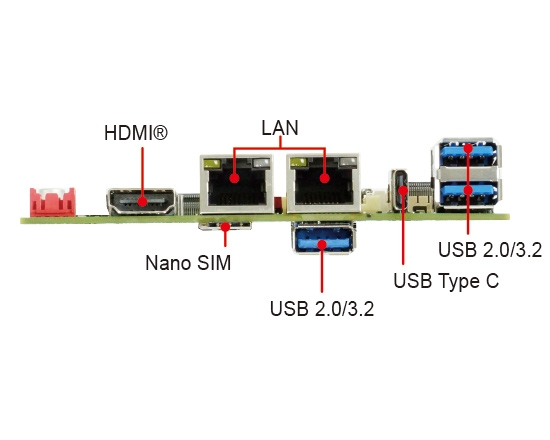

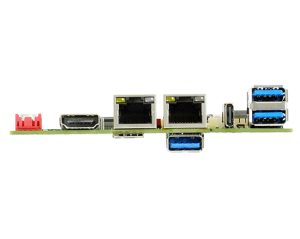

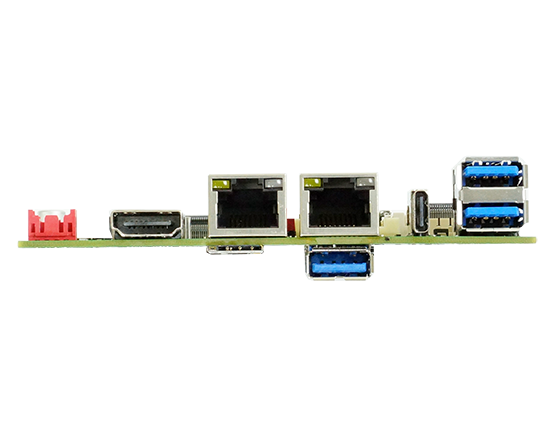

| Display | 1 x HDMI® ; 1 x USB 3.2 Type C DP ALT Mode ; 1 x LVDS or eDP (BIOS) |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |
| LAN | 2 x Intel 2.5 GbE I226 (external) |
| Expansion Interface | 1 x M.2 B Key Type2242/3042 (SATA / USB 3.2 / USB 2.0) 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x Nano SIM |
| Expansion Module | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic-in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 3 x USB 3.2 Gen 1 (Type A / external) ; 2 x USB 2.0 (internal) 1 x USB 3.2 Type C (Type C / external) |
| Serial IO | 4 x RS232 / 422 / 485 (internal, BIOS configurable ; Default: RS232) COM1~COM4 Pin9 with 5V / 12V power output (optional) |
| Camera Interface | 2 x MIPI-CSI (internal) |
| SMBus / I2C | 1 x SMBus, 1 x I2C |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~36V |
| Dimension | 2.5" Plus (108W x 102D mm) ; Weight: 100g |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: NET-II, Panel PC |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S5+CN063 | Converter Board | USB 3.0 to 4 x M.2 B Key 3042/3052 slot with 4*SIM |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN073-S3+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
請左右滑動表格
