2I810D

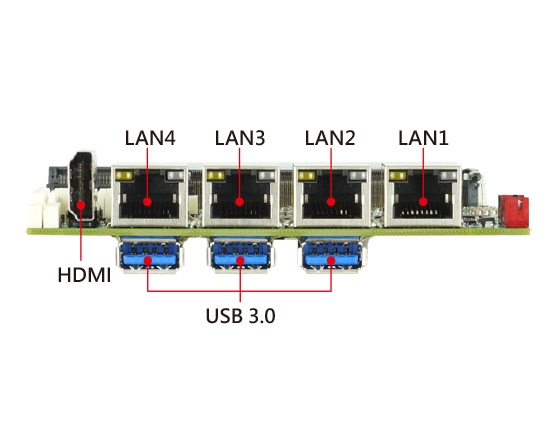

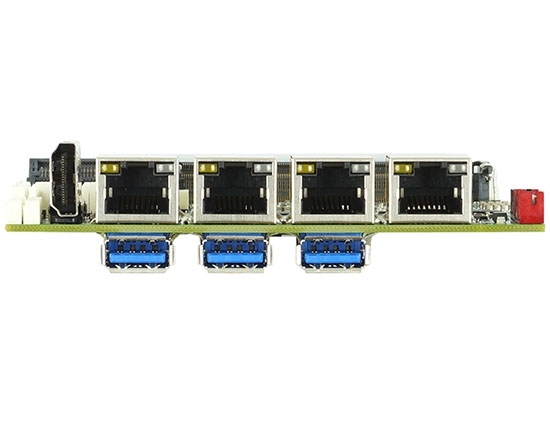

VGA, HDMI®, 4 x Intel Gb Ethernet,
4DI / 4DO, 7 x USB, 2 x COM, 2 x Mini PCIe, SMBus
Overview

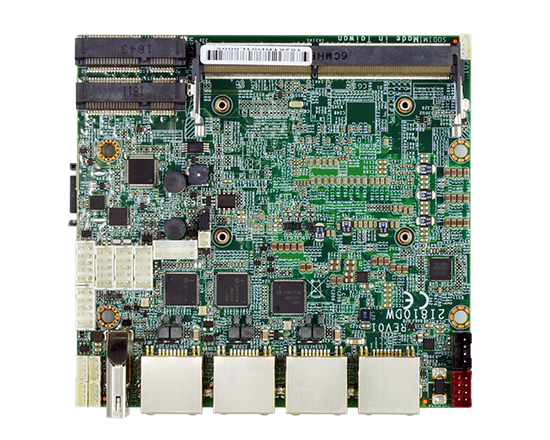

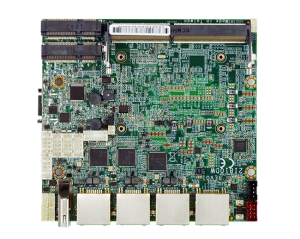

LEX SYSTEM 2I810D is the 2.5" Plus ultra compact (102 x 108 mm) SBC with 8th Gen. Intel® Whiskey Lake-U i7/i5/i3/Celeron processor, integrated 4 x GbE LAN, 7 x USB, 2 x RS232/422/485 Port and HDMI,VGA display interface that offer the ideal platforms for high performance applications in Networking, Smart Automation, Machine Vision, In-vehicle , Industry 4.0 and any compact high-performance Internet of Things (IoT) applications.
Features
|
 |
| MODEL | 2I810D |
|---|---|
| CPU | 8th Gen Intel® Whiskey Lake-U, i7 / i5 / i3 / Pentium / Celeron CPU |
| MB Chipset | Intel® Whiskey Lake-U SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 2400 MHz SODIMM, Max. 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 2 x mini card socket for mSATA |
| BIOS | AMI UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI® |
| TPM | TPM 2.0 (Option) |
| LAN | 1 x Intel GbE I219LM (external) 3 x Intel 2.5 GbE I226 (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe /mSATA/ USB 3.0 / USB 2.0) 1 x Half size Mini PCIe (PCIe / mSATA / USB 3.0 / USB 2.0) |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 3 x USB 3.0 (external) ; 4 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +12V |
| Dimension | 2.5" Plus (108 x 102 mm) ; Weight: 112g |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 8665UE) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA (L) |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT (i7 CPU only) Ubuntu 22.04 above, Fedora 36 above |
