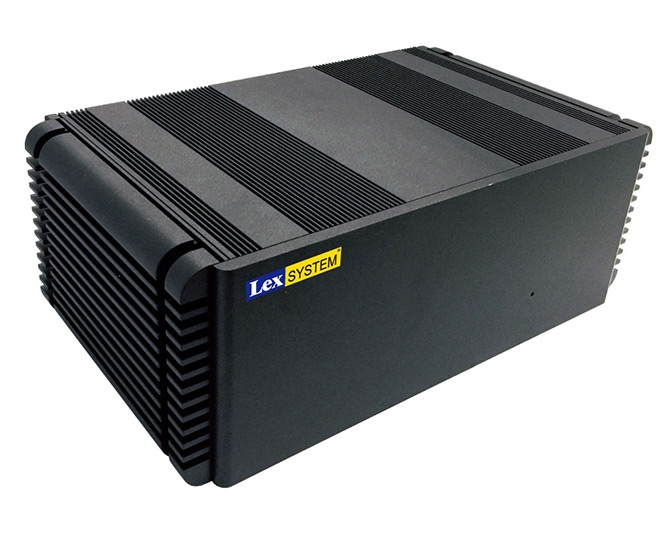

Embedded Box PC

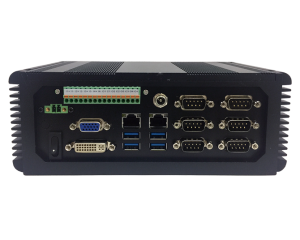

TASK - 3I385AW
Fanless Embedded Computer with
Intel® Bay Trail Processor
Intel® Bay Trail Processor
Features
- Intel® Bay Trail CPU: Celeron® J1900, AtomTM E3845 / E3825
- DDR3L SODIMM, Max. 8GB
- Independent display: VGA & DVI
- 2 x GbE, 6 x COM, 4 x USB 3.0
- 2 x Mini PCIe, 1 x SIM
| MODEL | TASK-3I385AW | |
|---|---|---|
| System Dimension(WxDxH) | 210W x 125D x 77H mm | |
| Weight(Incl.M/B) | 1.9 kg | |
| CPU | Intel® Bay Trail J1900 / E3825 / E3845 CPU | |
| Chipset | Intel® Bay Trail SoC | |
| Memory | 1 x DDR3L SODIMM socket, Max. 8GB | |
| Storage | mSATA, HDD / SSD* | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB) 1 x SIM |
|
| I/O ports | Network | 2 x Intel GbE |
| USB | 4 x USB 3.0 | |
| Serial ports | 6 x RS232 / 422 / 485 | |
| Display | VGA & DVI | |
| GPIO | DI / DO (Option) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input *SATA Kit, VESA Mounting Kit |
|
| Power | DC input : +9~36V AC input : External adapter 100 / 240V ; AC-DC 60W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
|
