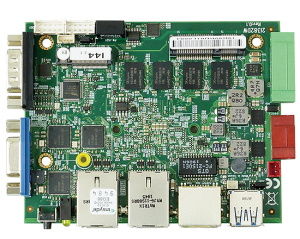

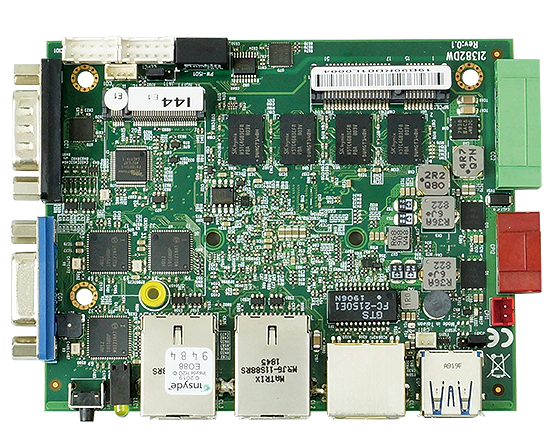

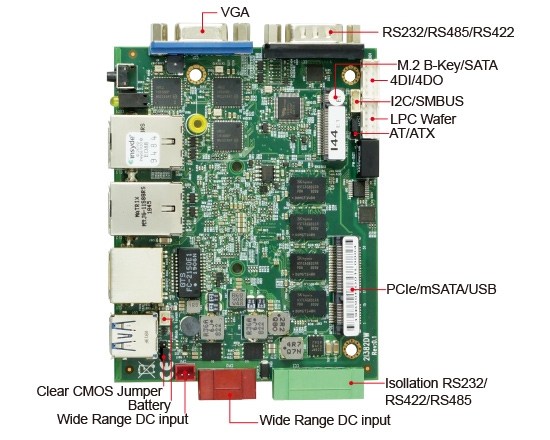

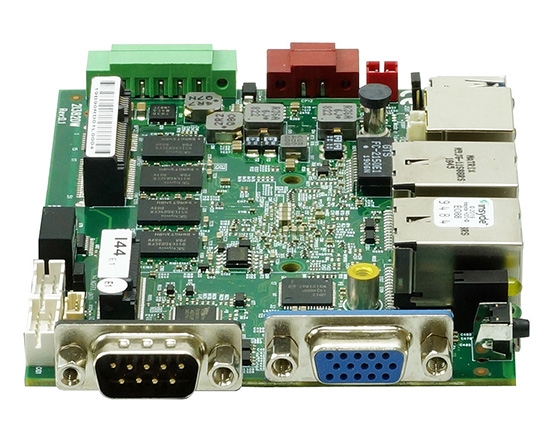

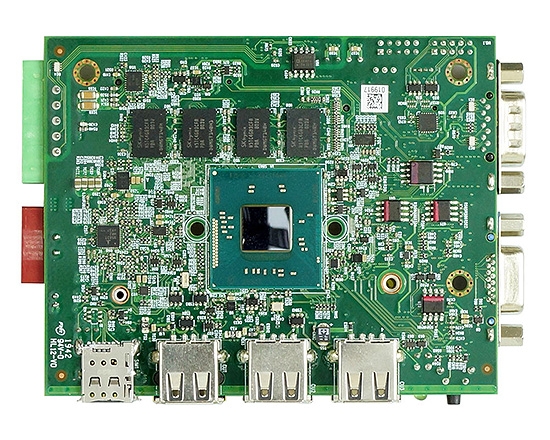

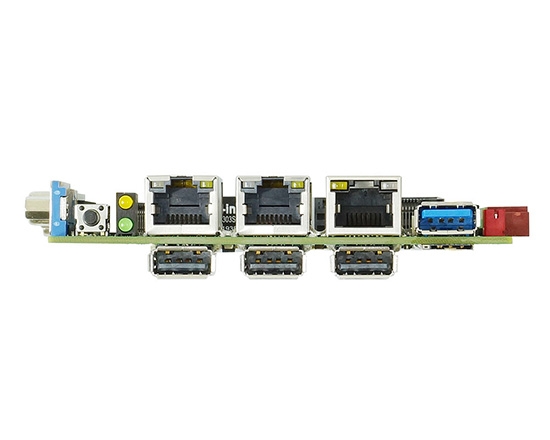

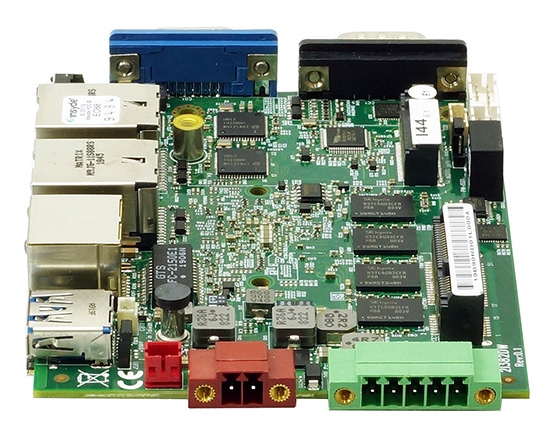

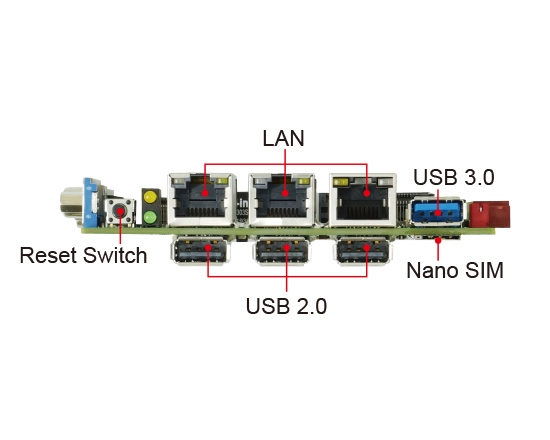

Single Board Computer
2I382DW
Pico-ITX Embedded SBC supports Intel® Bay Trail Atom / Celeron CPU,
3 x Intel Gb Ethernet, VGA, 4 x USB,
2 x COM, 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM (option), SMBus
3 x Intel Gb Ethernet, VGA, 4 x USB,
2 x COM, 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM (option), SMBus
Features
- Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) - On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
- Independent display: VGA
- 3 x Intel GbE LAN, 1 x USB 3.0, 3 x USB 2.0
- 2 x COM, 1 x Mini PCIe, 1 x M.2, 1 x Nano SIM (option), SMBus
- 4 DI / 4DO
| MODEL |
2I382DW |
|---|---|
| CPU | Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core) Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core) Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) |
| MB Chipset | Intel® Bay Trail SoC |
| Graphics | Intel Gen7 graphic engine DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration, decode: H.264, MPEG2 / 4, VC-1, WMV9. Encode: H.264, MPEG2 |
| System Memory | On Board DDR3L 1066 / 1333 MHz 2GB / 4GB |
| Storage | 1 x M.2 B Key, Type 2242 (mSATA) 1 x mini card socket for mSATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA |
| LAN | 3 x Intel GbE (external) |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Nano SIM (option) 1 x M.2 B Key, Type 2242 (SATA) |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 1 x USB 3.0 (external)-share Mini PCIe USB 2.0, 3 x USB 2.0 (external) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO | 1 x RS232 / 422 / 485 (DB9) 1 x RS232 / 422 / 485 (phoenix isolation) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +12~36V |
| Dimension | 102.35 x 81.25 mm |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |

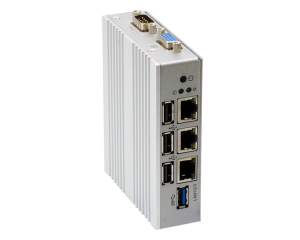

| Chassis (OEM I/O Expansion by request) | Box PC: NET-II |
