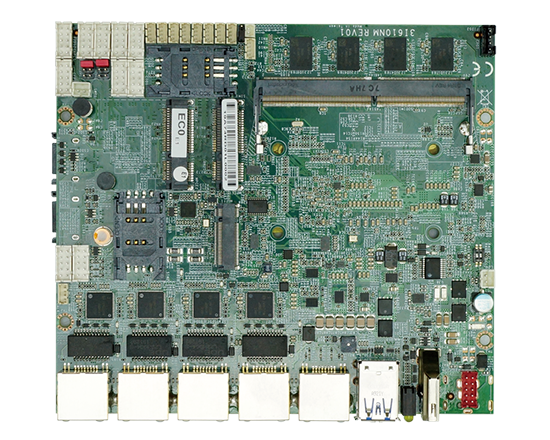

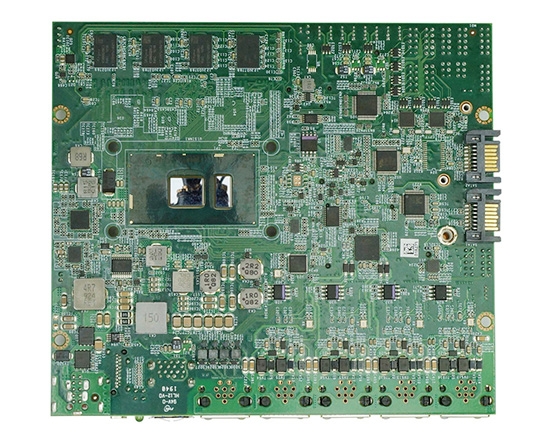

Single Board Computer
3I610NM
In-Vehicle NVR w/ 4 x RJ45 / M12 PoE, Ignition Delay on/off control
3.5" Plus SBC supports 6th / 7th Gen Intel® Skylake/ Kaby Lake U CPU

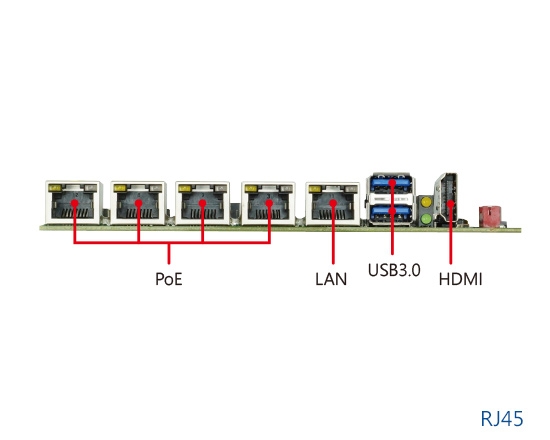

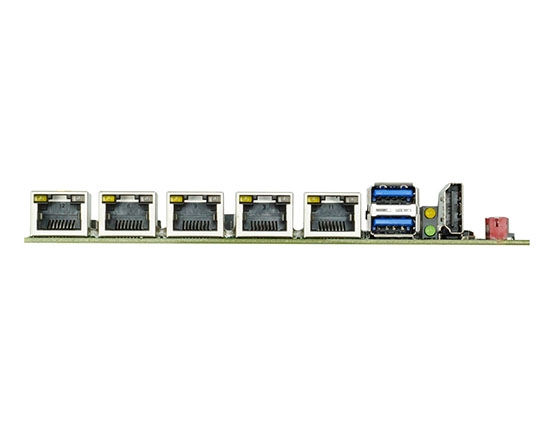

VGA, HDMI, 4 x PoE, 1 x Intel Gb Ethernet, 7 x USB
16DI / 16DO, 2 x COM, 2 x Mini PCIe, 2 x SIM, M.2, SMBus
3.5" Plus SBC supports 6th / 7th Gen Intel® Skylake/ Kaby Lake U CPU
VGA, HDMI, 4 x PoE, 1 x Intel Gb Ethernet, 7 x USB
16DI / 16DO, 2 x COM, 2 x Mini PCIe, 2 x SIM, M.2, SMBus

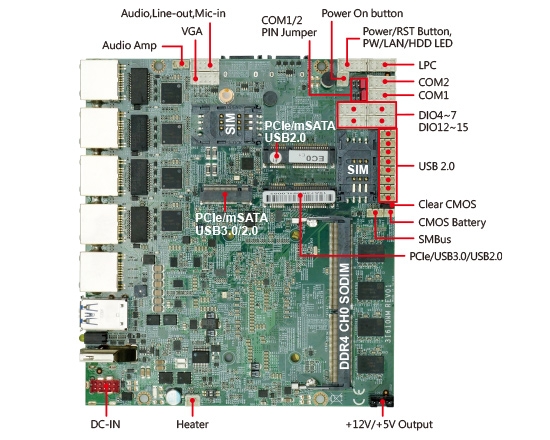

Features
- 6th / 7th Gen Intel® Skylake /
Kaby Lake U, i7 / i5 / i3 / Celeron CPU - On board DDR4 (OEM),
expand extra 32GB (max) via SODIMM - Multiple Independent display: VGA & HDMI
- 4 x PoE, 1 x Intel GbE LAN, 2 x USB 3.0, 5 x USB 2.0
- 2 x COM, 16DI / 16DO, 2 x Mini PCIe, 2 x SIM, 1 x NVME M.2
- Wide Range 9~48V DC Input, Ignition delay on/off Control
- TPM 2.0 (Optional), SMBus
| MODEL |
3I610NM |
|---|---|
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | On board DDR4 (OEM), expand extra 32GB (max) via SODIMM |
| Storage | 1 x mini card socket for mSATA 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 B key Type 3042 (PCIe x 2 / mSATA / USB 2.0 / USB 3.0) |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, 1 x HDMI |
| TPM | TPM 2.0 (Option) |
| LAN | 4 x Intel GbE (PoE) (external), 1 x Intel GbE I219LM (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / USB 2.0) 1 x Half size Mini PCIe (PCIe / mSATA / USB) 2 x SIM 1 x M.2 B key Type 3042 (PCIe x 2 / mSATA / USB 2.0 / USB 3.0) |
| Expansion Module |
Converter Card : CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN066 : Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card |
| USB | 2 x USB 3.0 (external) ; 5 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 16 x DI / 16 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range 9~48V DC Input, Ignition delay on/off Control |
| Dimension | 3.5" Plus (146 x 130 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6600U) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 3, TASK(L) |
