3I170DW
VGA, HDMI, 5 x Intel Gb Ethernet,10 x USB,
8DI / 8DO, 2 x COM, 2 x Mini PCIe,1 x SIM, SMBus
Overview

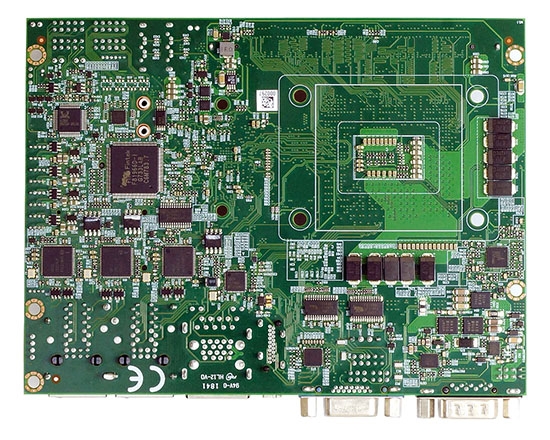

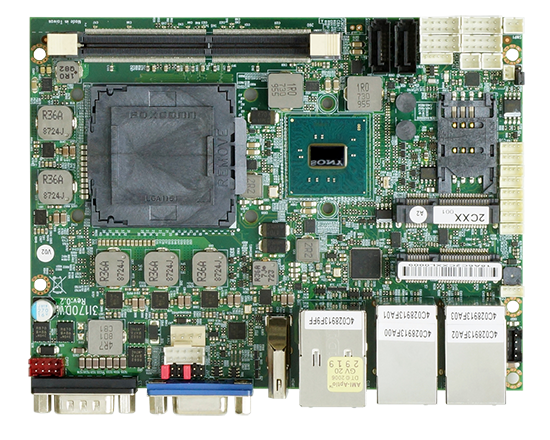

LEX SYSTEM 3I170DW is powered by 6th/7th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Skylake-S /Kaby Lake-S) with built-in 5 x GbE is the ideal platform for demanding networking and automation control application. 3I170DW combines this processing power with up to 32GB of DDR4 SODIMM RAM and rich compliment of I/O features, including 2 x RS-232/422/485 serial ports, 2 x USB 3.0 and 8 x USB 2.0 ports. The 3I170DW also offers flexibility with display ports, featuring HDMI and VGA. Users can also make use of the expandability of the 3I170DW with two mPCIe slot and one SIM card slot expansion. The features of wide voltage input(9-36V) as well as a wide operating temperature supported, plus with its compact 3.5” Plus form factor, make 3I170DW easily be deployed to the applications such as Smart Manufacturing, Surveillance, Intelligent Transportation and Automation fields.
Features
- 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S, i7 / i5 / i3 / Celeron CPU
- Intel® Q170 chipset
- 1 x DDR4 1866 / 2133 MHz SODIMM, Max. 32GB
- Multiple Independent display: VGA & HDMI
- 5 x Intel GbE LAN, 2 x USB 3.0, 8 x USB 2.0
- 2 x COM, 8DI / 8DO, 2 x Mini PCIe, 1 x SIM, SMBus
- TPM 2.0

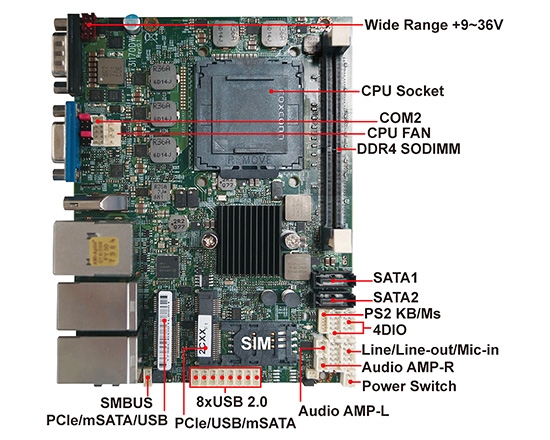

| MODEL | 3I170DW |
|---|---|
| CPU Type | 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Q170 chipset |
| Graphics | Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5 |
| System Memory | 1 x DDR4 1866 / 2133 MHz SODIMM, Max. 32GB |
| Storage | 2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 2 x mini card socket for mSATA |
| BIOS | AMI UEFI BIOS |

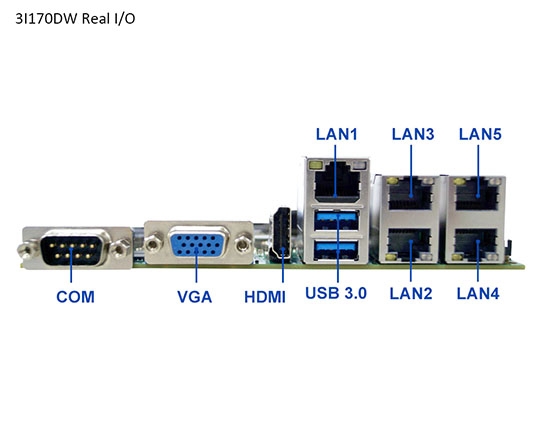

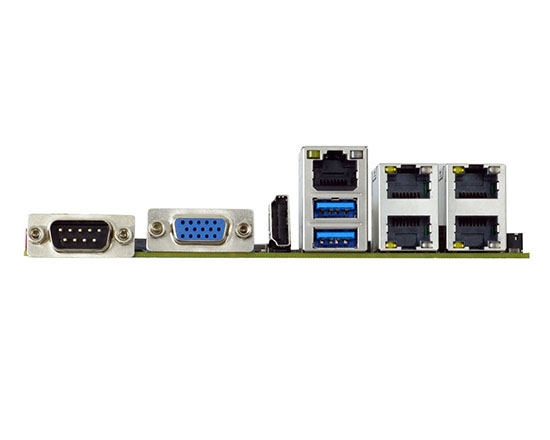

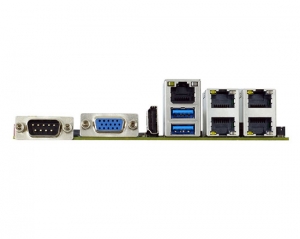

| Display | 1 x VGA, 1 x HDMI |
| TPM | TPM 2.0 |
| LAN | 4 x Intel GbE (external), 1 x Intel GbE I219LM (external) |
| Audio (OEM) | High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) 1 x Half size Mini PCIe (PCIe / mSATA / USB) 1 x SIM |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 2 x USB 3.0 (external) ; 8 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
1 x RS232 / 422 / 485 (external) *COM1, COM2 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| PS2 KB / MS | PS2 KB / MS (internal) |
| Power Input | Wide Range +9~36V |
| Dimension | 3.5" Plus (146 x 110 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6700TE) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | Box PC: TASK, SKY 3 |
