CI870CW
Overview

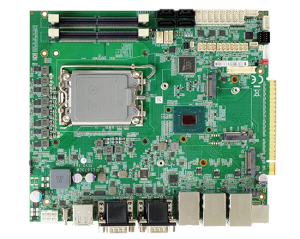

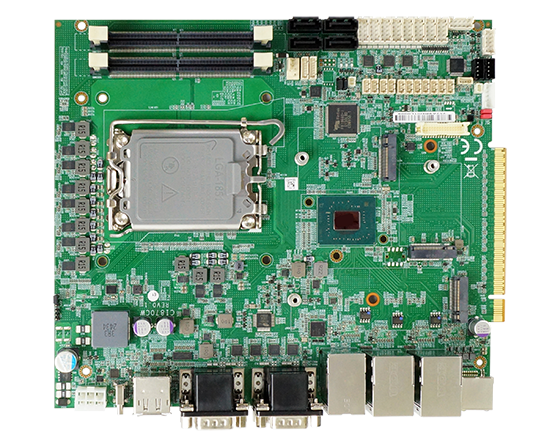

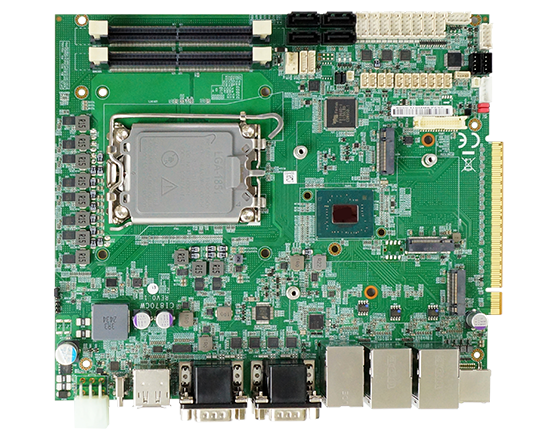

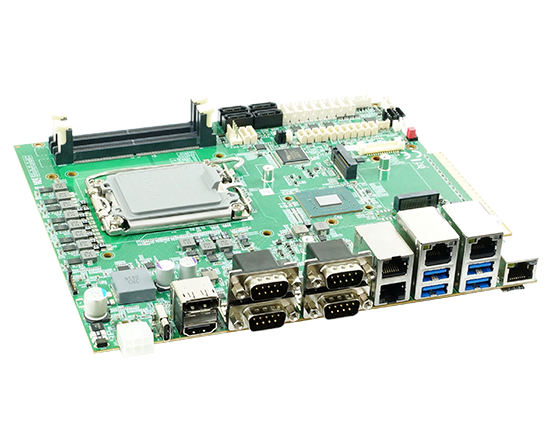

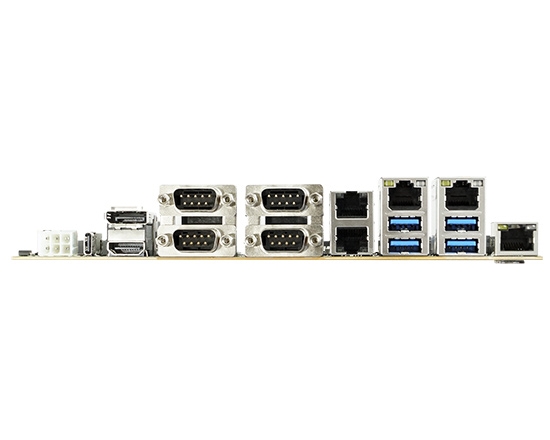

The LEX SYSTEM CI870CW is a high-performance single board computer (186 x 217 mm) powered by Intel® Core™ Ultra Series processors (Arrow Lake S). It supports up to 96 GB of DDR5 memory via two SO-DIMM slots and offers versatile display outputs, including HDMI®, DisplayPort, LVDS/eDP, and USB Type-C with DP Alt Mode.
For connectivity, the CI870CW integrates five Intel® 2.5G LAN ports, 10 serial ports, USB 3.2, USB 2.0, and SATA III. Expansion is enabled through a PCIe golden finger, Nano SIM slot, and multiple M.2 interfaces (M-Key, 2 × B-Key) for storage, wireless modules, and 5G support.
With a wide range DC input, CI870CW is designed for demanding environments such as industrial automation, manufacturing, transportation, healthcare, and other edge AI deployments.
Features
- Intel® Core™ Ultra Series 2 (Arrow Lake S) CPU
- 2 x DDR5 SODIMM, Max 96GB
- Multiple Independent display:
1 x HDMI®, 1 x DP, 1 x LVDS or eDP (BIOS), 1 x Type C - 5 x Intel 2.5 GbE LAN, 4 x USB 3.2 Gen 1, 4 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM, 1 x PCIe x16
- 10 x COM, 8DI / 8DO, Audio
- TPM 2.0, SMBus, I2C, I2S
| MODEL | CI870CW |
|---|---|
| CPU | Intel® Core™ Ultra Series 2 (Arrow Lake S) CPU |
| MB, Chipset | Intel® Q870 |
| Chipset | Intel® UHD Graphics |
| System Memory | 2 x DDR5 SODIMM, Max 96GB |
| Storage | 4 x SATA port 1 x M.2 M key Type 2280 / 3080 (OEM to 2242 / 3042), Support NVMe SSD 1 x M.2 B key Type 2242 / 3042, Support SATA SSD 1 x M.2 B key Type 2242 / 3042, Support NVMe SSD |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI® ; 1 x DP ; 1 x Type C DP ALT Mode, 1 x LVDS or eDP (BIOS) |
| TPM | Hardware TPM 2.0 ; OEM Optional to Firmware TPM 2.0 |
| LAN | 5 x Intel 2.5GbE I226-IT (external) |
| Audio | Realtek ALC888s, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier |

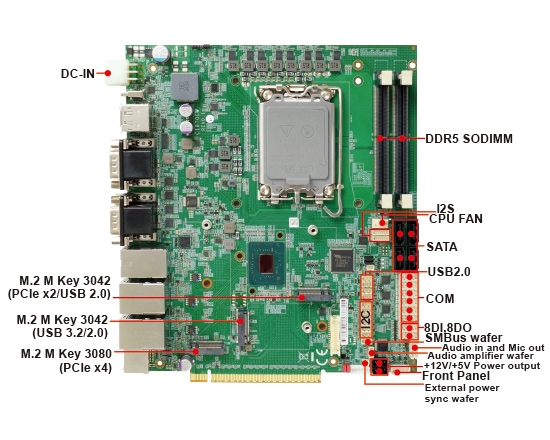

| Expansion Interface | 1 x M.2 M key Type 3080 (PCIe x 4), Support NVMe, (OEM to Type 3042) 1 x M.2 B key Type 2242 / 3042 (USB 3.2 Gen 1x1 + SATA / USB 2.0) (OEM to Type 3052) 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 2.0) 1 x Nano SIM 1 x PCIe x 16 golden finger |
| Expansion Module | Converter Card:
CN064: M.2 B+M Keyto M.2 E Key 2230, WiFi 6 + BT |

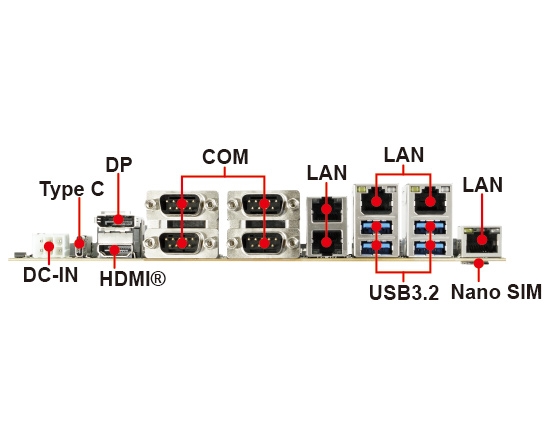

| USB | 4 x USB 3.2 Gen 1 (external), 1 x Type C, USB 3.2 (external) 4 x USB 2.0 (internal) |
| Serial IO | 4 x RS232 / 422 / 485 (external) ; 6 x RS232 / 422 / 485 (internal) |
| SMBus / I2C / I2S | 1 x SMBus ; 6 x 12C ; 2 x I2S |
| GPIO | Hardware digital Input & Output, 8 x DI / 8 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +12~36V (Typ: +12V/+24V) |
| Dimension | LEX form factor (186 x 217 mm) ; Weight: 460g |
| Operation Temperature | -20°C~50°C (Ultra 7 265T) -40°C (By OEM request) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Twister(L) |
| OS Support | Windows 10 / 11 (64bit) Ubuntu 26.04 LTS, Kernel->7.0.0-14-generic |
