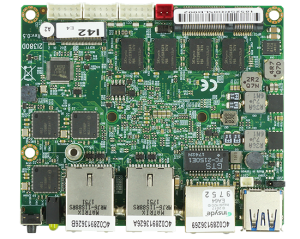

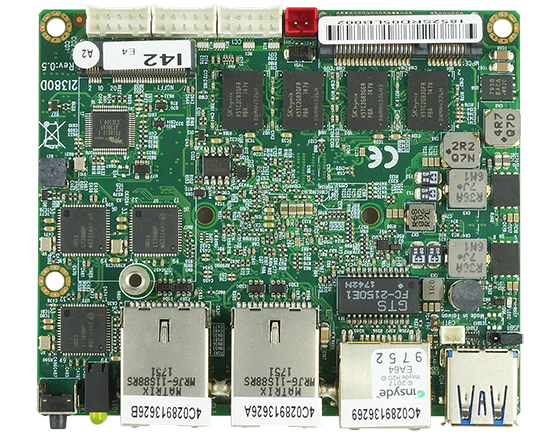

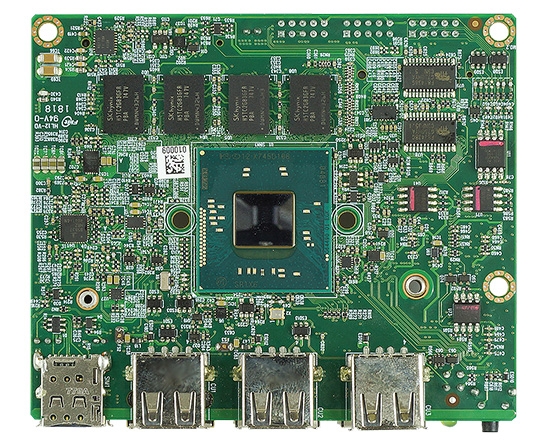

Single Board Computer

2I380D

Pico-ITX Embedded SBC supports Intel® Bay Trail Atom / Celeron CPU,
3 x Intel Gb Ethernet, VGA, 4 x USB,
2 x COM, 1 x Mini PCIe, 1x M.2, SMBus

Features

Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
Independent display: VGA

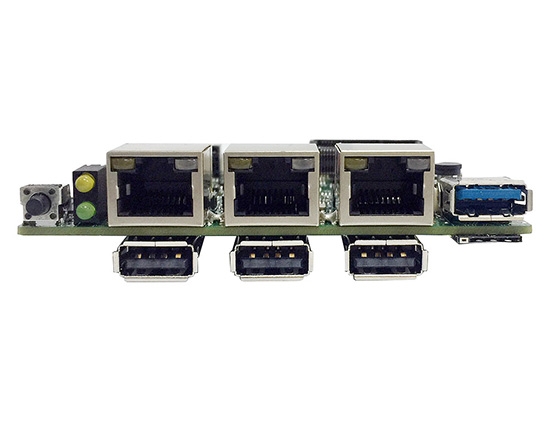

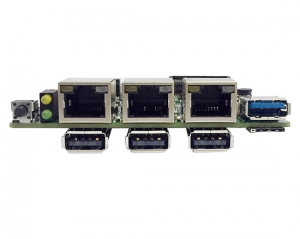

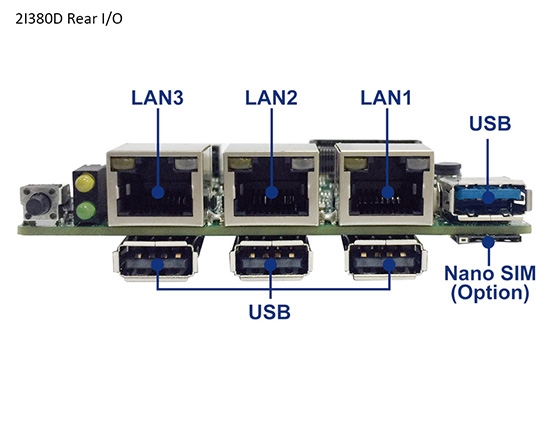

3 x Intel GbE LAN, 1 x USB 3.0, 3 x USB 2.0
2 x COM, 1 x Mini PCIe, 1 x M.2, SMBus

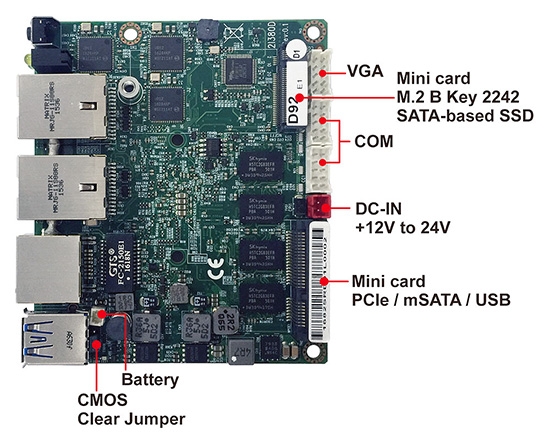

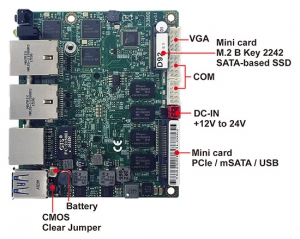

MODEL	2I380D
CPU	Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core) Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core) Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core)
MB Chipset	Intel® Bay Trail SoC
Graphics	Intel Gen7 graphic engine DirectX11, OpenGL3.2, OpenCL1.1; Full HW acceleration, decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2
System Memory	On Board DDR3L 1066 / 1333 MHz 2GB / 4GB
Storage	1 x M.2 B Key,Type 2242 (SATA) 1 x mini card socket for mSATA
BIOS	Insyde UEFI BIOS
Display	1 x VGA
LAN	3 x Intel GbE (external)
Expansion Interface	1 x Full size Mini PCIe (mSATA / USB)
Expansion Module	Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card
USB	1 x USB 3.0 (external), 3 x USB 2.0 (external)
USB Expansion	USB to : COM, Mini Card, M.2, Audio board
Serial IO	2 x RS232 / 422 / 485 (internal)
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +12~24V
Dimension	90.8 x 76.25 mm
Operation Temperature	-20°C~70°C (100 % CPU Usage)
Operation Humidity	5~95%, non-condensing
MTBF	45℃ @ >100,000Hr
OS Support	Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
Chassis (OEM I/O Expansion by request)	Box PC: NET-I
