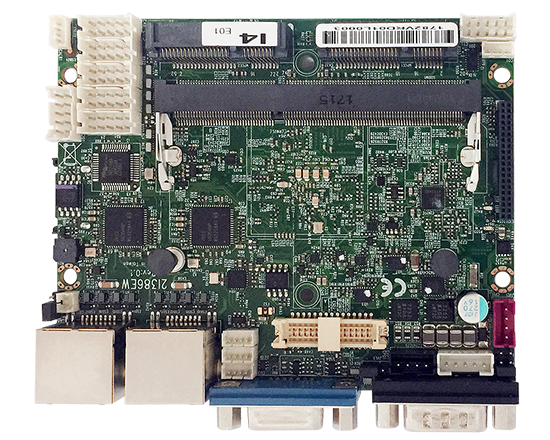

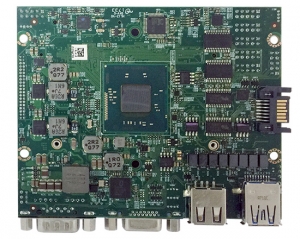

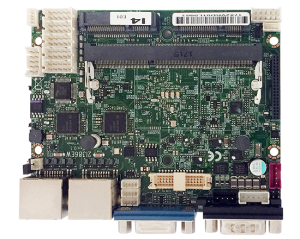

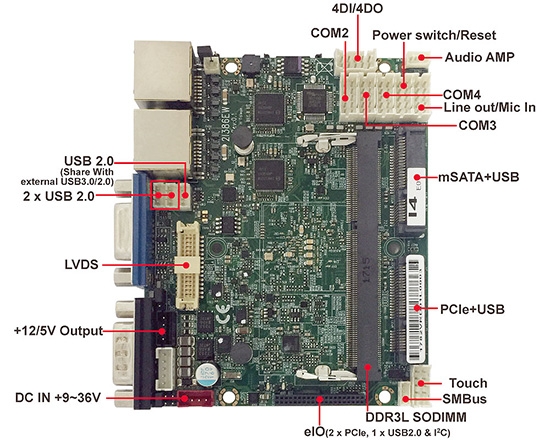

Single Board Computer
2I386EW
Pico-ITX Embedded SBC supports Intel® Bay Trail Atom / Celeron CPU,
VGA, 2 x Intel Gb Ethernet, 4 x USB,
4DI / 4DO, 4 x COM, 2 x Mini PCIe, LEX eIO, SMBus
VGA, 2 x Intel Gb Ethernet, 4 x USB,
4DI / 4DO, 4 x COM, 2 x Mini PCIe, LEX eIO, SMBus
Features
- Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core)
Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core)
Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) - 1 x DDR3L 1066 / 1333 MHz SODIMM, Max . 8 GB
- Independent display: VGA
- 2 x Intel GbE LAN, 1 x USB 3.0, 3 x USB 2.0
- 4 x COM, 4DI / 4DO, 2 x Mini PCIe, SMBus
- LEX eIO expansion
| MODEL | 2I386EW |
|---|---|
| CPU | Intel® Bay Trail-I Atom™ E3825 1.33GHz (Dual Core) Intel® Bay Trail-I Atom™ E3845 1.91 GHz (Quad Core) Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) |
| MB Chipset | Intel® Bay Trail SoC |
| Graphics | Intel Gen7 graphic engine DirectX11, OpenGL3.2, OpenCL1.1 ; Full HW acceleration, decode: H.264, MPEG 2 / 4, VC-1, WMV9. Encode: H.264, MPEG2 |
| System Memory | 1 x DDR3L 1066 / 1333 MHz SODIMM, Max. 8 GB |
| Storage | 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 1 1 x mini card socket for mSATA |
| BIOS | Insyde UEFI BIOS |
| Display | 1 x VGA, Dual Channel, 48 bits LVDS (Option) |
| Touch | (Option) USB touch screen controller |
| LAN | 2 x Intel GbE (external) |
| Audio | (Option) High Definition Audio Specification, Support Line-out / Mic-in / Line-in (Option)Two channel Class D Audio Amplifier |

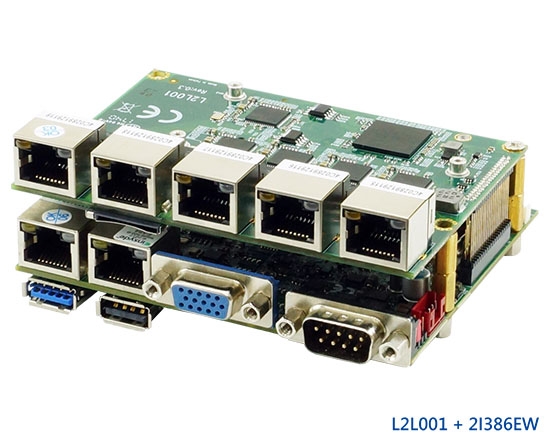

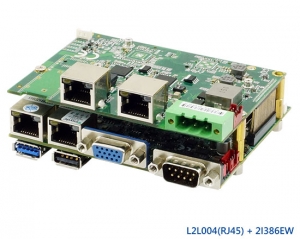

| Expansion Interface | 1 x Full size Mini PCIe (PCIe / USB) 1 x Full size Mini PCIe (mSATA / USB) LEX eIO: 2 x PCIe + USB |
| Expansion Module |

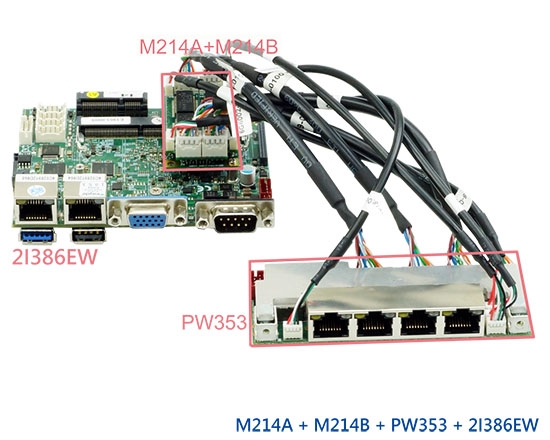

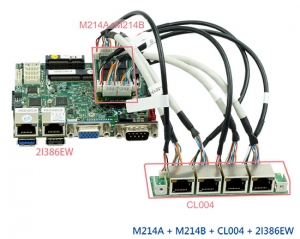

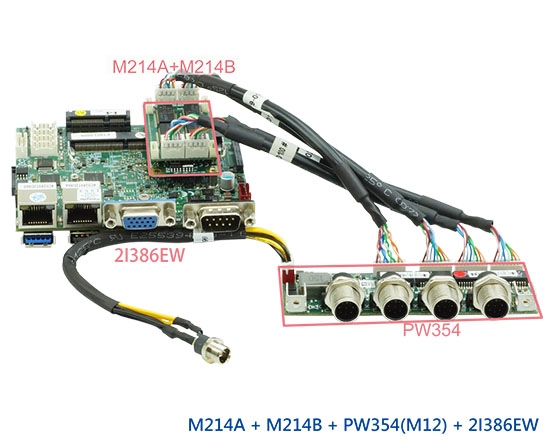

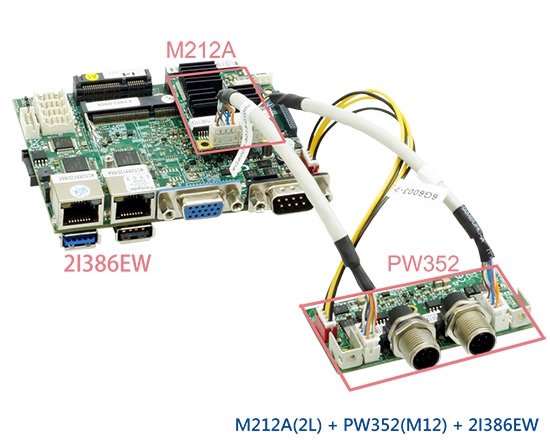

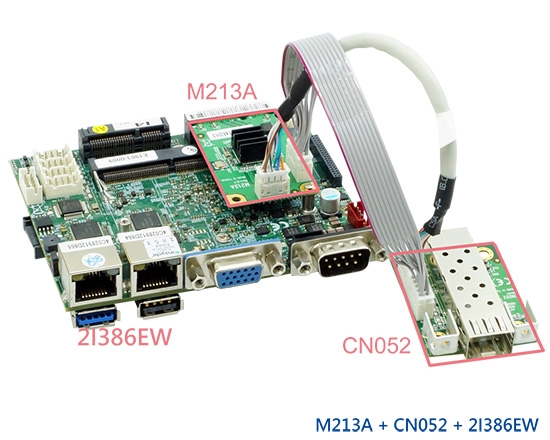

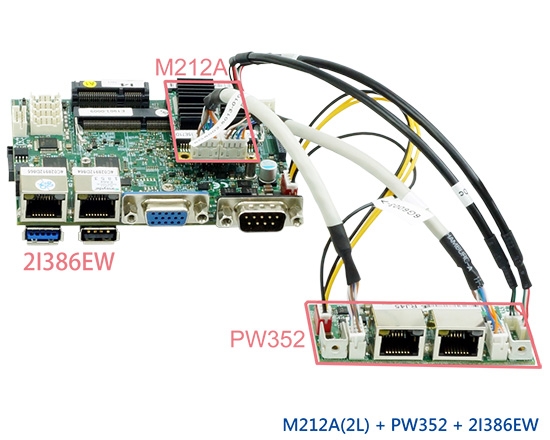

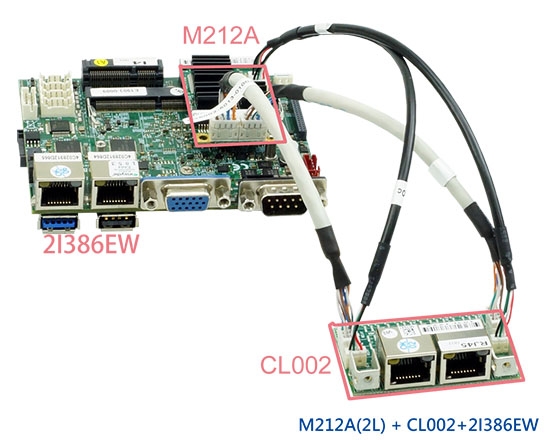

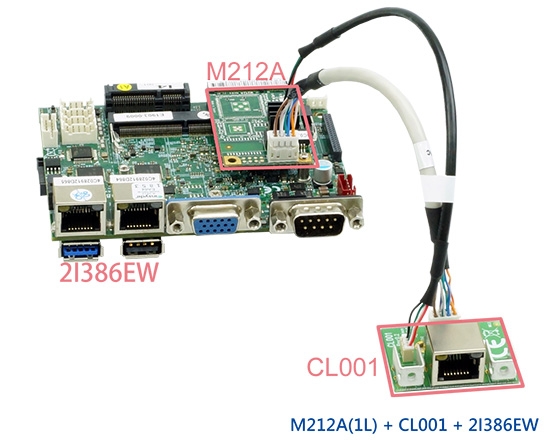

Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card |
| USB | 1 x USB 3.0 (external), 1 x USB 2.0 (external), 2 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
1 x RS232 / 422 / 485 (external) *COM1 pin9 5V / 12V selectable by jumper |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~48V |
| Dimension | Pico-ITX 2.5" (102 x 83 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
| Chassis (OEM I/O Expansion by request) | Box PC: TERA, MIRO 2, MIRO-RS |
