2I132DW
Intel® 13th Gen Raptor Lake-U /
Intel® 12th Gen Alder Lake-U Core™ i CPU
1 x HDMI®, 1 x eDP, 4 x Intel 2.5Gb Ethernet, 2 x M.2, 1 x Nano SIM
4DI/4DO, 3 x USB3.0, 4 x USB 2.0, 2 x COM
Overview
LEX SYSTEM 2I132DW is the 2.5"" SBC with Intel® 13th Gen Raptor Lake-U & 12th Gen Alder Lake-U i7/i5/i3/Celeron processor designed for high performance Edge Computing and AI computing. The 2I132W combines Intel's new graphics architecture and onboard 16/32 GB LPDDR5 memory to ensure improved graphics performance. The 2I132DW also provides high-speed 4 x 2.5 GbE LAN ports, wide range 9~36VDC input , HDMI®, eDP, 3 x USB 3.2, 4 x USB 2.0 , 2 x serial ports , 1 x M.2 B-Key & 1x M.2 M -key supports NVMe. The compact form factor also makes the 2I132DW a small, rugged and ideal platform for implementing artificial intelligence solutions for user intelligent transportation, factory automation and telemedicine applications.
Features
- Intel® 13th Gen Raptor Lake-U i7 / i5 / i3 CPU
- Onboard LPDDR5, 16GB / 32GB
- Multiple Independent display: HDMI®, eDP

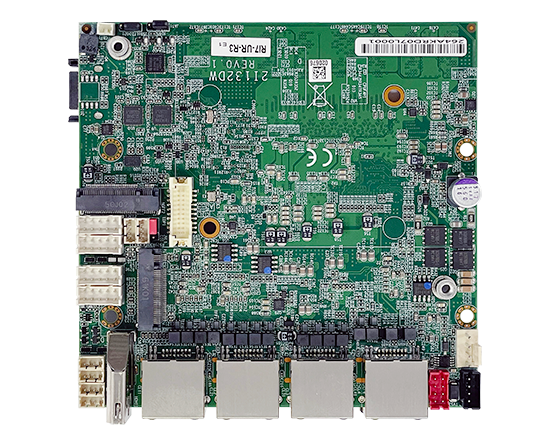

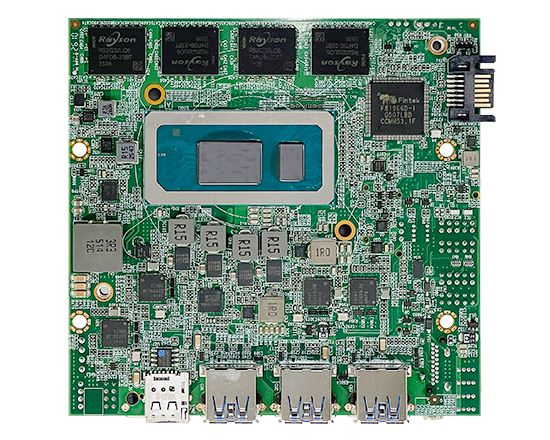

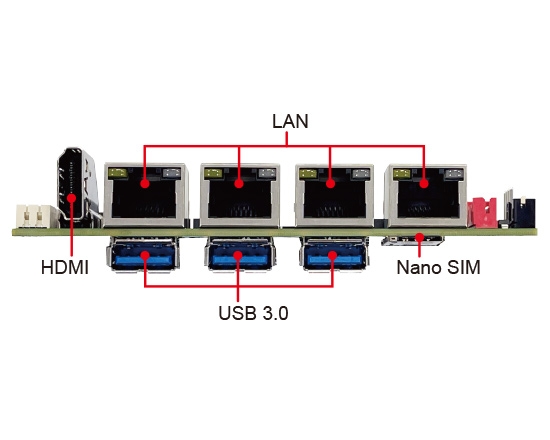

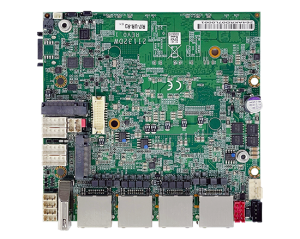

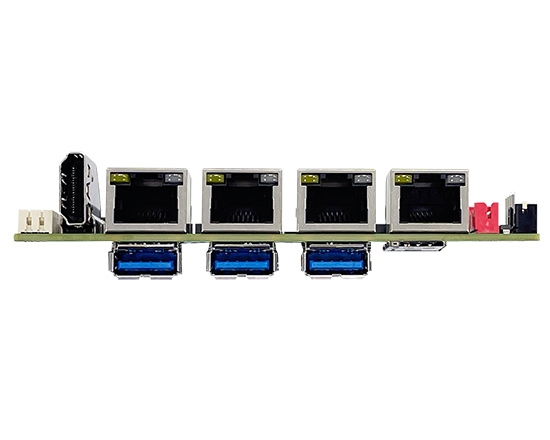

- 4 x Intel 2.5 GbE LAN, 3 x USB 3.0 (type A), 4 x USB 2.0
- 2 x COM, 4DI/4DO, 2 x M.2, 1 x Nano SIM
- TPM 2.0
| MODEL | 2I132DW |
|---|---|
| CPU |
Intel® 13th Gen Raptor Lake-U i7 / i5 / i3 CPU |
| MB Chipset | Intel® Raptor Lak / Alder Lake SoC |
| Graphics | Intel UHD Graphics |
| System Memory | Onboard LPDDR5, 16GB / 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (SATA / PCIe x4 ), Support NVMe 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.2 / 2.0) |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI®, 1 x eDP |
| TPM | TPM 2.0 |
| LAN | 4 x Intel 2.5GbE I226 (external) |

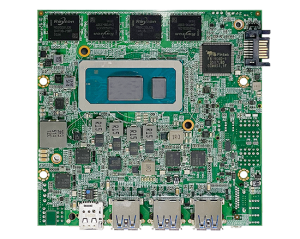

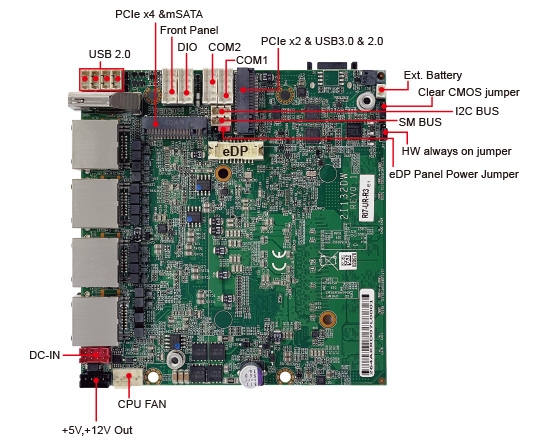

| Expansion Interface | 1 x M.2 M key Type 2280 (SATA / PCIe x4), Support NVMe 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B+M key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 Gen 1 x 1 (Type A-external) 4 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus / I²C | 1 x SMBus / I²C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 2.5" (108 x 105 mm) ; Weight: 115g |
| Operation Temperature (100 % CPU Usage) |
-40°C~70°C (under specific environmental & CPU power consumption conditions.) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) |
SKY 2, ROCK, FOX |
| OS Support | Windows 10/11 (64bit) Linux Ubuntu 22.04 above, Fedora 36 above |
