Single Board Computer

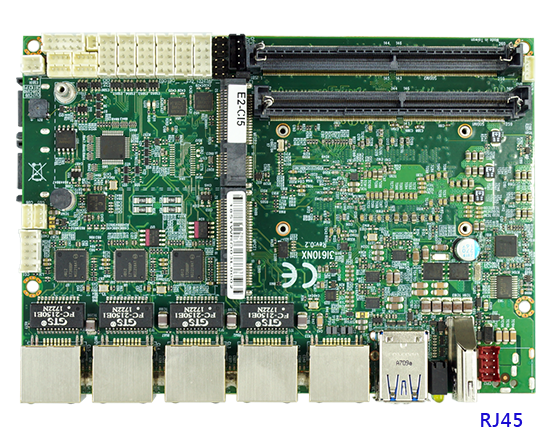

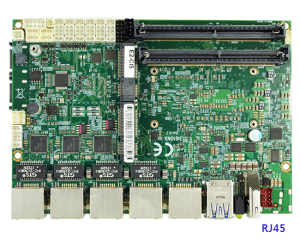

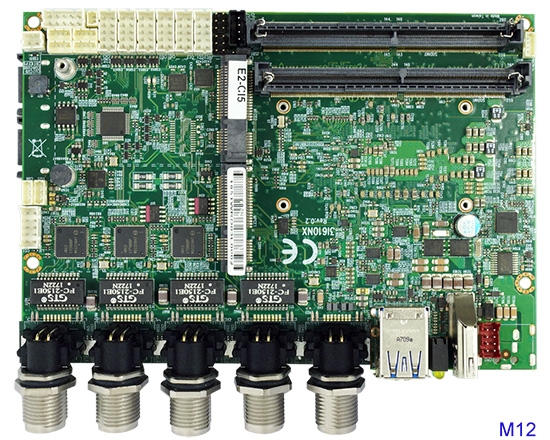

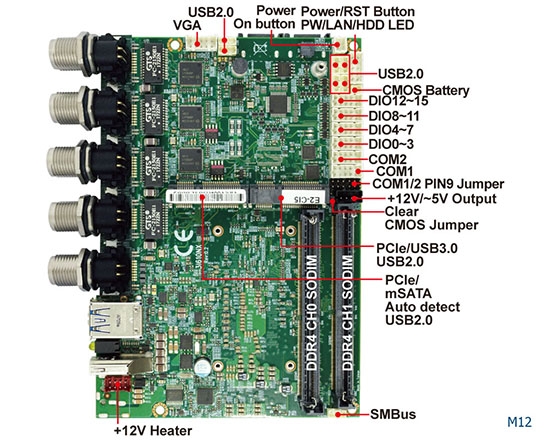

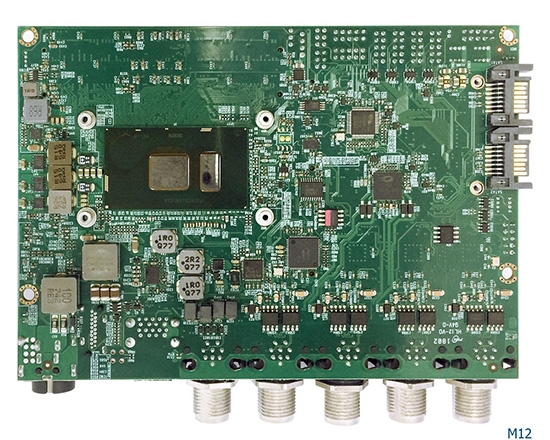

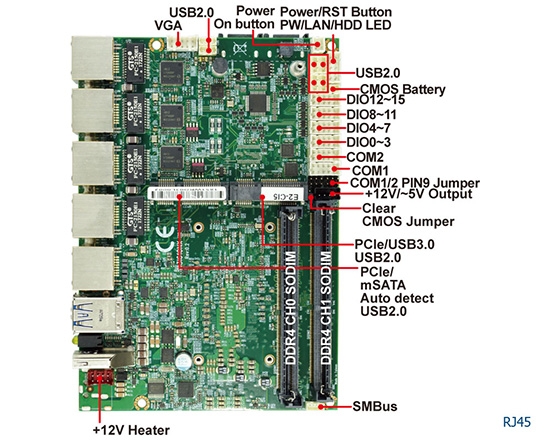

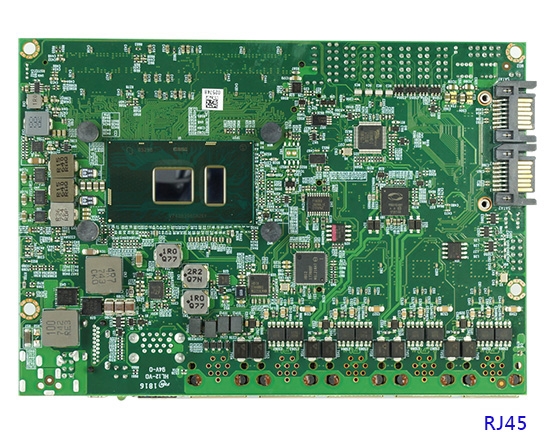

3I610NX

3.5" Embedded SBC supports 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU,
VGA, HDMI, 4 x PoE, 1 x Intel Gb Ethernet,
16DI / 16DO, 8 x USB, 2 x COM, 2 x Mini PCIe, SMBus

Features

  • 6th / 7th Gen Intel® Skylake-U /
    Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
  • 2 x DDR4 SODIMM socket, Max. 64GB
  • Multiple Independent display: VGA & HDMI
  • 4 x PoE, 1 x Intel GbE LAN, 2 x USB 3.0, 6 x USB 2.0
  • 2 x COM, 16DI / 16DO, 2 x Mini PCIe, SMBus
  • TPM 2.0 (Optional)
3I610NX Datasheet 3I610NX_CE 3I610NX_FCC
MODEL 3I610NX
CPU 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
MB Chipset Intel® Skylake-U / Kaby Lake-U SoC
Graphics Intel® HD Graphics, Support DirectX 12 & OpenGL 4.4 / 4.5
System Memory 2 x DDR4 1866 / 2133 MHz SODIMM, Max. 64GB
Storage 1 x mini card socket for mSATA
2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s)
BIOS Insyde UEFI BIOS
Display 1 x VGA, 1 x HDMI
TPM TPM 2.0 (Option)

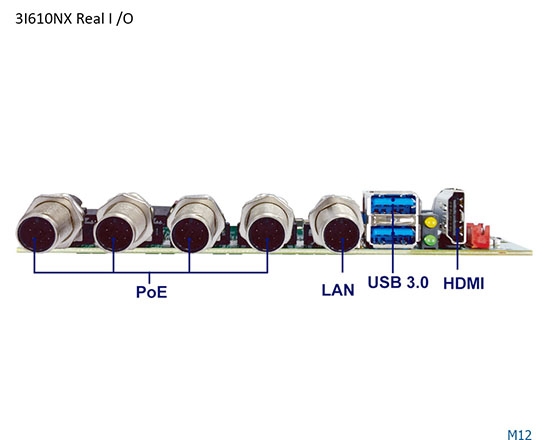

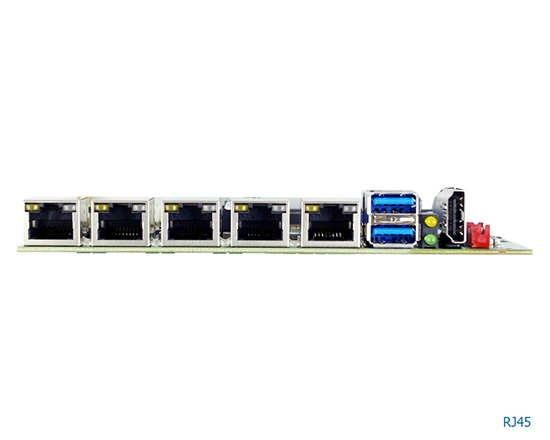

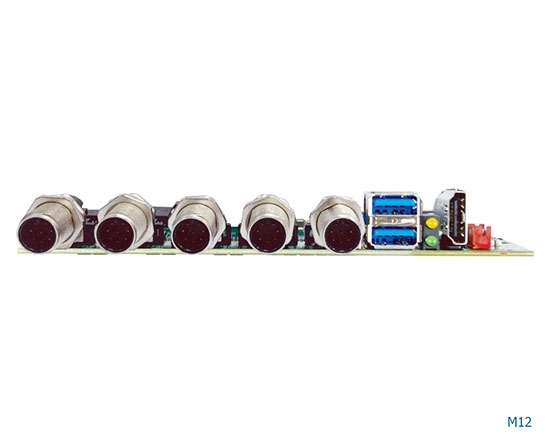

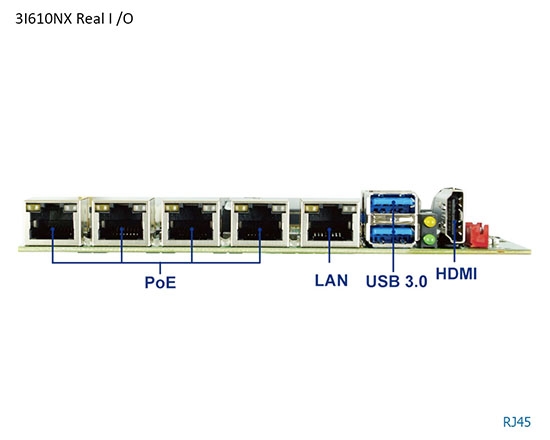

LAN 4 x Intel GbE (PoE) (external)
1 x Intel GbE I219LM (external)
Expansion Interface 1 x Full size Mini PCIe (mSATA / USB)
1 x Full size Mini PCIe (PCIe / USB2.0)
Expansion Module

Converter Card : CN066 : Mini PCIe to M.2 E key 2230, WiFi 6 + BT

Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video
By Cable : Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card
USB 2 x USB 3.0 (external) ; 6 x USB 2.0 (internal)
USB Expansion USB to : COM, Mini Card, M.2, Audio board
Serial IO

2 x RS232 / 422 / 485 (internal)

*COM1, COM2 pin9 5V / 12V selectable by jumper
GPIO Hardware digital Input & Output, 16 x DI / 16 x DO
SMBus 1 x SMBus
WDT Hardware Watch Dog Timer, 0~255 sec programmable
Power Input Wide Range +9~36V
Dimension 3.5" (146 x 102 mm)
Operation Temperature
(100 % CPU Usage)		 -20°C~70°C (Core i7 6600U)
Operation Humidity 5~95%, non-condensing
MTBF 45℃ @ >100,000Hr
OS Support

7th Generation Intel® Core™ Processor family: Kaby Lake

Windows® 10 IOT (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above

6th Generation Intel® Core™ Processor family: Skylake

Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit),
Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
Chassis (OEM I/O Expansion by request) Box PC: SKY 3, TASK
