2I642DW
x6413E / J6412 CPU, Onboard Memory / Storage,
2 x HDMI®, 3 x Intel 2.5Gb Ethernet, 4DI/4DO,
5 x USB, 2 x COM, 2 x M.2, 1 x Nano SIM
Overview

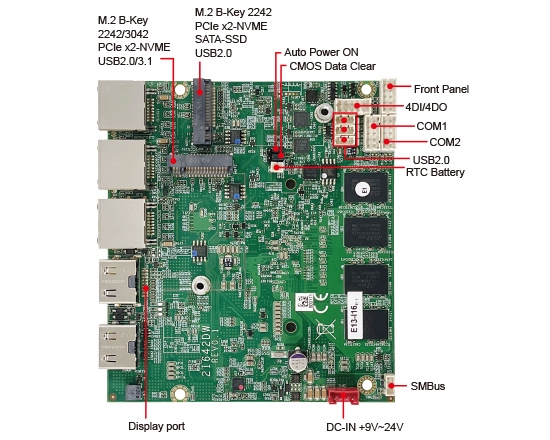

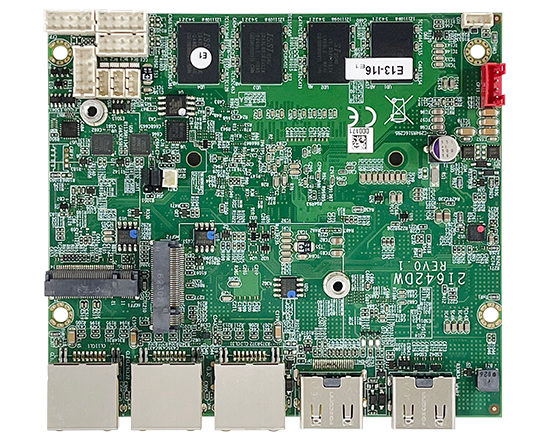

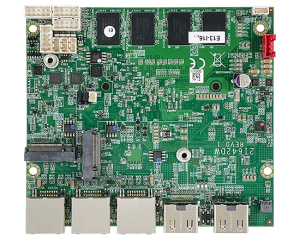

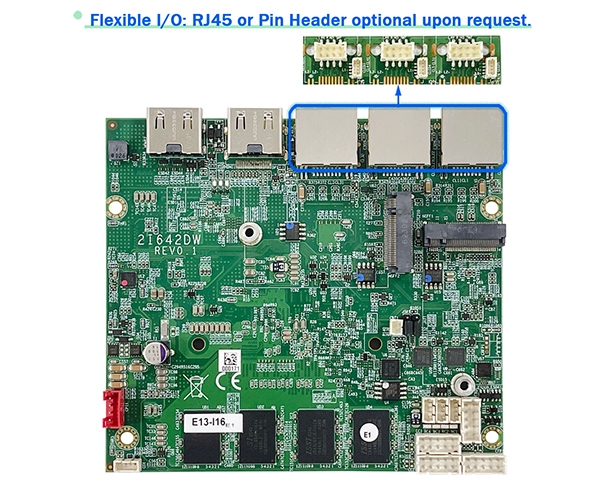

The LEX System 2.5” Plus (110 x 98 mm) SBC (2I642DW) is powered by Intel Atom® x6000E and Celeron® J Series (formerly Elkhart Lake) processors. It features onboard LPDDR4 memory and 32GB to 256GB eMMC storage. Designed to deliver robust graphics performance and integrated IoT features, the 2I642DW boasts versatile connectivity and expansion options, including 3 x 2.5 GbE LAN, 5 x USB, 2 x COM ports, dual HDMI® display interfaces (with 1 OEM-configurable to DP), 2 x M.2 slots, and a Nano SIM slot.
Combining exceptional processor performance, multiple high-speed Gigabit Ethernet ports, and a wide-range 9-24V DC-in design, the 2I642DW is the ultimate platform for OpenVINO-based AI accelerators. It is the ideal solution for advanced Edge AI, Intelligent Control, Factory Automation (Industry 4.0), IoT, and Edge Computing applications.
Features

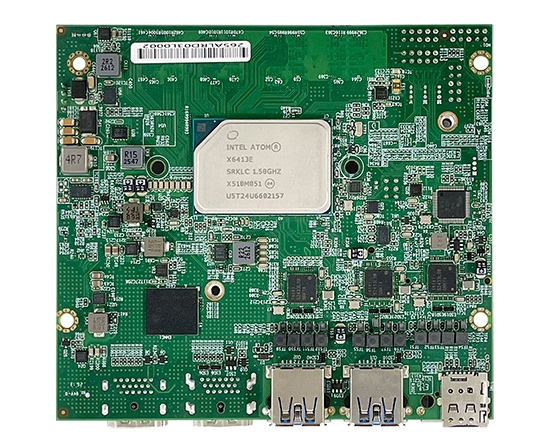

- Intel®Elkhart Lake ATOM® x6413E / J6412 CPU
- Onboard LPDDR4, 4GB / 8GB / 16GB
- eMMC 5.1 32GB~256GB
- Independent display: 2 x HDMI® (1 can OEM to DP)

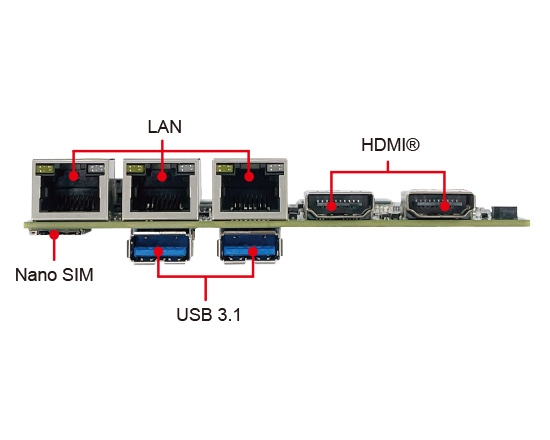

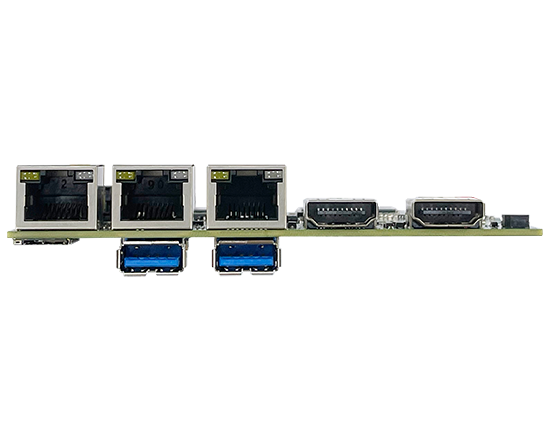

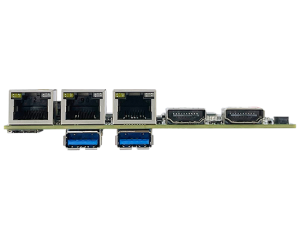

- 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
- 2 x COM, 4DI/4DO, 2 x M.2, 1 x Nano SIM
- TPM 2.0
| MODEL | 2I642DW |
|---|---|
| CPU | Intel®Elkhart Lake ATOM® x6413E / J6412 CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | Onboard LPDDR4 4GB / 8GB / 16GB |
| Storage | 2 x M.2 PCIe-SSD (NVMe) or 1 x M.2 PCIe-SSD (NVMe) + 1 x M.2 SATA SSD eMMC 5.1 32GB~256GB |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI® (1 can OEM to DP) |
| TPM | TPM 2.0 |
| LAN | 3 x Intel 2.5 GbE I226IT (external) / x6413E CPU Or 3 x Intel 2.5 GbE I226V (external) / J6412 CPU |
| Expansion Interface | 1 x M.2 B Key Type 2242 (PCIe x 2 / USB 2.0 / SATA)-NVMe or SATA SSD 1 x M.2 B Key Type 2242 / 3042 (PCIe x 2 / USB 3.0 / USB 2.0)-NVMe 1 x Nano SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC-IN +9~24V |
| Dimension | 2.5" Plus (110 x 98 mm) ; Weight: 110g |
| Operation Temperature | 20°C~70°C ; -40°C by x6413E CPU |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA, NET-III |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
