NET-II 2I740DW
with Intel® Amston Lake ATOM® x7000 series CPU
Overview

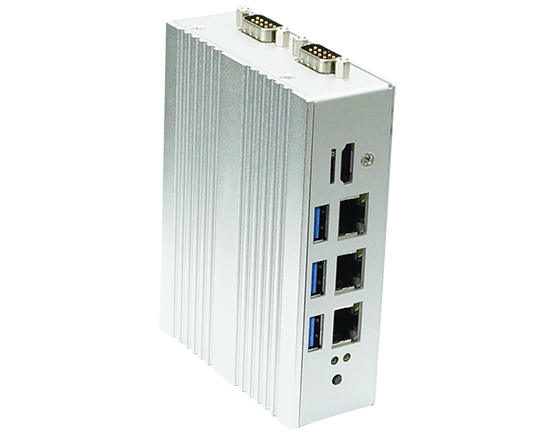

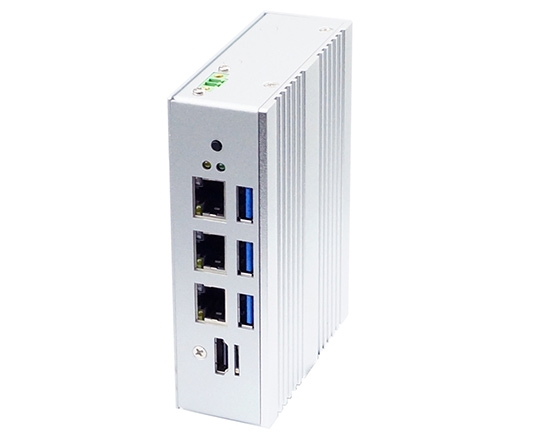

The NET-II 2I740DW is an ultra-compact, fanless DIN-Rail computer measuring only 120 W x 90 D x 35 H mm. Powered by the Intel® Atom® x7000 series (Amston Lake) processor, it is purpose-built for space-limited deployments such as factory data collection, AIoT, edge computing, and gateway applications.
Designed with rich connectivity, the NET-II 2I740DW integrates HDMI®, 3 x 2.5GbE LAN, 3 x USB 3.2, and 2 x COM ports, ensuring reliable industrial communication and control. Its M.2 expansion slot further enables WiFi 6, 4G, and 5G wireless connectivity, delivering wide-area coverage and real-time data transmission for AIoT and edge gateway solutions.
With low power consumption and lightweight design, the NET-II 2I740DW provides an ideal platform for space-constrained edge deployments in intelligent robotics, smart transportation, medical systems, and visual inspection/analysis applications.
Features
- Intel® Amston Lake ATOM® x7000 series CPU
- Onboard LPDDR5, Max.32 GB,
- Independent display: 1 x HDMI®
- 3 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x COM
- 2 x M.2, 1 x Nano SIM
| MODEL | NET-II 2I740DW | |
|---|---|---|
| Motherboard | 2I740DW | |
| System Dimension(WxDxH) | 120 W x 90D x 35H mm | |
| Weight | 0.52kg | |

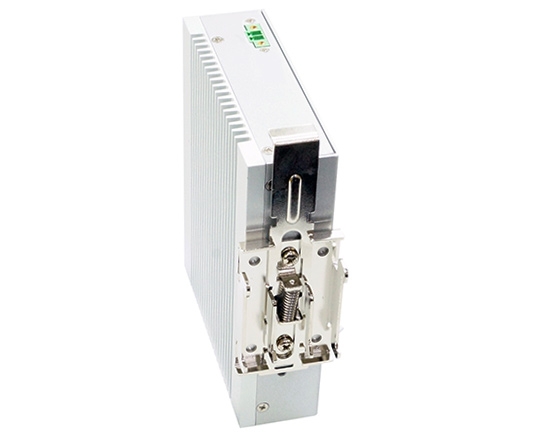

| Mounting | DIN-Rail Mount* VESA Mount* | |
| CPU | Intel® Amston Lake ATOM® x7000 series CPU | |
| Chipset | Intel Amston Lake SoC | |
| Memory | Onboard LPDDR5, Max.32 GB | |
| Storage | M.2-SSD | |
| Expansion slots | 1 x M.2 B Key Type2242 (PCIe x2 / USB 2.0) 1 x M.2 B Key Type2242/3042 (SATA / USB 3.2 / USB 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 3 x Intel 2.5 GbE |
| USB | 3 x USB 3.2 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® | |
| Optional Modules & Accessory |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) *DIN-Rail Mounting Kit, *VESA Mounting Kit, |
|
| Power | DC input : Wide Range +9~24V | |
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C | |
| Storage Temp. | -20°C to +60°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
