Single Board Computer
2I140D
2.5" Plus Embedded SBC supports Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H)

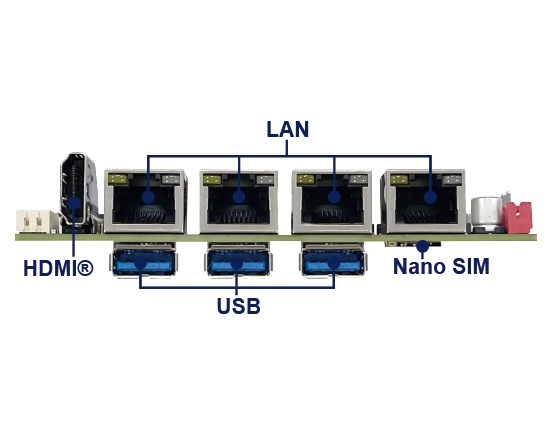

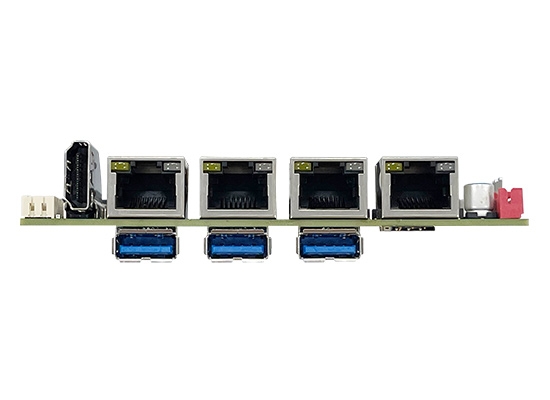

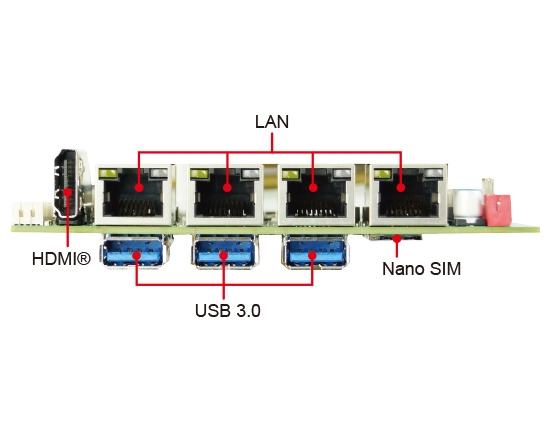

1 x HDMI®,
1 x eDP, 4 x Intel 2.5Gb Ethernet, 2 x MIPI-CSI, 2 x M.2,
1 x Nano SIM, 4DI/4DO, 3 x USB 3.2, 4 x USB 2.0, 2 x COM
(Meteor Lake-U/H) (Arrow Lake-U/H)
1 x HDMI®,
1 x eDP, 4 x Intel 2.5Gb Ethernet, 2 x MIPI-CSI, 2 x M.2,
1 x Nano SIM, 4DI/4DO, 3 x USB 3.2, 4 x USB 2.0, 2 x COM
Overview

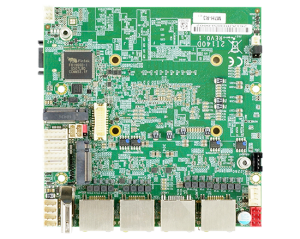

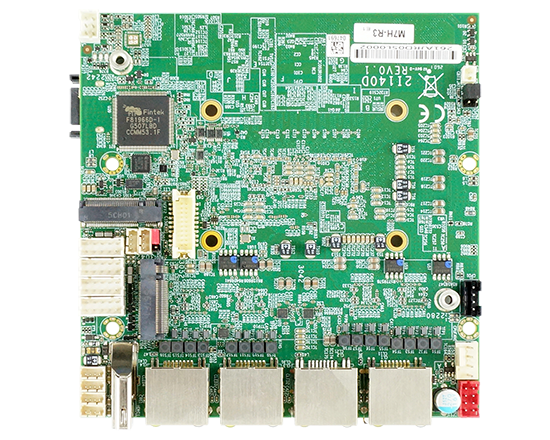

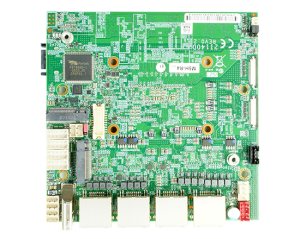

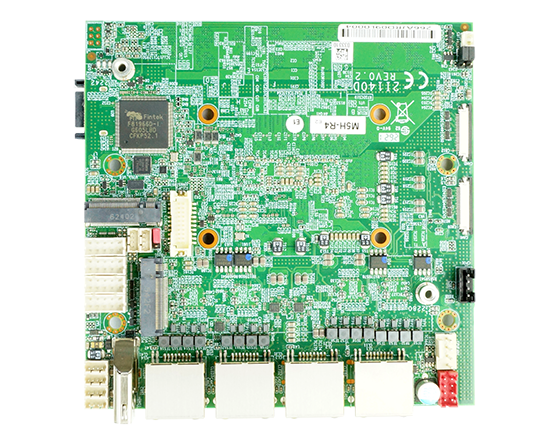

The LEX SYSTEM 2I140D is a high-performance 2.5-inch Plus (113 x 112 mm) ultra-compact SBC powered by Intel® Core™ Ultra Series 2 processors with an integrated NPU for advanced Edge AI acceleration. Its primary competitive edge lies in its remarkable size-to-performance ratio, featuring onboard 16GB/32GB LPDDR5 memory that not only maximizes space efficiency but also enhances shock and vibration resistance for harsh environments. Despite its miniature footprint, the 2I140D delivers robust industrial connectivity, including 4 x Intel® 2.5G LAN ports, 2 x MIPI-CSI connectors, HDMI/eDP, SATA III, and M.2 slots for 5G/wireless expansion. With a 12V DC input, it is the premier choice for industrial automation, healthcare, and transportation applications where space is at a premium but high-speed AI processing is essential.

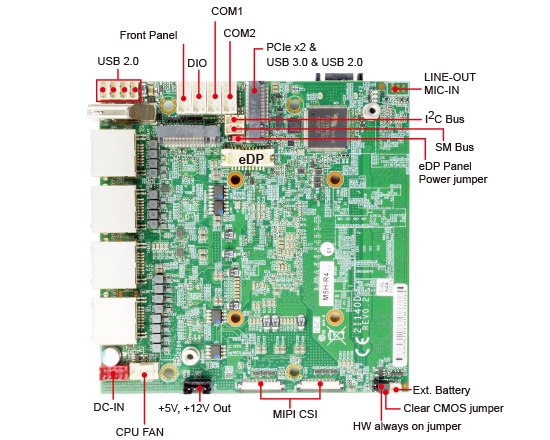

Features
- Intel® Core™ Ultra processors
(Meteor Lake-U/H) (Arrow Lake-U/H) - Onboard 16GB / 32GB LPDDR5
- Multiple Independent display: 1 x HDMI®, eDP
- 4 x Intel 2.5 GbE, 3 x USB 3.2 ; 4 x USB 2.0
- USB Audio wafer (OEM) ; 2 x MIPI-CSI
- 2 x M.2, 1 x Nano SIM, 2 x COM
- TPM 2.0, 4DI / 4DO
| MODEL | 2I140D |
|---|---|
| CPU | Intel® Core™ Ultra 7/5 Series processors (Meteor Lake-U/H) (Arrow Lake-U/H) |
| Graphics | Intel® Arc™ graphics ; Intel® UHD Graphics |
| System Memory | Onboard 16GB / 32GB LPDDR5 |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe |
| BIOS | AMI UEFI BIOS |
| Display | 1 x HDMI®, eDP |
| TPM | TPM 2.0 |

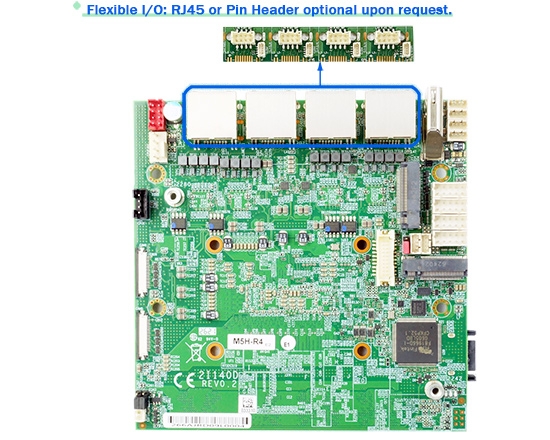

| LAN | 4 x Intel 2.5GbE I226 (external) |
| Expansion Interface | 1 x M.2 M key Type 2280 (SATA / PCIe x 4), Support NVMe, 1 x M.2 B key Type 2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0) |
| Expansion Module | CN064 : M.2 B+M key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic-in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Range power board (24V / 48V) DP001 : eDP to VGA eDP003 : eDP to DVI eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM) |
| USB | 3 x USB 3.2 (Type A-external) 4 x USB 2.0 (internal) ; USB Audio wafer (OEM) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) |
| MIPI-CSI | 2 x MIPI-CSI |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus / I2C | 1 x SMBus & I2C |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | DC IN +12V |
| Dimension | 2.5" Plus (113 x 112 mm), Weight:120g |
| Operation Temperature | -20°C~70°C, (100% CPU Usage, not-underclocking) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, ROCK, FOX |
| OS Support | Windows 10/11 (64bit) Linux Ubuntu 22.04/Kernel 5.15 |
請左右滑動表格
| Model | Function Category | Description |
|---|---|---|
| NF212A+CL001 | Networking / Communication | PCIe to GbE LAN |
| NF212B+CL002 | Networking / Communication | PCIe to Dual GbE LAN |
| NF212A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF212B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF226A+CL001 | Networking / Communication | PCIe to 2.5G LAN |
| NF226B+CL002 | Networking / Communication | PCIe to Dual 2.5G LAN |
| NF226A+PW351 | PoE Module | 1 port PSE up to 25.5W |
| NF226B+PW352 | PoE Module | 2 port PSE up to 30.8W |
| NF504A | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CN073-S5+ME225-S | Capture Card | HDMI video capture card |
| CN073-S5+CU006-S | Converter Board | USB 3.0 to 4 x USB 3.0 |
| CN073-S5+CN063 | Converter Board | USB 3.0 to 4 x M.2 B Key 3042/3052 slot with 4*SIM |
| CN073-S3+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN073-S3+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN073-S3+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN073-S3+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CN075+CL210A | Networking / Communication | PCIe to 4 x GbE LAN |
| CN075+CL210P | Networking / Communication | PCIe to 4 x PoE GbE LAN |
| CN075+CL210F | Networking / Communication | PCIe to 4 x Fiber LAN |
| CN075+CL226A | Networking / Communication | PCIe to 4 x 2.5G LAN |
| CIO116-G | Digital I/O board | Optocoupler isolated 8DI 8DO board (SMBus interface) |
| CN059 | Display & Audio board | USB to Audio module |
| AU002 | Display & Audio board | USB to Audio with Audio AMP |
| CC007 | Serial Board | Non-Isolated USB to 4 port RS232/422/485 board |
| CC107 | Serial Board | Isolated USB to 4 port RS232/422/485 board |
| PW205 | Power Board | Wide range DC IN with CPC function |
| PW206 | Power Board | DC to DC Redundant Power Board |
| PW209 | Power Board | Wide range DC IN with Surge stopper function |
| DP001 | Display & Audio board | eDP to VGA |
| eDP001 | Display & Audio board | eDP to LVDS |
| eDP003 | Display & Audio board | eDP to DVI |
| eDP004 | Display & Audio board | eDP to HDMI |
| 4G LTE / 5G | Networking / Communication | 4G LTE / 5G |
| WiFi+BT | Networking / Communication | WiFi+BT |
| GPS | Networking / Communication | GPS |
