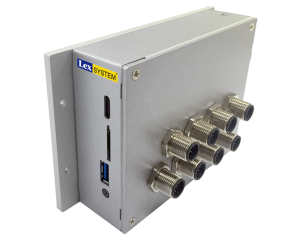

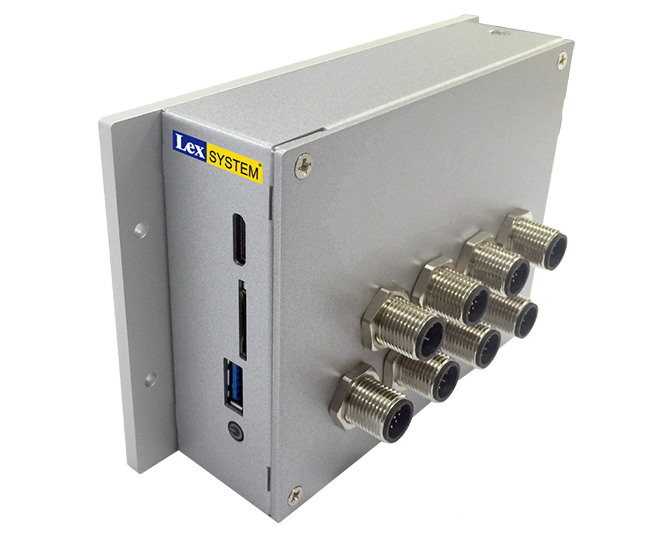

DIN-Rail System
ARK-I 2I385PW + DM002
Compact Fanless Embedded Computer
with Intel® Bay Trail Processor
with Intel® Bay Trail Processor
Features
- Intel® Bay Trail CPU: AtomTM E3845 / E3825, Celeron® J1900
- On Board DDR3L 2 / 4GB
- Independent display: VGA (M12), Mini HDMI
- M12 IO: 2 x Intel GbE LAN, 2 x COM, 4 x USB 2.0, 1 x DC-Input
- 1 x USB 3.0, 1 x SIM, 1 x Mini PCIe
| MODEL | ARK-I + 2I385PW + DM002 | |
|---|---|---|
| System Dimension(WxDxH) | 140W x 92D x 40.67H mm | |
| Weight(Incl.M/B) | 0.56 kg | |
| CPU | Intel® Bay Trail E3825 / E3845 / J1900 CPU | |
| Chipset | Intel Bay Trail SoC | |
| Memory | On Board DDR3L 2 / 4GB | |
| Storage | mSATA | |
| Expansion slots | 1 x Full-size Mini Card (PCIe / USB) 1 x SIM (Push-Push) |
|
| I/O ports | Network | 2 x Intel GbE (M12) |
| USB | 4 x USB 2.0 (2 x M12), 1 x USB 3.0 | |
| Serial ports | 2 x COM (M12) | |
| Display | 1 x VGA (M12) , 1 x Mini HDMI | |
| Optional Modules & Accessory |
GPS, Bluetooth, WiFi, 4G LTE, DI/O, Isolated COM, *VESA Mount Kit, *DIN Rail Mounting Kit *External Power Adapter |
|
| Power | DC input : +9V~36V AC input : AC-DC External adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
|
