PoE modules

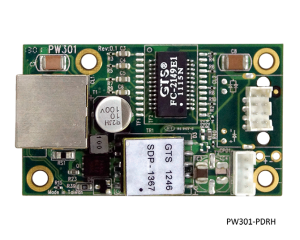

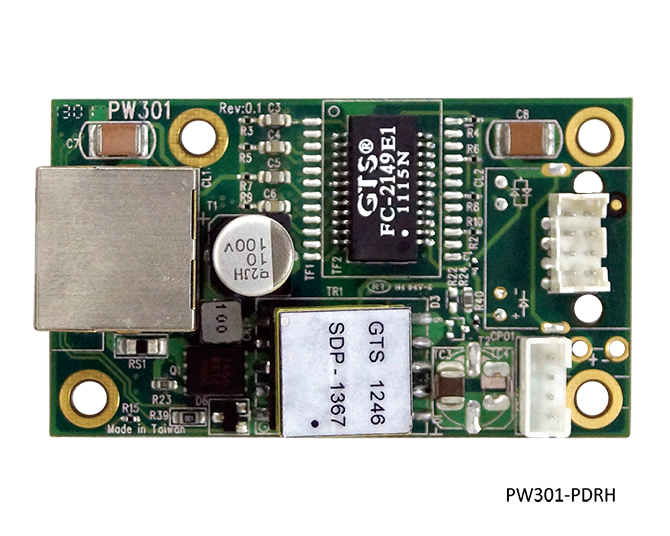

PW301
1 port PoE PD
PW301 is PD power solution board & complaints to IEEE 802.3 At type 2.
It supports up to 25.5W / +12V output and has both over current protection and short protection.
PW301 is PD power solution board & complaints to IEEE 802.3 At type 2.
It supports up to 25.5W / +12V output and has both over current protection and short protection.
Features
- DC Input: +37V to +57V
- Output voltage: +12V
- Current: Compliant IEEE802.3 af/at type 2 up to 25.5W
| MODEL | PW301 |
|---|---|
| Type | PoE Device to DC & LAN |
| Input | RJ45 |

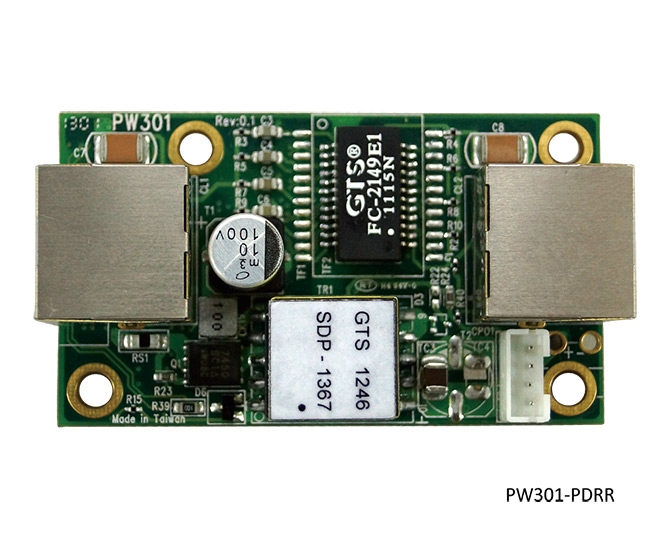

| Output port | 1 x 4 pin power & RJ45 or 2 x 4 pin LAN wafer |
| Operating Temperature | -40°C ~ +65°C |
| Dimensions | 35 x 60 mm |
