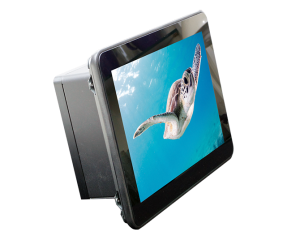

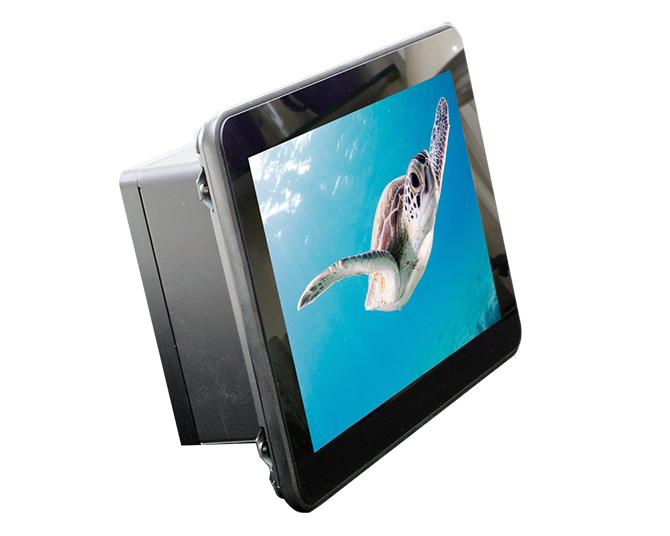

IP65 Panel PC

VITA 10.1" PPC + 3I610CW

10.1" Frameless Panel PC with
6th / 7th Gen Intel® Skylake / Kaby Lake-U,
i7 / i5 / i3 / Celeron CPU

Features

MODEL		VITA 10.1" PPC + 3I610CW
System Dimension(WxDxH)		260.67W x 183.37D x 70.8H mm
Weight(Incl.M/B)		2.5 kg
Motherboard		3I610CW
CPU		Intel® Skylake / Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
Chipset		Intel Skylake / Kaby Lake-U SoC
Memory		1 x DDR4 SODIMM, Max. 32GB
Storage		mSATA
Expansion slots		1 x Full-size Mini PCIe (USB / mSATA) 1x Full-size Mini PCIe (PCIe / USB 2.0) 1 x SIM

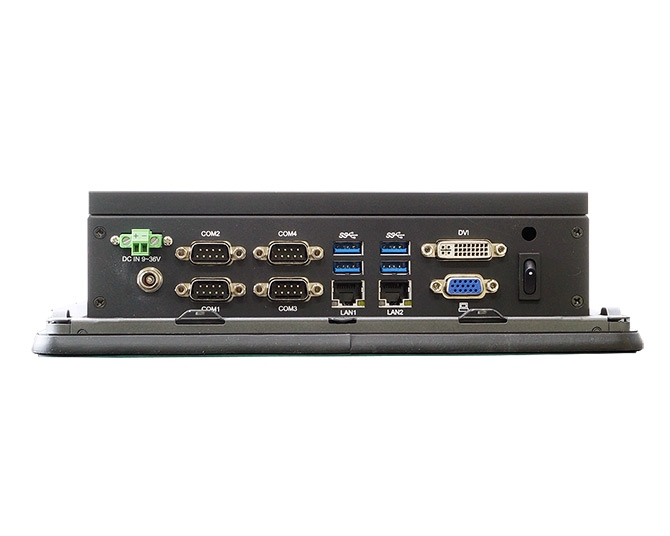

M12 I /O ports (Selectable)	Network	2 x Intel GbE
	USB	4 x USB 3.0
	Serial ports	4 x RS232 / 422 / 485
	Display	1 x VGA, 1 x DVI
Optional Modules & Function		GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS VESA Mount Kit, External power adapter
Power		DC input : +9~36V AC input : External adapter 100 / 240V AC-DC (optional)
Display Type		10.1 inch 16:9
Max. Resolution		1280 x 800
Viewing Angle		85(U), 85(D), 85(R), 85(L)
Luminance (cd/m2)		500
Contrast Ratio		1300:1
Touch Type		Projected Capacitive Touch Screen
Operating Temp. (100 % CPU usage)		-20°C to +50°C with mSATA
Storage Temp.		-20°C to +70°C
Relative Humidity		95% @ 40°C, non-condensing
IP Rating		Front panel IP65 Compliant
OS Support		7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above
