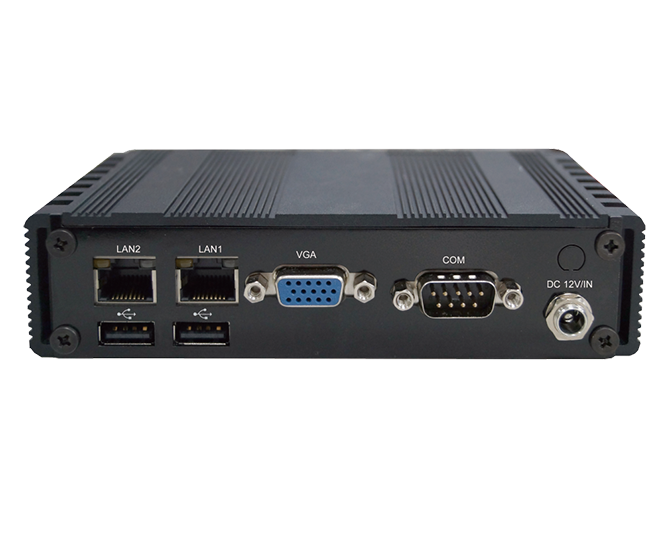

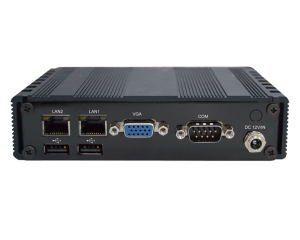

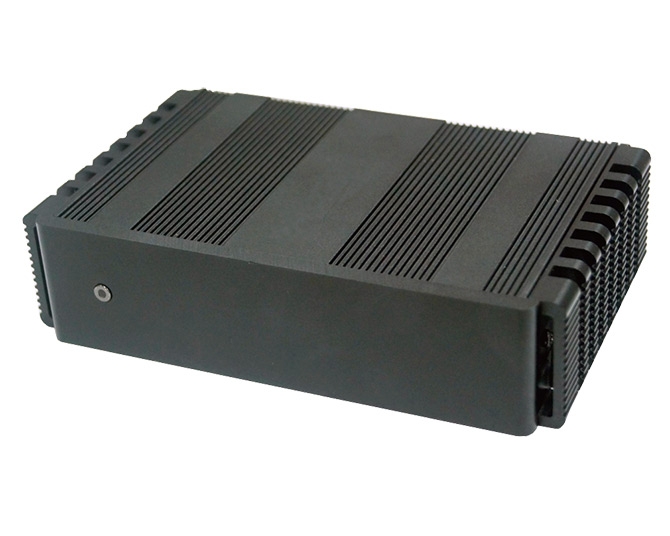

Embedded Box PC
TWIN 2I385A
Fanless Embedded Computer
with Intel® Bay Trail Processor
with Intel® Bay Trail Processor
Features
- Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
- On Board DDR3L 2GB / 4GB
- Independent display: VGA
- 2 x GbE, 2 x USB, 1 x COM, 2 x Mini PCIe
| MODEL | TWIN 2I385A | |
|---|---|---|
| System Dimension(WxDxH) | 145W x 84D x 35H mm | |
| Weight(Incl.M/B) | 700 g | |
| CPU | Intel® Bay Trail E3825 1.33 Ghz (Dual Core) (Optional J1900 ; E3845) |
|
| Chipset | Intel® Bay Trail SoC | |
| Memory | On Board DDR3L 2GB (4GB-Optional) | |
| Storage | mSATA | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Half-size Mini PCIe (mSATA / USB) |
|
| I/O ports | Network | 2 x Intel GbE |
| USB | 2 x USB 2.0 | |
| Serial ports | 1 x RS232 Optional to RS422 / 485 | |
| Display | VGA | |
| Accessory (Optional) | Optional module: GPS, 3G / 4G, Wi-Fi, USB, CANBus, 2 /4 LAN, SDI / AHD Video, Bluetooth, DI/O, PoE |
|
| Power | DC input : +12V. +9~36V (Optional) AC input : External adapter 100 / 240V AC-DC 30W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +70°C with mSATA | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime, Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above |
|
