Embedded Box PC


Ultra Compact Fanless Embedded Computer
with Intel® Bay Trail Processor


  • Intel® Bay Trail CPU: Atom™ E3845 / E3825, Celeron® J1900
  • On Board DDR3L 2GB / 4GB

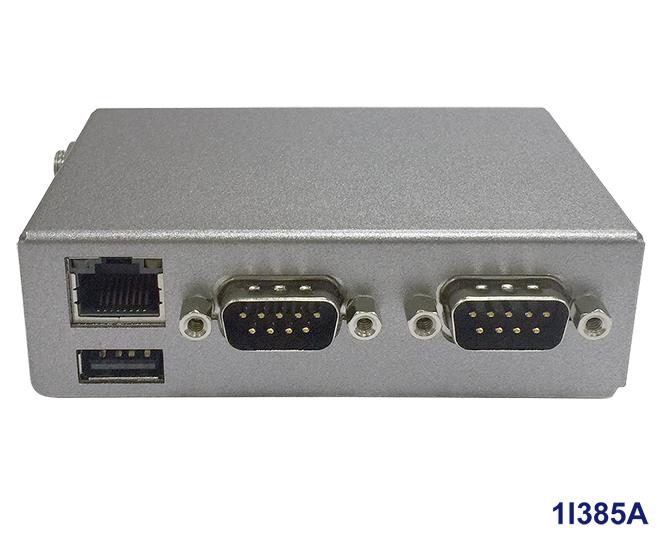

  • 1 x GbE, 2 x COM, VGA, 1 x USB
  • DC IN +5V

Watch Video

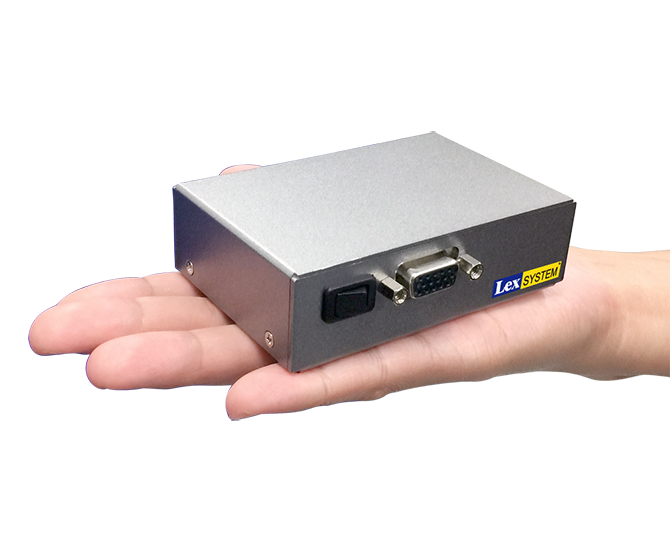

System Dimension(WxDxH) 92.4W x 61.1D x 28H mm
Weight(Incl.M/B) 155 g
CPU Intel®Bay Trail E3825 1.33 Ghz (Dual Core)
(Optional J1900 ; E3845)
Chipset Intel® Bay Trail SoC
Memory On Board DDR3L 2GB (4GB-Optional)
Storage mSATA
Expansion slots 1 x Full-size Mini PCIe (PCIe / USB / mSATA)
I/O portsNetwork 1 x Intel GbE
USB 1 x USB 2.0
Serial ports 1 x RS232, 1 x RS485
Display 1 x VGA
Optional Modules
& Accessor
Mini Card : GPS, 3G / 4G, WI-FI, Video Capture card

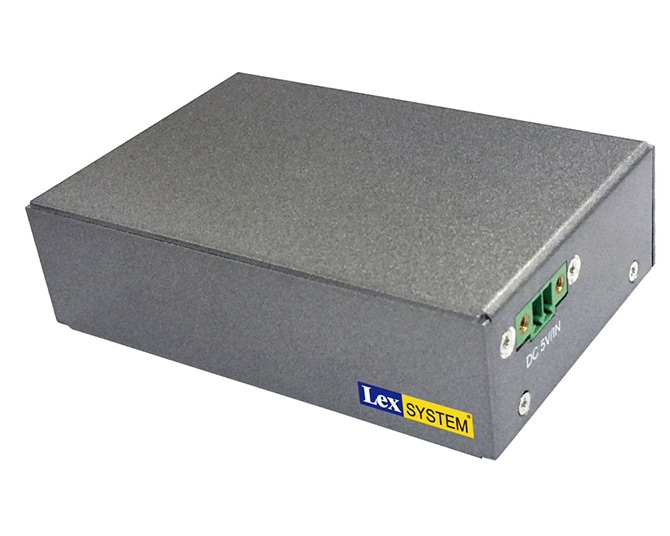

Power DC input : +5V
AC input : External adapter 100 / 240V
Operating Temp.
(100 % CPU usage)
-20°C to +70°C with mSATA
Storage Temp. -20°C to +70°C
Relative Humidity 95% @ 40°C, non-condensing
OS Support Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32/64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
