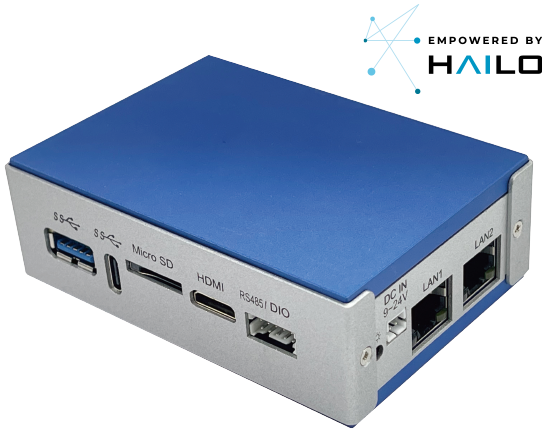

MINI-NXPHAI03
with NXP i.MX8M Plus + Hailo-8™ platform
Overview

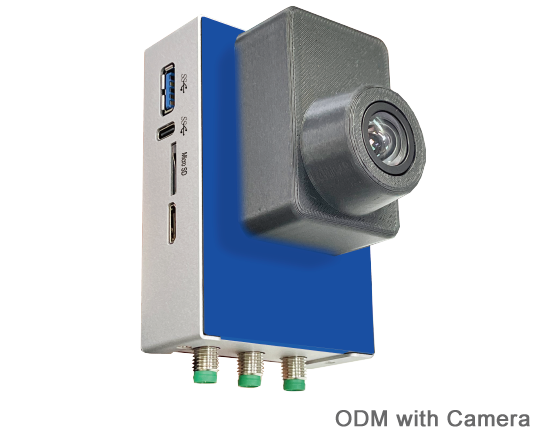

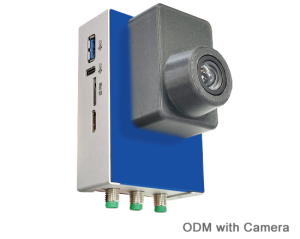

The Ultra Compact Mini-NXPHAI03 redefines embedded computing with the NXP i. MX8M Plus and Hailo-8™ AI processors, delivering up to 26 TOPS of AI computing power, making it ideal for edge AI applications. It features Mini HDMI® , 8GB LPDDR4 memory, 32–256GB eMMC, Micro SD, and an optional ODM feature for MIPI-CSI camera input. The Mini-NXPHAI03 is equipped with industrial-grade I/O interfaces, including 2 x GbE LAN , 1 x USB 3.0 Type A, 1 x USB 3.0 Type C, and 1 x RS485 with DI/DO, along with a broad 9–24V power input, ensuring compatibility with demanding environments. With its high-performance edge computing capabilities, the Mini-NXPHAI03 is an ideal solution for applications such as object detection, image recognition, and predictive maintenance.
Features
- NXP i.MX8M Plus (Quad core) ARM Cortex-A53
processor up to 1.8 GHz (NEX-8MP) - LPDDR4, 8GB (NEX-8MP)
- 32GB eMMC 5.1 (NEX-8MP)
- Mini HDMI® ; 2 x GbE ; 1 x USB 3.0 Type A, 1 x USB 3.0 Type C
- 1 x Micro SD, 1 x RS485, 2DI/2DO
| Model name | MINI-NXPHAI03 | |
|---|---|---|
| System Dimension(WxDxH) | 66W x 94D x 30.8H mm | |
| Weight(Incl.M/B) | 290g | |
| CPU |
NXP i.MX8M Plus (Quad core) ARM Cortex-A53 |
|
| GPU | Vivante GC700UL GPU (NEX-8MP) | |
| AI Accelerator | Onboard Hailo-8™ AI processor | |
| Memory | LPDDR4, 8GB (NEX-8MP) | |
| Storage | 32GB eMMC 5.1 (NEX-8MP), option 64/128/256GB 1 x Micro SD |
|
| Expansion slot I /O ports | Network | 2 x GbE (RJ45) |
| USB | 1 x USB 3.0 Type A, 1 x USB 3.0 Type C | |
| Serial ports | 1 x RS485 + 2DI/2DO | |
| Display | 1 x Mini HDMI® | |
| Power | DC input : Wide Range DC-IN 9-24V | |
| Operating Temp. (100 % CPU usage) |
-40°C to +65°C | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
