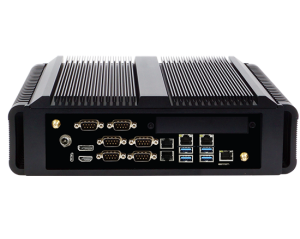

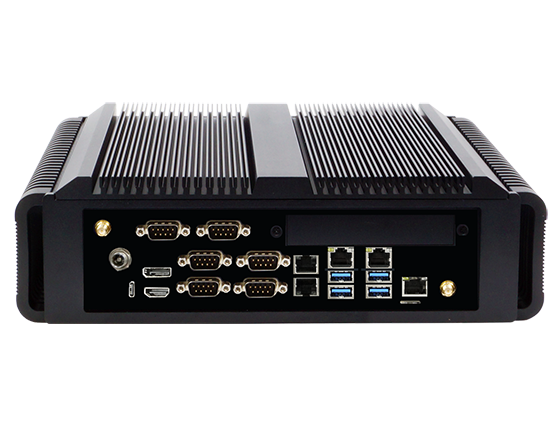

TWISTER(L)-CI870CW
Embedded Computer with
15th Gen Intel® Core™ Ultra Series processors
15th Gen Intel® Core™ Ultra Series processors
Features
- Intel® Core™ Ultra 7/5 Series (15th Gen Arrow Lake-S) processors
- Intel® Q870 Chipset
- 2 x DDRR SODIMM socket, Max. 64GB
- Multiple Independent display: HDMI®, DP, Type C DP ALT Mode
- 5 x Intel 2.5GbE LAN, 4 x USB 3.2, 6 x COM
- 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM
| MODEL | TWISTER(L)-CI870CW | |
|---|---|---|
| Motherboard | CI870CW | |
| System Dimension(WxDxH) | 300W x 262D x 85H mm | |
| Weight(Incl.M/B) | 5.6 kg | |
| Mounting | Wall Mount* VESA Mount* | |
| CPU | 15th Gen Intel® Arrow Lake-S Core™ Ultra CPU | |
| Chipset | Intel® Q870 | |
| Memory | 2 x DDR5 SODIMM, Max. 64GB | |
| Storage | HDD / SSD*, M.2 | |
| Expansion slots | 1 x M.2 M key Type 3080 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (USB 3.2 Gne 1x1 / USB 2.0 / SATA) (OEM to Type 3052) 1 x M.2 B key Type 3042 (PCIe x2 / USB 2.0) 1 x Nano SIM |
|
| I/O ports | Network | 5 x Intel 2.5 GbE |
| USB | 4 x USB 3.2 | |
| Serial ports | 6 x RS232 / 422 / 485 | |
| Display | 1 x DP, 1 x HDMI® 1 x Type C DP ALT Mode |
|
| Optional Modules & Accessor |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, USB, DI / DO, Video Input *SATA Kit, Wall / VESA Mount Kit*, Riser Card* |
|
| Power | DC input : Wide Range DC IN +9~36V | |
| Operating Temp. (100 % CPU usage) |
-20°C to +50°C (Core i7 8700T) -20°C to +40°C (Core i7 6700) *W / Industrial SSD |
|
| Storage Temp. | -20°C to +60°C | |
| Certification | CE / FCC class A | |
| OS Support | Windows 10 / 11 (64bit) Linux Ubuntu 22.04 / Kernel 5.15 |
|
