HAWK - 3I140DW
Intel® Core™ Ultra processors
(14th Gen Meteor Lake-U/H)
(15th Gen Arrow Lake-U/H)
Overview

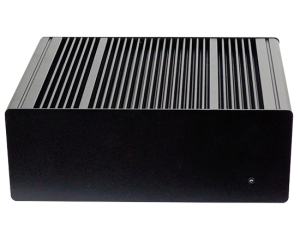

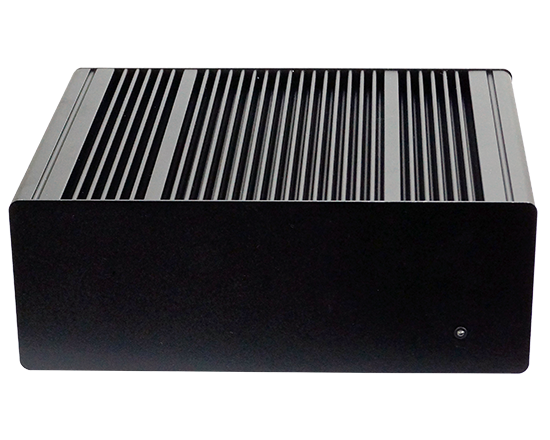

HAWK 3I140DW is a fanless embedded computer measuring 212.0W x 172.6D x 80H mm. Powered by Intel® Core™ Ultra 7/5 100 Series processors (formerly 14th Gen Meteor Lake-U/H, 15th Gen Arrow Lake-U/H), it comes with two DDR5 SO-DIMM slots supporting up to 64GB of memory and offers multiple display interfaces, including HDMI®, DP, and Type C DP ALT. Designed to deliver high-performance Edge AI solutions, the HAWK 3I140DW is equipped with versatile I/O, including 5 x 2.5Gb Ethernet ports, 3 x USB 3.2 ports, 1 x USB 2.0 port, 2 x COM ports, and 1 x PCIe slot for industrial communication and control.
Additionally, with M.2 slots supporting Wi-Fi 6 and 4G/5G modules, the system enables wide-area coverage and real-time data transmission for AIoT and edge gateway applications.
Features
- Intel® Core™ Ultra 7/5 processors
- 2 x DDR5 SODIMM (Max. 64GB)
- Multiple Independent display:
1 x HDMI®, 1 x DP, 1 x Type C DP ALT - 5 x Intel 2.5 GbE LAN, 3 x USB 3.2 Gen 1x1, 1 x USB 2.0
- 1 x M.2 M Key, 2 x M.2 B Key, 1 x Nano SIM, 1 x PCIe x16
- 2 x COM
- TPM 2.0, SMBus, I2C, I2S
- Wide Range DC-IN
| MODEL | HAWK-3I140DW | |
|---|---|---|
| System Dimension(WxDxH) | 220W x 172.6D x 80H mm | |
| Weight(Incl.M/B) | 3.6 kg | |
| Mounting | *System Mount, *VESA Mount | |
| CPU | Intel® Core™ Ultra 7/5 Series processors | |
| Chipset | 14th Gen Meteor Lake-U/H ; 15th Gen Arrow Lake-U/H | |
| Memory | 2 x DDR5 SODIMM, Max 64GB | |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) | |
| Expansion slots | 1 x M.2 M key Type 2280 (PCIe x 4), Support NVMe 1 x M.2 B key Type 3042 (USB 3.2 Gne 1x1 / USB 2.0) 1 x M.2 B key Type 3042 (PCIe x 2 / USB 2.0) 1 x Nano SIM 1 x PCIe x 16 golden finger with PCIe x 8, PCIe x 4 signal-LEX definition |
|

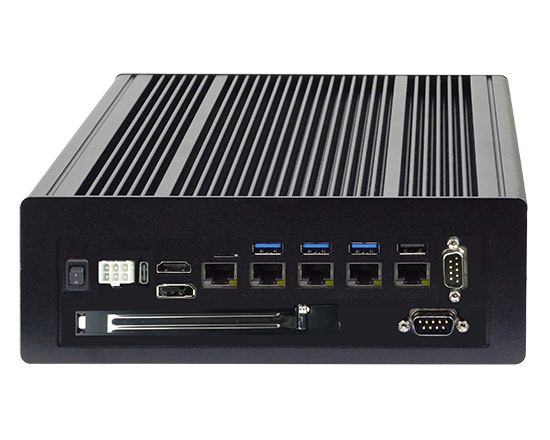

| I/O ports | Network | 5 x Intel 2.5GbE I226-IT (external) |
| USB | 3 x USB 3.2 Gen 1x1 (external), 1 x Type C USB 3.2 , 1 x USB 2.0 |
|
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x HDMI® ; 1 x DP ; 1 x Type C DP ALT | |
| Optional Modules & Accessory |
*VESA Mounting Kit *System Mounting Kit |
|
| Power | DC input : Wide Range DC IN +9~36V |
|
| Operating Temp. (100 % CPU usage) |
-40°C~70°C (under specific environmental & CPU power consumption conditions.) | |
| Storage Temp. | -40°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
|
